Kohler Command PRO CH260 Service Manual

1.6
Section 1
Safety and General Information
Dimensions in millimeters.
Inch equivalents shown in ( ).

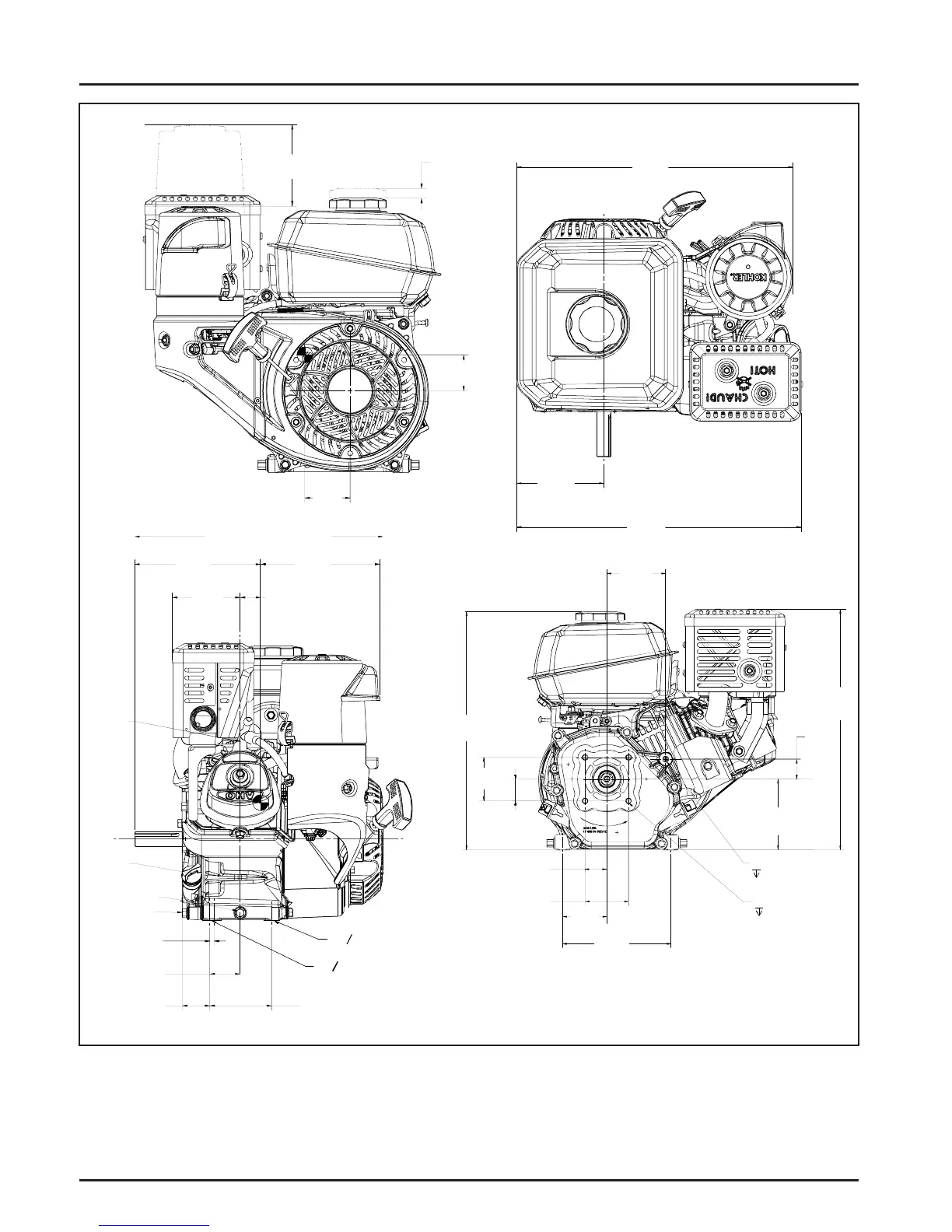

Figure 1-5. Typical Engine Dimensions-CH270.
373.53
(14.706)
SPARK
PLUG
118.03
(4.647)
384.87
(15.153)
47.11
(1.855)
12.50
(0.492)
GAS CAP
REMOVAL
AIR CLEANER
COVER REMOVAL
106.00
(4.173)
58.75
(2.313)
322.25
(12.687)
STRAIGHT PTO
163.28
(6.428)
155.03
(6.104)
26.48
(1.043)
88.23
(3.474)
OIL
FILL
OIL
DRAIN PLUG
MOUNTING
FACE
2X 0 10.00
(0.394)
2X 0 10.00 x 15.50 SLOT
(0.394 x 0.610)
79.99
(3.149)
35.70
(1.406)
39.33
(1.548)
5.50
(0.217)
162.00
(6.378)
66.00
(2.598)
65.08
(2.562)
32.55
(1.281)
88.00
(3.465)
360.57
(14.196)
30.00
(1.181)
106.00
(4.173)
M8 x 1.25-6H
THRU
4X M8 x 1.25-6H
15.00 (0.591)
356.46
(14.034)
65.10
(2.563)
32.55
(1.281)
