11.16
Section 11
Reassembly

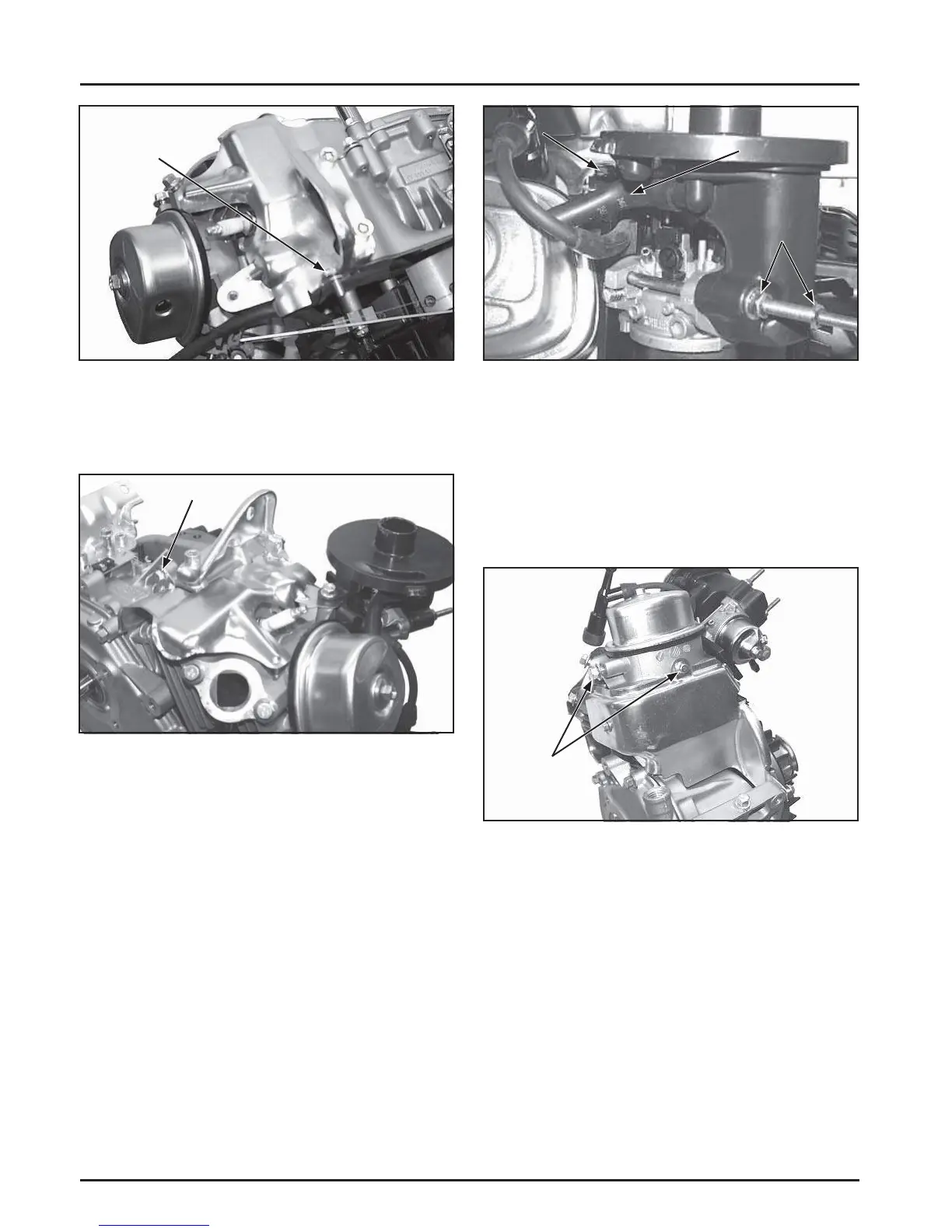

Figure 11-60. Position Upper Shield.
2. Install one hex fl ange screw in the rear of top air
shield, but do not tighten at this time. See Figure
11-61.
Breather
Hose
Hex Nuts
Hex Screw
Position Shield
on Stud
Figure 11-61. Upper Shield Hardware.
3. Install a new carburetor to air cleaner base gasket
onto the carburetor mounting studs followed by
the air cleaner base. A ach the breather hose onto
the air cleaner base connection port. Connect the
opposite end of the breather hose to the valve
cover. See Figure 11-62.
Hex Screw
Figure 11-62. Air Cleaner Base Installation.
4. Secure the base with the two hex fl ange nuts on
the mounting studs and one hex fl ange screw
through the top heat shield into the crankcase
housing. Torque hardware to 8 N·m (71 in. lb.).
See Figure 11-62.
5. Install the lower heat shield and secure with two
hex screws. See Figure 11-63.
Figure 11-63. Cylinder Heat Shield Mounting Bolt
Location.
CH395, CH440
1. Install the upper shield on the cylinder and
secure with two hex fl ange screws. Torque to
8 N·m (71 in. lb.). See Figure 11-64.
Hex Screws
To Next Page
