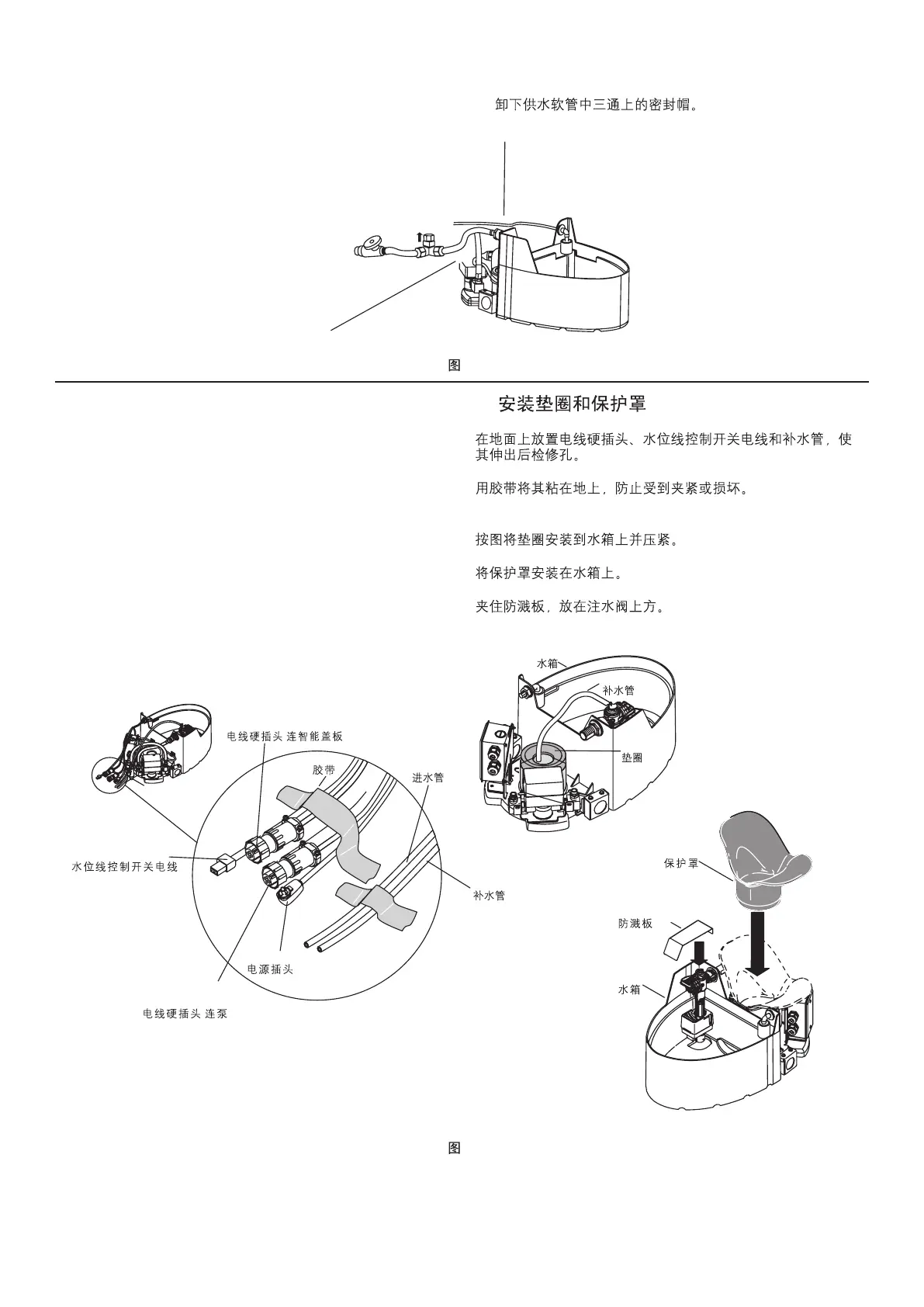

J. Remove cap on Tee Connector of flexible hose.
J.
Fig.#15
15
K. Install Gasket and Collar
Place the wiring harness plug, level switch wire, and refill
tube on the floor so they extend out the rear access opening.
Tape them to the floor so they will not be pinched or
damaged.
Install the collar onto the tank.
Clip the spray shield into place over the fill valve.
Fix the gasket to the tank and press tight.
K.
Fig.#16
16
Wiring Harness Plug
(Connected to Bidet Seat)
()
Refill Tube
Inlet Tube
Level Switch Wire
Wiring Harness Plug
(Connected to Pump)
()
Electrical Plug
Collar
Spray Shield
Tank
-10-
Tape
Tank
Refill Tube
Gasket
1144585-T01-A
