-11-

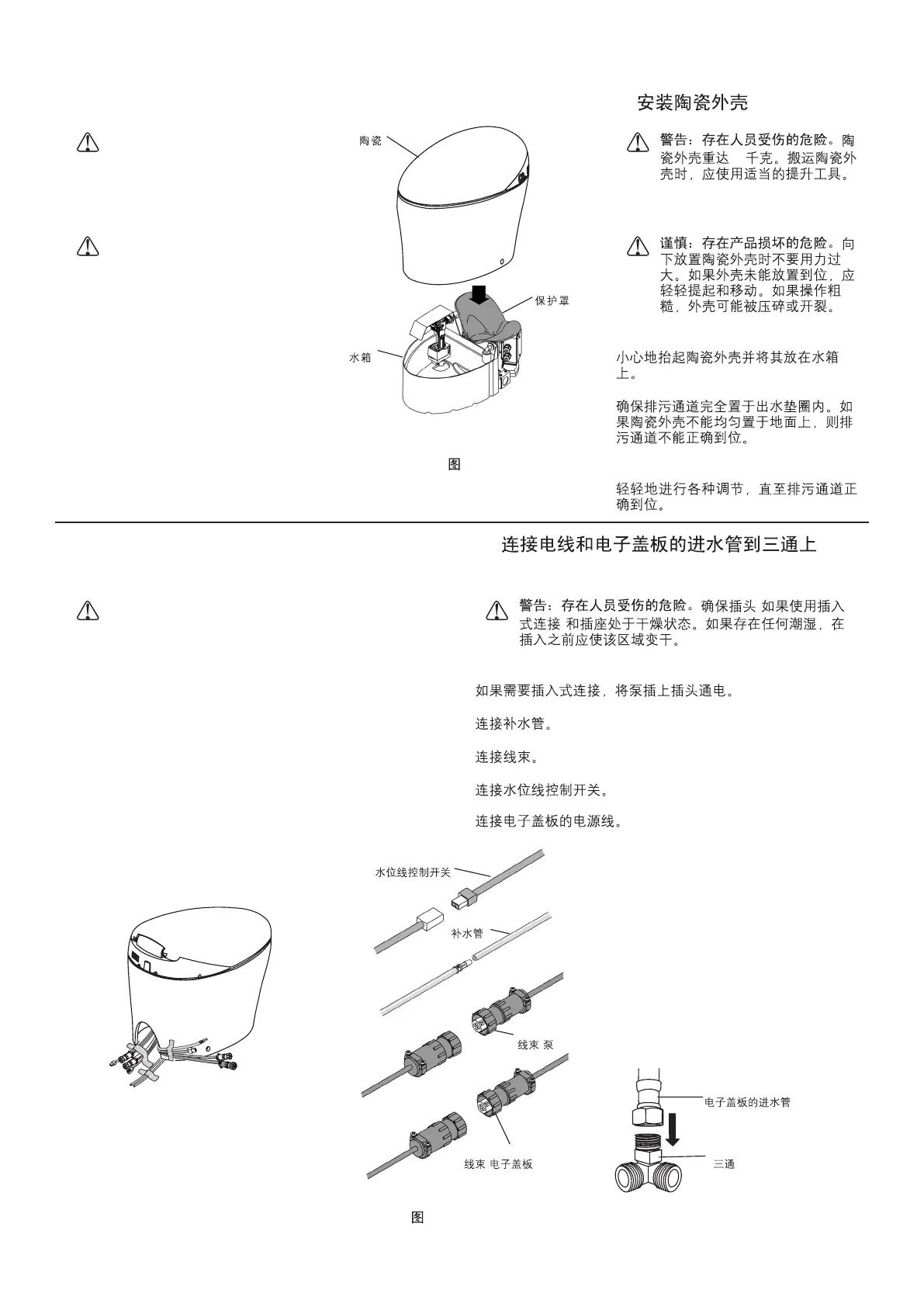

M. Connect the Wiring flexible hose of
bidet seat to Tee Connector
WARNING: Risk of personal injury. Make sure the
plug (if plug-in connection is used) and receptacle are
dry. If any moisture is present, allow the area to dry
before plugging the unit in.
If plug-in connection is desired, plug the pump in.
Connect the refill tube.
Connect the wiring harness.
Connect the level switch.
Plug the bidet seat in.
M.
(
)
Level Switch
Refill Tube
Wiring Harness (Pump)
()
Wiring Harness (Bidet Seat)
()
Fig.#18
18
Flexible Hose of Bidet Seat
Tee Connector
T
L. Install the Vitreous Shell
WARNING: Risk of personal
injury.
CAUTION: Risk of product
damage.
The vitreous shell
weighs 35 kg. Use proper lifting
technique when handling the
vitreous shell.
Do not set the shell
down hard. Gently lift and move
the shell if it is not placed
correctly. If handled harshly,
the shell may chip or break.
Carefully pick up the vitreous shell and
place it over the tank.
Make sure the trapway seats fully in
the outlet gasket. If the vitreous shell
does not sit evenly on the floor, the
trapway is not properly seated.
Make all adjustments gently until the
trapway is properly seated.
L.
35
Vitreous
Collar
Tank
Fig.#17
17
1144585-T01-A
To Next Page
