-13-
NOTE:
NOTE:
If the wall for installation is made of special material
(such as wood board, density board and etc.), suitable fixing
methods shall be adopted.
The place to install the remote controller shall not be
easily splashed by water.
Choose a mounting location for the remote holder that is
easily accessible while sitting on the seat.
Drilling two holes with depth larger than 45mm on the wall by
drill with a diameter of 6mm in accordance with the position of
screw holes on the remote control holder. Installing the
expansion tube into the holes.
Placing the installation holder on the fixing hole.
Peeling off the release paper of double-sided tape at the back
of holder.
Fixing the holder with screws and install it.
Installing the screw covers on the screws.
Placing the remote controller on the holder.
6mm
45mm
Fig.#23
23
Fig.#22
22
45mm
Expansion Tube
Remote Holder
Double-Sided Tape
Expansion Screw
Screw Cover
Remote Controller

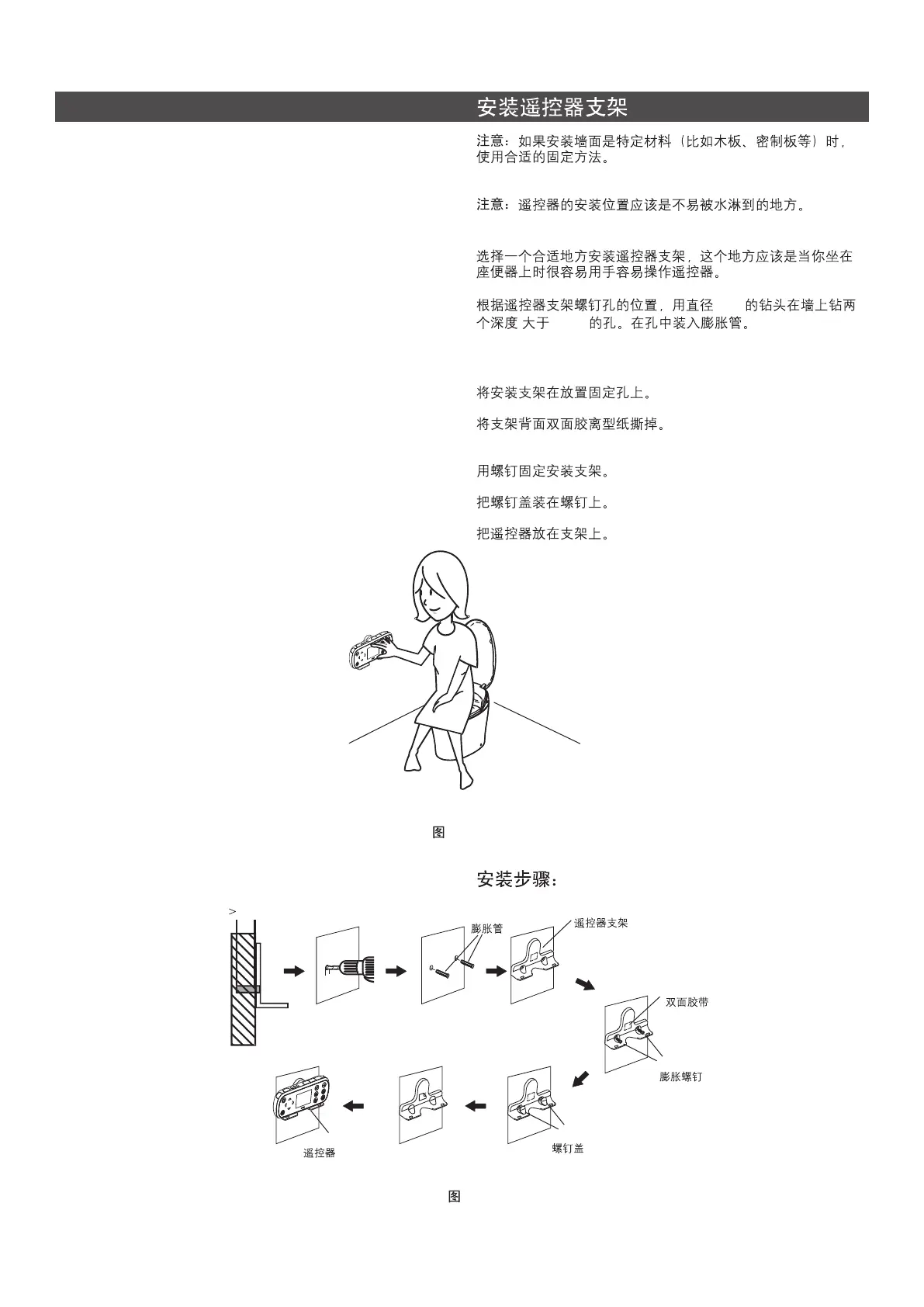

INSTALLATION OF REMOTE CONTROLLER HOLDERINSTALLATION OF REMOTE CONTROLLER HOLDER
6m m
Installation Steps:
1144585-T01-A
