SERVICE PROCEDURE MAINTENANCE
4-22
NOTICE
When cleaning the dust cup, do not remove evacuator
valve(6).
4. Clean the inside of the air cleaner body and dust cup.
5. Remove inner element(5), then install a new inner element immediately.
6. Set new outer element(4) and install dust cup(3), then secure them with clips(2).
CAUTION

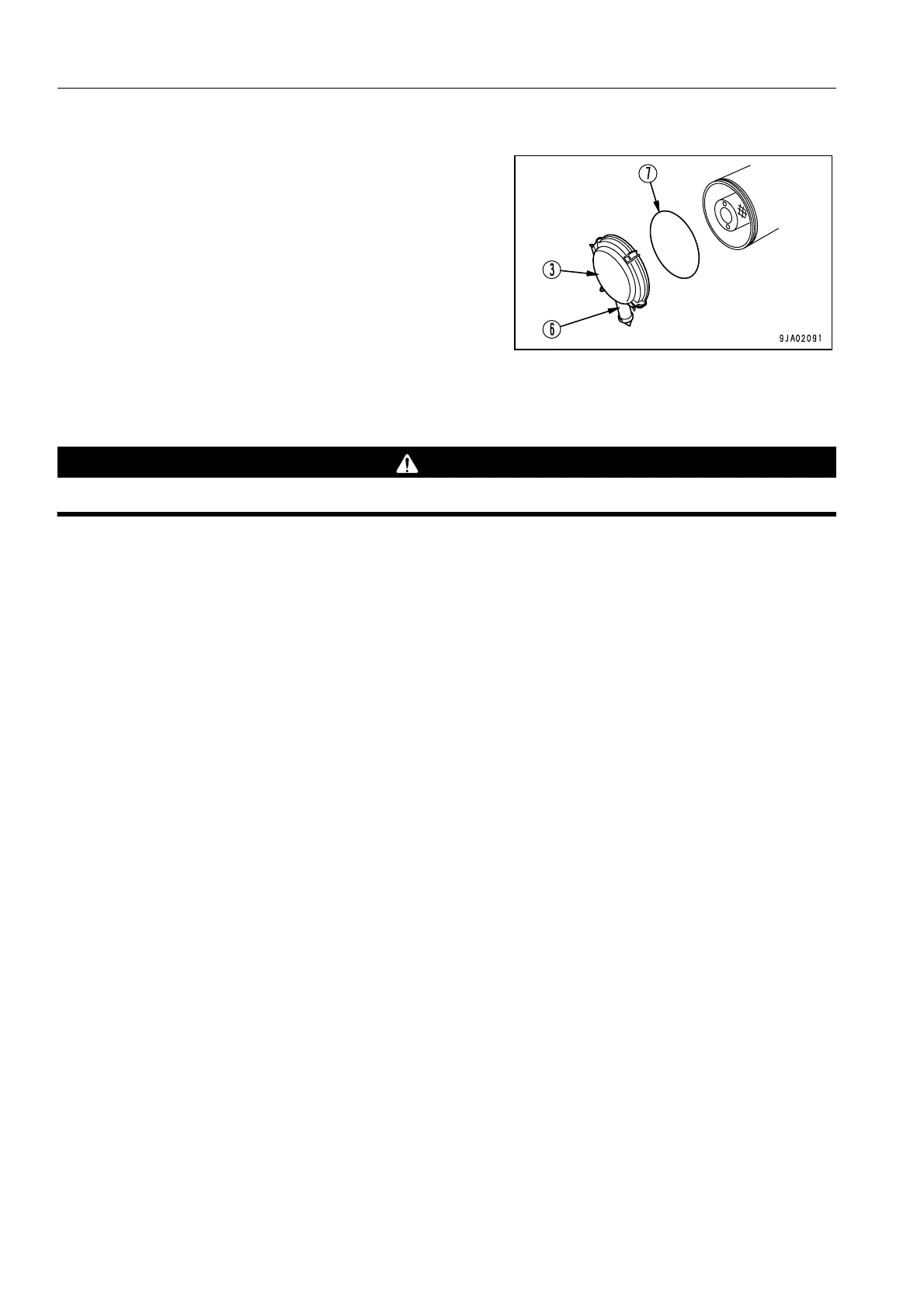

When installing the dust cup, check O-ring(7). If the O-ring has any defect, replace it.
7. Return the red piston in the dust indicator(1) to its original position.
8. Close the left engine side cover.
