2.

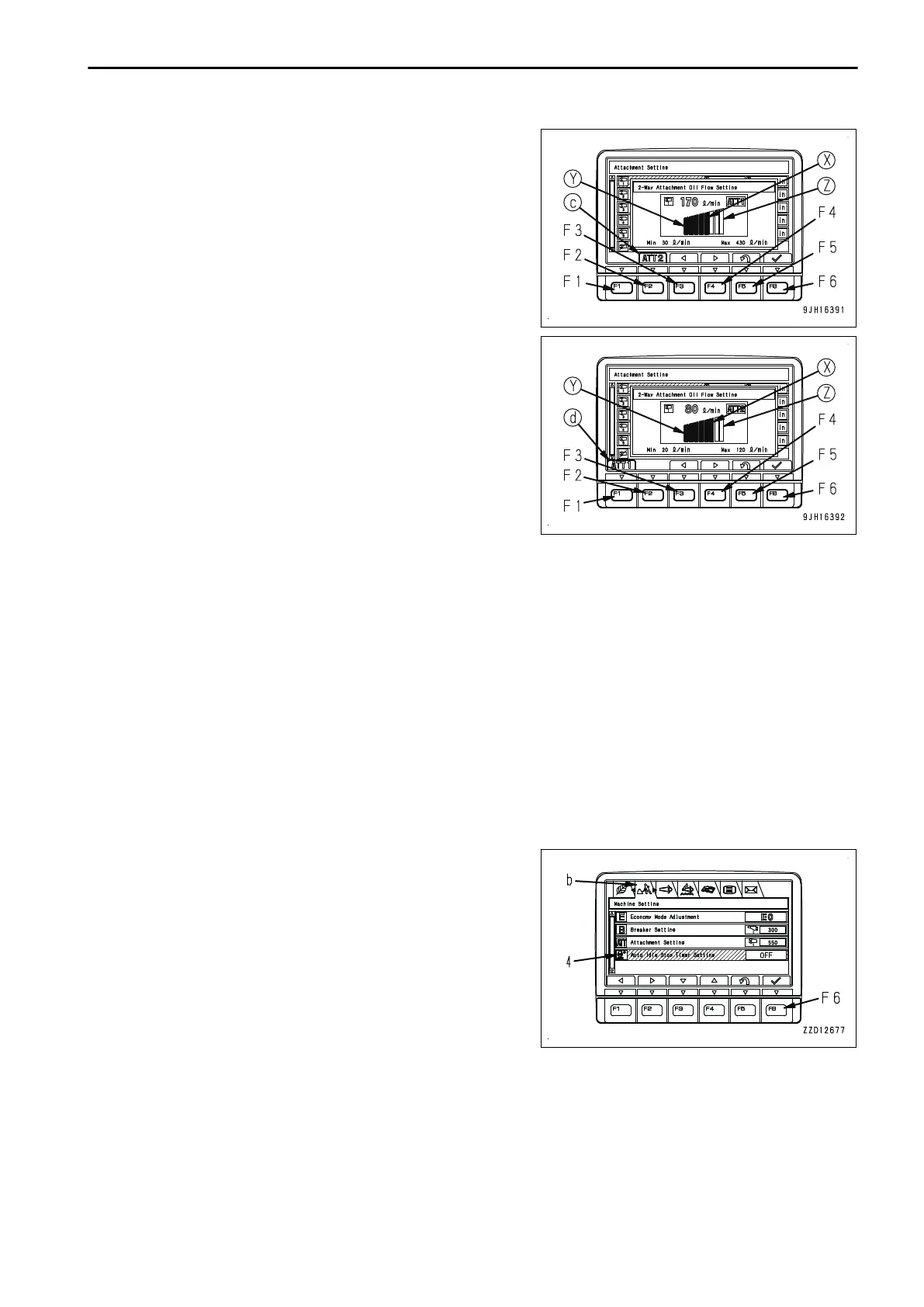

The attachment oil flow setting screen is displayed.
On the attachment oil flow setting screen, it is possible to
perform the following operations with switches F1 to F6.
F1: Switches the display from attachment 2 oil flow setting
screen to attachment 1 oil flow setting screen.
F2: Switches the display from attachment 1 oil flow setting
screen to attachment 2 oil flow setting screen.
F3: Decreases the flow by 1 scale.
F4: Increases the flow by 1 scale.
F5: Returns to the attachment setting screen without
changing the oil flow.
F6: Accepts the oil flow setting and returns to the attach-
ment setting screen.
(X): Present oil flow setting
(Y): Min. adjusted oil flow
(Z): Max. adjusted oil flow
• The guidance icon ATT2 (c) is displayed on the at-
tachment 1 oil flow setting screen, and the guidance
icon ATT1 (d) is displayed on the attachment 2 oil flow
setting screen.
• It is not possible to change the oil flow for No Attachment setting.
AUTO IDLE STOP TIMER SETTING
The auto idle stop function stops the engine automatically when the engine is operated continuously at idle with
the lock lever in LOCK position for a set time.
The auto idle stop function operates only when the following conditions are satisfied.
• The engine is running normally.
• The lock lever is in LOCK position.
• The engine coolant and hydraulic oil are not overheating.
• The engine is not in warm-up operation.
• The machine is not in L mode.
You can set the time to operate the auto idle stop function on the auto idle stop timer setting screen.
1.
Select “Auto Idle Stop Timer Setting” (4) on the “Machine
Setting menu” (b) screen, and then press switch F6.
OPERATION EXPLANATION OF COMPONENTS
3-73
