12.

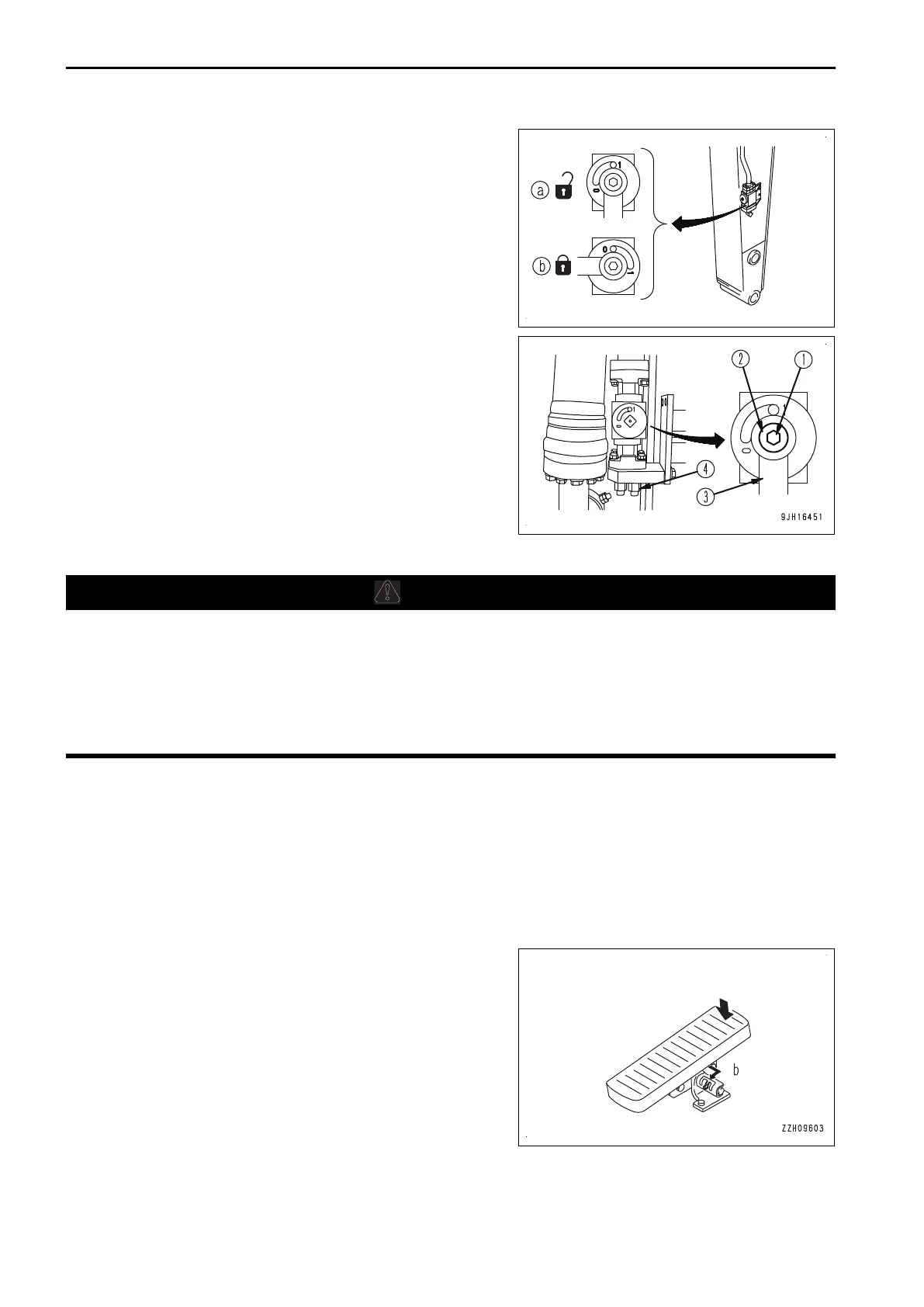

Set the rotor of the stop valve installed to the inlet port on
the side face of the arm and the outlet piping to FREE po-
sition (a).
(a) FREE: Hydraulic oil flows (direction of arrow is parallel
to longitudinal direction of arm)
(b) LOCK: Hydraulic oil does not flow (direction of arrow is
at right angle to longitudinal direction of arm)
When setting FREE or LOCK position of the stop valve, re-
move bolt (1), and washer (2), fit lever (3) and refit bolt (1)
and washer (2), rotate valve to furthest position clockwise
or anti-clockwise. After setting, remove lever (3) and refit
bolt (1) and washer (2).
13.
After installing the attachment, check the oil level in the hy-
draulic tank (G).
For detail, see “METHOD FOR CHECKING OIL LEVEL IN
HYDRAULIC TANK, ADDING OIL (3-147)”.
METHOD FOR OPERATING ATTACHMENT
WARNING
If the travel levers or travel pedals are operated when the engine speed is decreased by the auto-decel-
eration function, the engine speed will suddenly increase. Be careful.
If you perform operations with your foot on the pedal, the attachment may suddenly move if you de-
press the pedal by mistake, and this may lead to serious personal injury or death. Do not rest your foot
on the pedal except when you operate the pedal.
When the attachment is not used, set the lock pin of the pedal to LOCK position to prevent the pedal
from being operated.
For the change of the flow setting for the breaker mode and attachment mode for the crusher, etc., see “MA-
CHINE SETTINGS”.
METHOD FOR OPERATING BREAKER
NOTICE
When performing breaker operations, use the breaker mode. If the breaker mode is not used, the break-
er may be damaged.
1.
Set the working mode to B mode
2.
Set only the front portion of the lock pin to FREE position
(b).
3.
Depress the front portion of the pedal.
The breaker operates.
