(19) 2nd attachment proportional control switch (if
equipped)
(20) Breaker switch
(21) Additional lamps switch (if equipped)
(22) Lower wiper switch (if equipped)
(23) Quick coupler switch

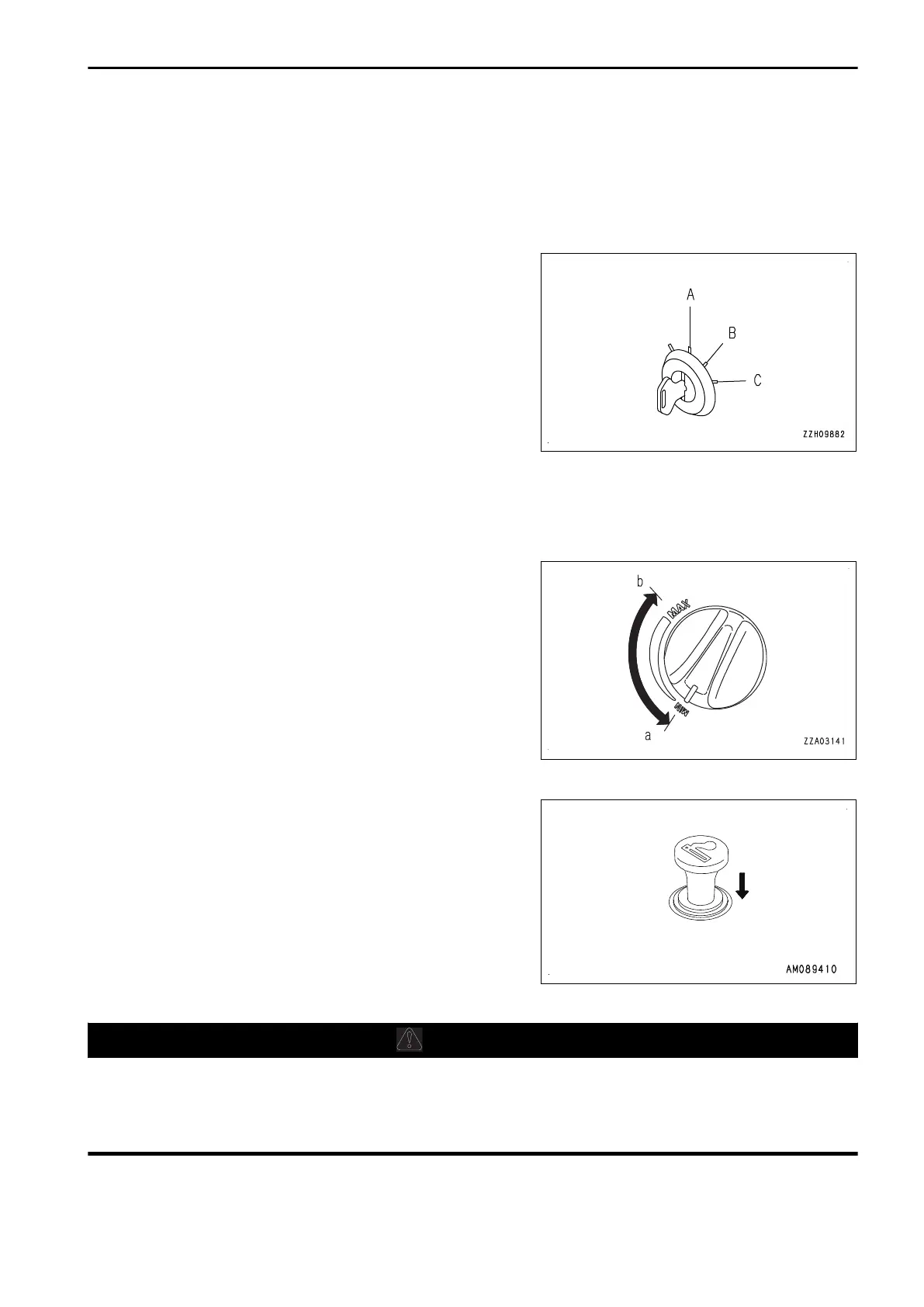

STARTING SWITCH
Starting switch is used to start or stop the engine.
(A): OFF position
The key can be inserted or withdrawn. Switches for the electri-
cal system (except room lamp) are all turned off, and the en-
gine is stopped.
(B): ON position
Electric current flows through the charging and lamp circuits.
Keep the switch at this position while the engine is running.
(C): START position
This is the position to start the engine. Keep the key at this position during cranking and release it immediately
after the engine starts.
The key will automatically return to ON position (B).
FUEL CONTROL DIAL
Fuel control dial is used to control the engine speed and out-
put.
(a) Low idle (MIN)
The position where the dial is turned fully to the left.
(b) High idle (MAX)
The position where the dial is turned fully to the right.
CIGARETTE LIGHTER
The cigarette lighter is used to light cigarettes.
When the cigarette lighter is pushed in, it will return to its origi-
nal position after a few seconds, so pull it out to use it.
If the cigarette lighter is removed, the socket can be used as an
85 W (24 V x 3.5 A) power source.
NOTICE
This cigarette lighter is for 24 V. Do not use it as a power
supply for 12 V equipment.
SWING LOCK SWITCH
WARNING
• When not using the swing operation, e.g. when traveling, put the swing lock switch to ON position.
• On slopes, even when the swing lock switch is at ON position, the weight of the work equipment
may cause the upper structure to swing if the swing control lever is operated in the downhill direc-
tion.
OPERATION EXPLANATION OF COMPONENTS
3-89
