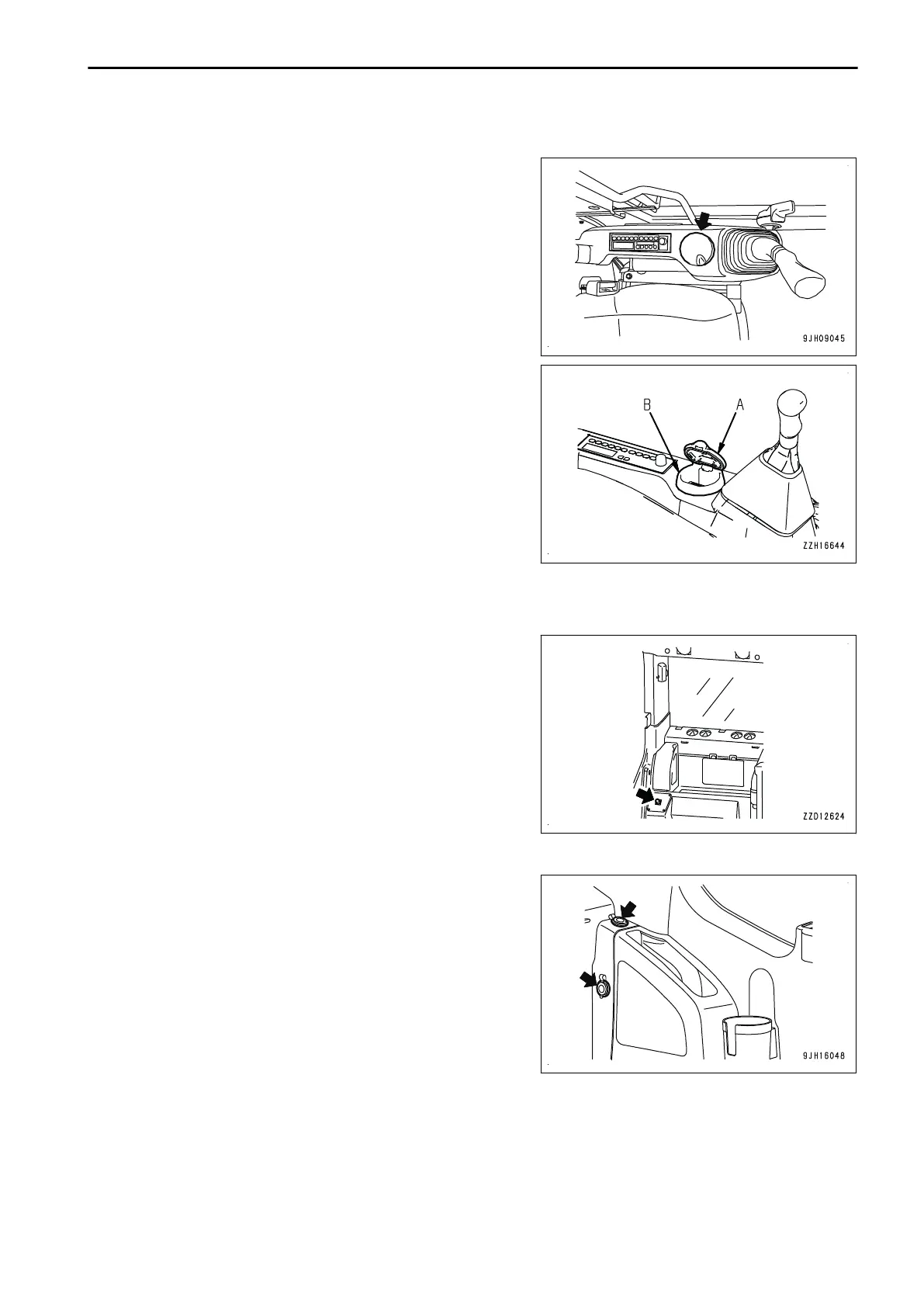

ASHTRAY
This is on top of the console box on the left side of the opera-
tor's seat.
Always extinguish your cigarette before putting it in the ashtray
and be sure to close the lid.
NOTICE
While removing the ashtray, if it is stuck in the console
cover and hard to be removed, open lid (A) of ashtray, then
hold the ashtray body (B) and twist it to remove.
If you hold lid (A) of ashtray and twist it, the ashtray may
break.
POWER SUPPLY OUTLET
24 V power source
NOTICE
Do not use it as a power supply for 12 V equipment.
This will cause failure of the equipment.
When cigarette lighter is removed, the lighter socket can be
used as a power source.
The capacity of the cigarette lighter is 85 W (24 V x 3.5 A).
REMARK
Use 24 V power source while engine is running.
12 V power source
This power source can be used up to a capacity of 144 W (12
V x 12 A).
When it is used at 1 place: 144 W (12 V x 12 A)
When it is used at 2 places: 144 W in total
REMARK
Use 12 V power source while engine is running.
FUSE
NOTICE
Before replacing a fuse, be sure to turn the starting switch to OFF position, then turn the battery discon-
nect switch to OFF position.
OPERATION EXPLANATION OF COMPONENTS
3-107
