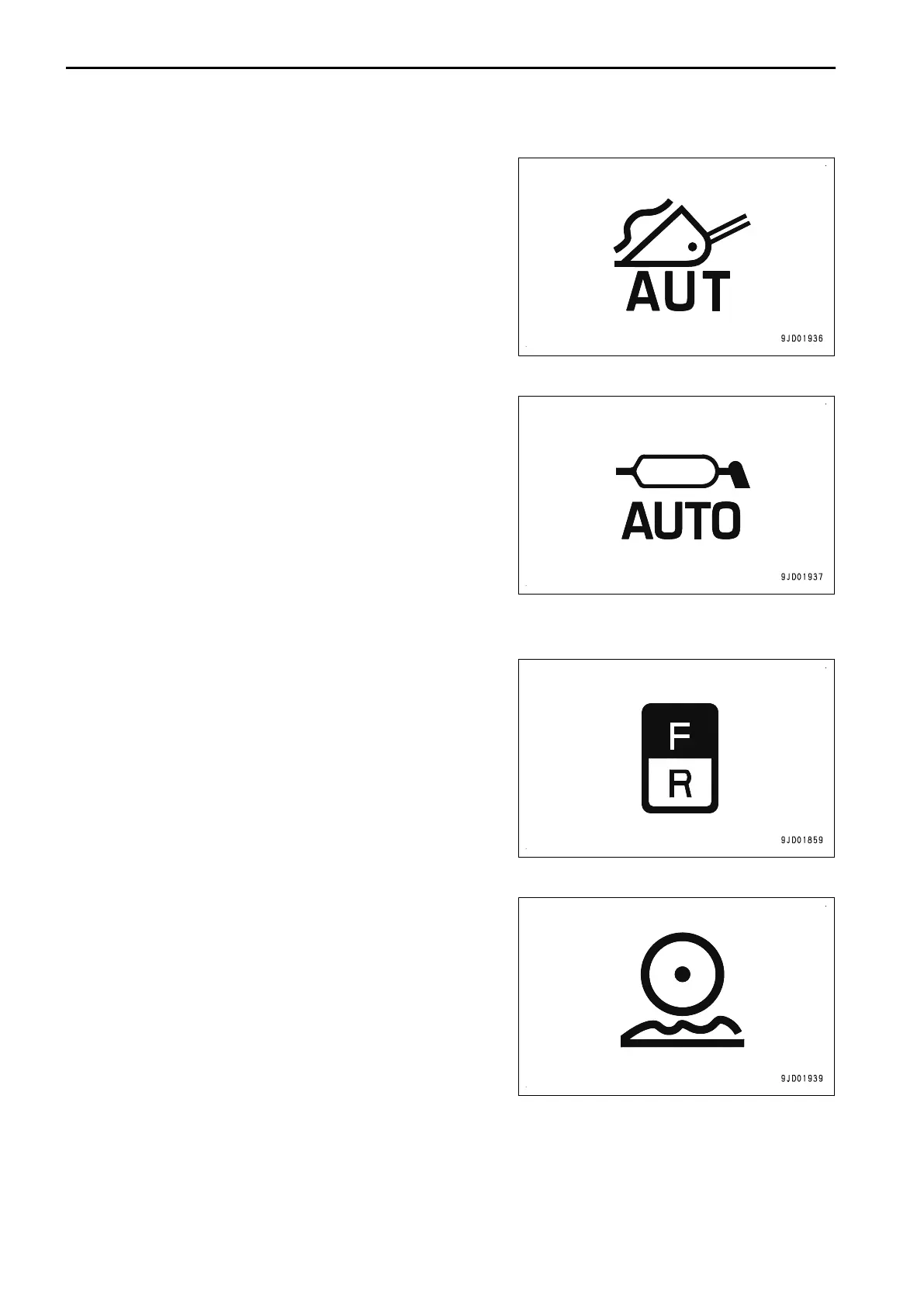

AUTO-DIGGING PILOT LAMP
The auto-digging pilot
lamp lights up while the auto-digging
system is working.
AUTO-GREASING PILOT LAMP
The auto-greasing pilot lamp lights up while the auto-greasing
system is working.
DIRECTIONAL SELECTION PILOT LAMP
(if equipped)
The directional selection pilot lamp lights up in green when the
directional selector enable switch on R.H. switch panel is effec-
tive.
It lights up in yellow when the directional selector switch is op-
erated wrongly.
This pops up when the directional selector enable switch on
R.H. switch panel is turned on.
ECSS PILOT LAMP
The ECSS pilot lamp lights up when ECSS is effective.
When ECSS switch is turned ON, the display pops up.
For detail, see “ECSS SWITCH (3-101)”.
EXPLANATION OF COMPONENTS OPERATION
3-34
