4-6 bizhub 4750i/4050i
Name of each component (main unit)
4
4.2

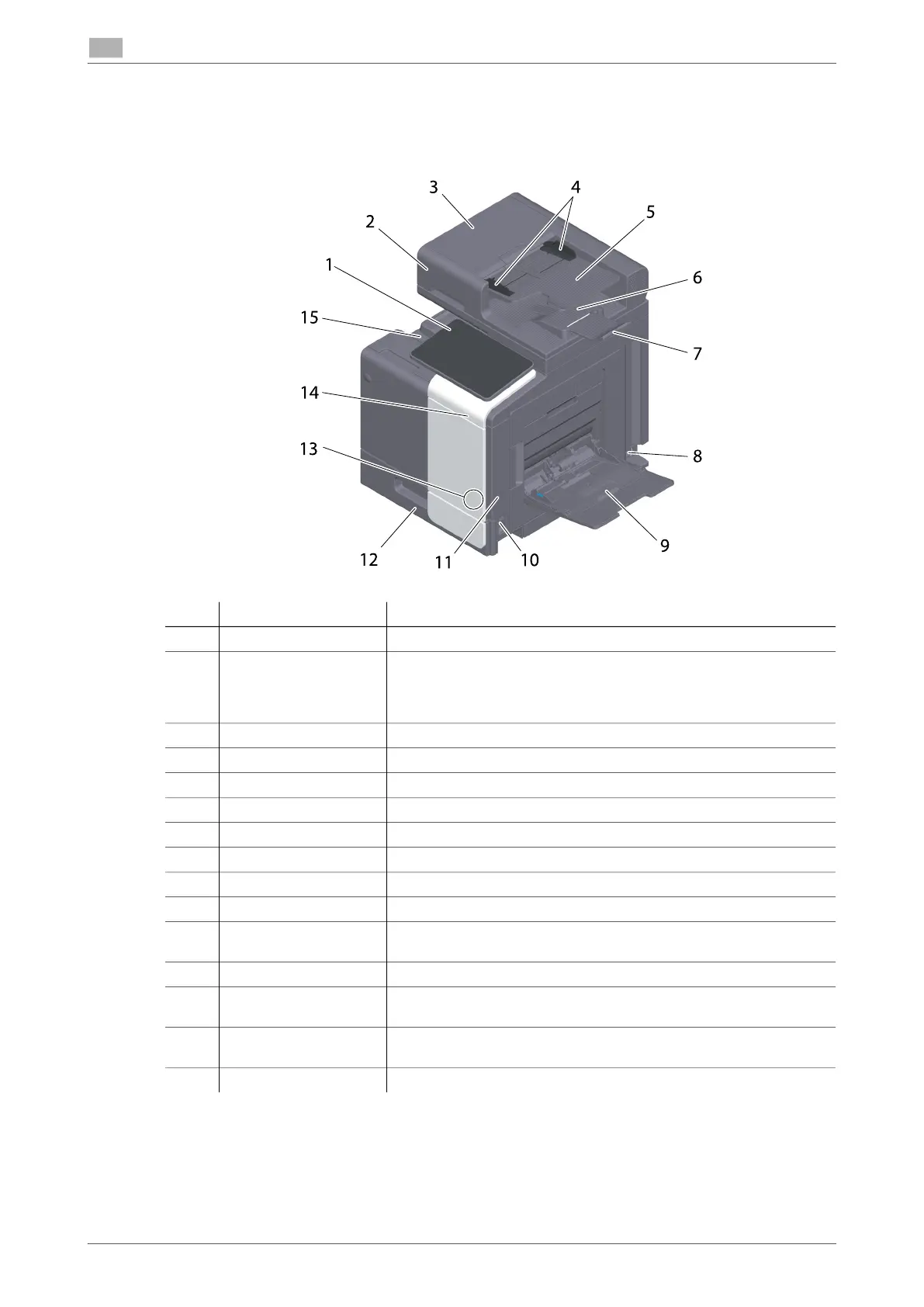

4.2 Name of each component (main unit)
Front/side
No. Name Description
1 Control Panel Used to configure various settings in this machine.
2 Automatic Document
Feeder
Automatically feeds and scans originals by page. This unit scans a 2-
sided original by only requiring the paper be fed into the machine once
without reversing.
This unit is referred to as ADF in the manual.
3 ADF Feed Cover Open this cover when clearing a paper jam in the ADF.
4 Lateral Guide Adjust this guide along the width of the original.
5 Original Tray Load the original face up in this tray.
6 Original Output Tray The scanned original is fed out onto this tray.
7 Document Stopper Used to prevent the output original from falling.
8 Power Connection Connect the power cord to this inlet to supply power to this machine.
9 Bypass Tray Used to print data on non-standard size paper or envelopes.
10 Main Power Switch Press this switch to turn the machine on or off.
11 USB Port (Type A)
USB2.0/1.1
Used to connect a USB flash drive to this machine.
12 Tray 1 Allows you to load up to 500 sheets.
13 Mobile Touch Area This area is used to associate this machine with an NFC-compatible
Android terminal or an iOS terminal compatible with Bluetooth LE.
14 Data Indicator Flashes or lights up to indicate the data receiving status on this ma-
chine.
15 Output Tray Outputs printed pages.
To Next Page
