To connect the VM-214DT, as illustrated in the example in Figure 3:
1. Connect the HDMI source (for example, a Blu-ray disk player) to the IN 1 (HDMI)
connector.
2. Connect the HDBT source, (for example, the WP-20) to the Input 2 HDBT connector.
3. Connect the Output 1 HDMI connector to an HDMI acceptor, (for example, an LCD TV
with speakers).
4. Connect the four Output HDBT connectors to up to four HDBT receivers, (for example,
the TP-588D or the TP-580RXR).
5. Connect the Audio Out 3.5mm mini jack to an audio acceptor (for example, active
speakers).
6. Connect an IR emitter to the IR 3.5mm mini jack.
7. Connect the serial RS-232 Data 3-pin terminal block to a device to be controlled, (for
example, the LCD TV connected in step 3).
8. Connect a PC via RS-232 to the RS-232 Control 3-pin terminal block, (see Section
Connecting to the VM-214DT via RS-232 on page 7).
9. Connect the VM-214DT to the mains electricity using the mains cord provided.
Connecting to the VM-214DT via RS-232
You can connect to the VM-214DT via an RS-232 connection using, for example, a PC.
To connect to the VM-214DT via RS-232:
• Connect the 3-pin terminal block serial port on the VM-214DT to the RS-232 9-pin D-sub
port on your PC, (pin Tx to pin 2, pin Rx to pin 3, and G to pin 5)

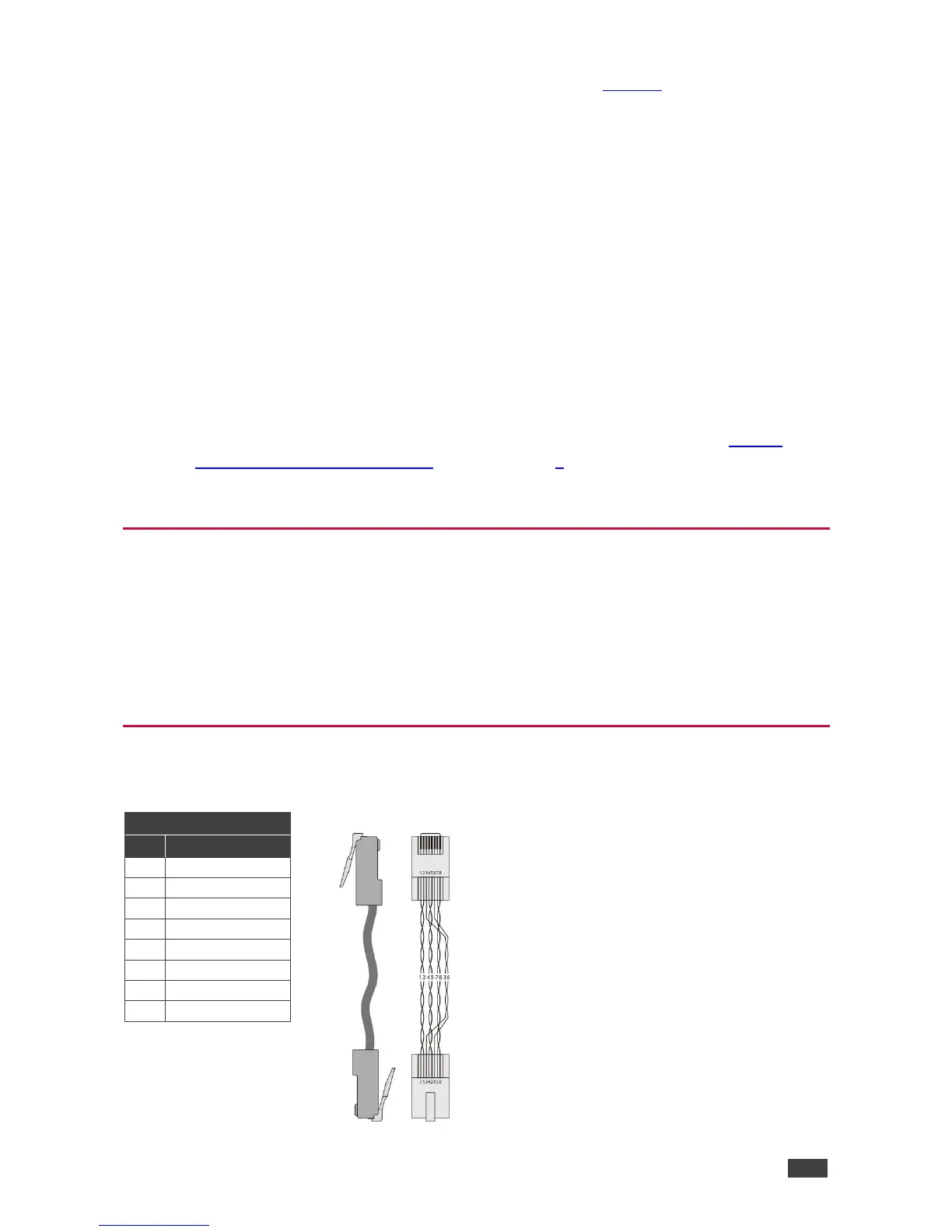

Wiring the RJ-45 Connectors
This section defines the TP pinout, using a straight pin-to-pin cable with RJ-45 connectors.
