KTM 1050 Adventure User Manual

16 ELECTRICAL SYSTEM 157
C00887-10

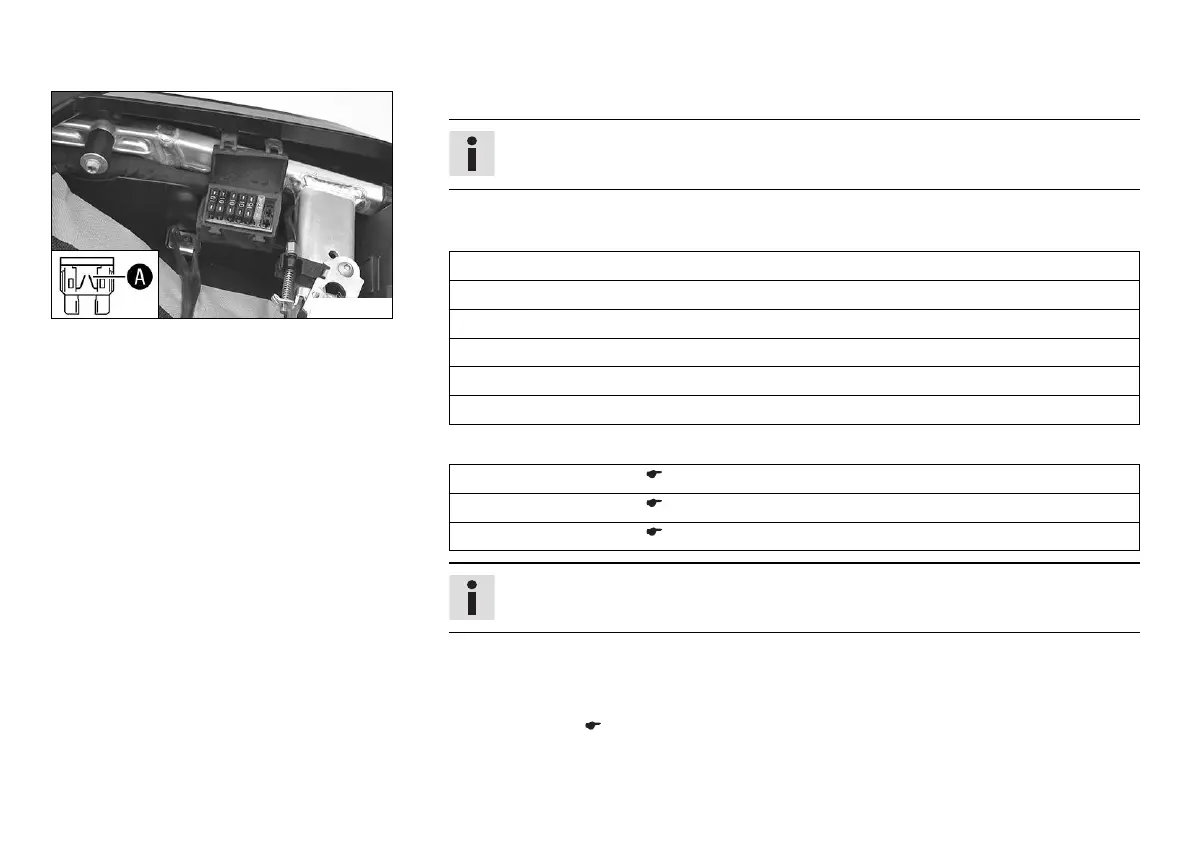

– Check the fuses.
Info
A defective fuse is indicated by a burned-out fuse wire

.
– Remove the defective fuse.
Guideline
Fuses res - 10 A - spare fuses
Fuse 1 - 10 A - power supply for control units and components
Fuse 2 - 10 A - optional auxiliary equipment
Fuse 3 - 15 A - ABS hydraulic unit
Fuse 4 - 25 A - ABS return pump
Fuse 5 - not assigned
– Use spare fuses with the correct rating only.
Fuse (58011109110) ( p. 199)
Fuse (58011109115) ( p. 199)
Fuse (58011109125) ( p. 200)
Tip
Insert a spare fuse so that it is available if needed.
– Check that the power consumer is functioning properly.
– Close the fuse box cover.
Finishing work
– Mount the seat. ( p. 97)

KTM 1050 Adventure Specifications

General

Displacement	1050 cc
Transmission	6-speed
Fuel Tank Capacity	23 liters
Seat Height	850 mm
Bore x Stroke	103 mm x 63 mm
Fuel System	Electronic Fuel Injection
Cooling System	Liquid cooled
ABS	Bosch 9M+ two-channel ABS
Compression Ratio	12.5:1
Starter	Electric
Engine Type	2-cylinder, 4-stroke
Power	95 hp
Torque	107 Nm
Front Suspension	WP USD, 43 mm
Rear Suspension	WP monoshock
Front Brake	4-piston calipers
Rear Brake	267 mm disc, 2-piston caliper
Frame	Chromium-Molybdenum steel trellis
Front Wheel	19 inch
Rear Wheel	17 inch
Dry Weight	212 kg (467 lbs)
