13 SERVICE WORK ON THE CHASSIS 101

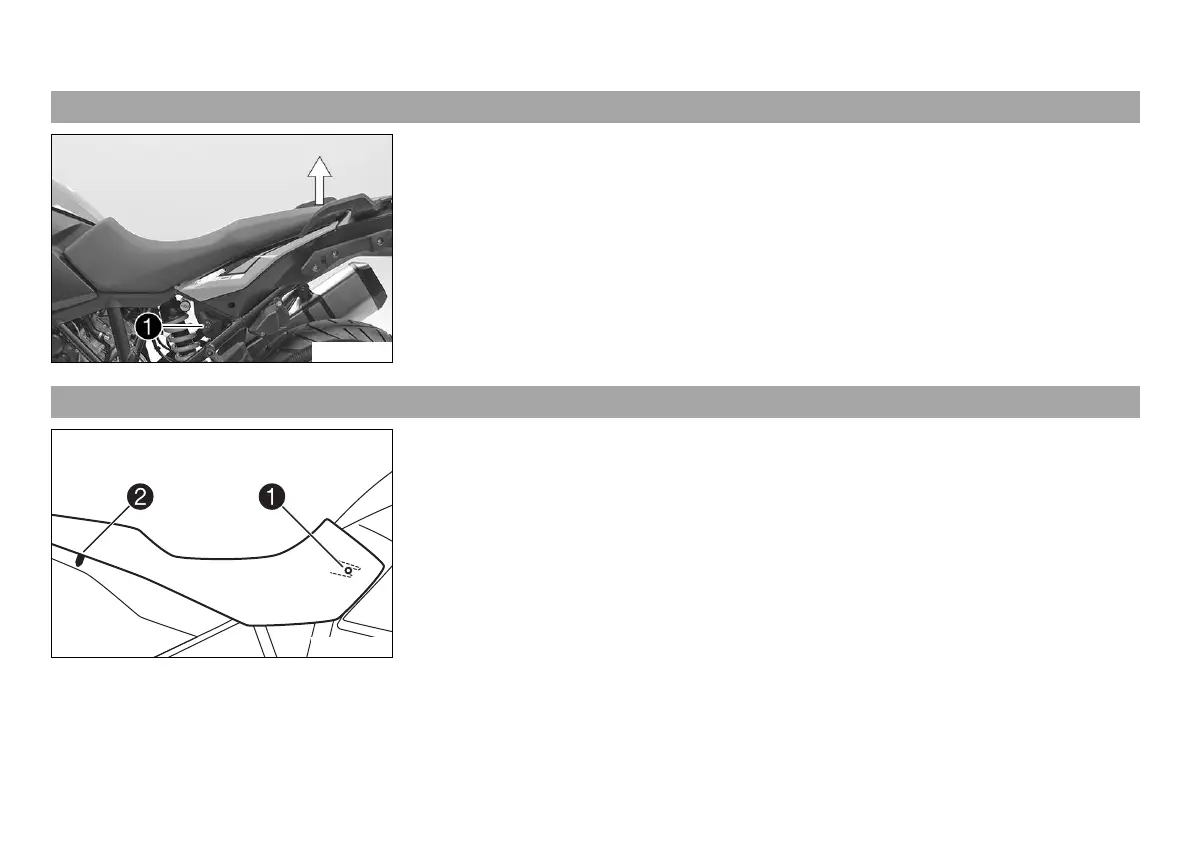

13.7 Removing the seat
F00651-10
–
Insert the ignition key in the seat lock
1
and turn it clockwise by 45°.
– Raise the rear of the seat, pull the seat back, and lift it off.
– Remove the ignition key.
13.8 Mounting the seat
0
0
22 0
0
11
401677-10
–
Hook the catch
1
of the seat onto the fuel tank and lower the rear while pushing it
forward.
–
Insert the locking pin
2
into the lock housing and push down the rear of the seat until
the locking pin engages with an audible click.
– Finally, check that the seat is correctly mounted.

KTM 1090 ADVENTURE 2017 Specifications

General

Engine Type	2-cylinder, 4-stroke, V 75°
Displacement	1050 cc
Torque	109 Nm @ 6500 rpm
Transmission	6-speed
Fuel Tank Capacity	23 liters
Seat Height	850 mm
Dry Weight	205 kg
Front Suspension	WP USD Ø 48 mm
Fuel System	Electronic Fuel Injection
Bore x Stroke	103 mm x 63 mm
Compression Ratio	13.0:1
Starter	Electric starter
Power	92 kW (125 hp) @ 8500 rpm
Rear Suspension	WP monoshock
Front Brake	2 x Brembo 320 mm discs, 4-piston radial calipers
Rear Brake	Brembo 267 mm disc, 2-piston caliper
ABS	Bosch 9M+ two-channel ABS
Cooling	Liquid cooled
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Front Tire	120/70 R19
Rear Tire	150/70 R17
