KTM 1090 ADVENTURE 2017 User Manual

8 ERGONOMICS 72
0
0
AA
402300-10
–

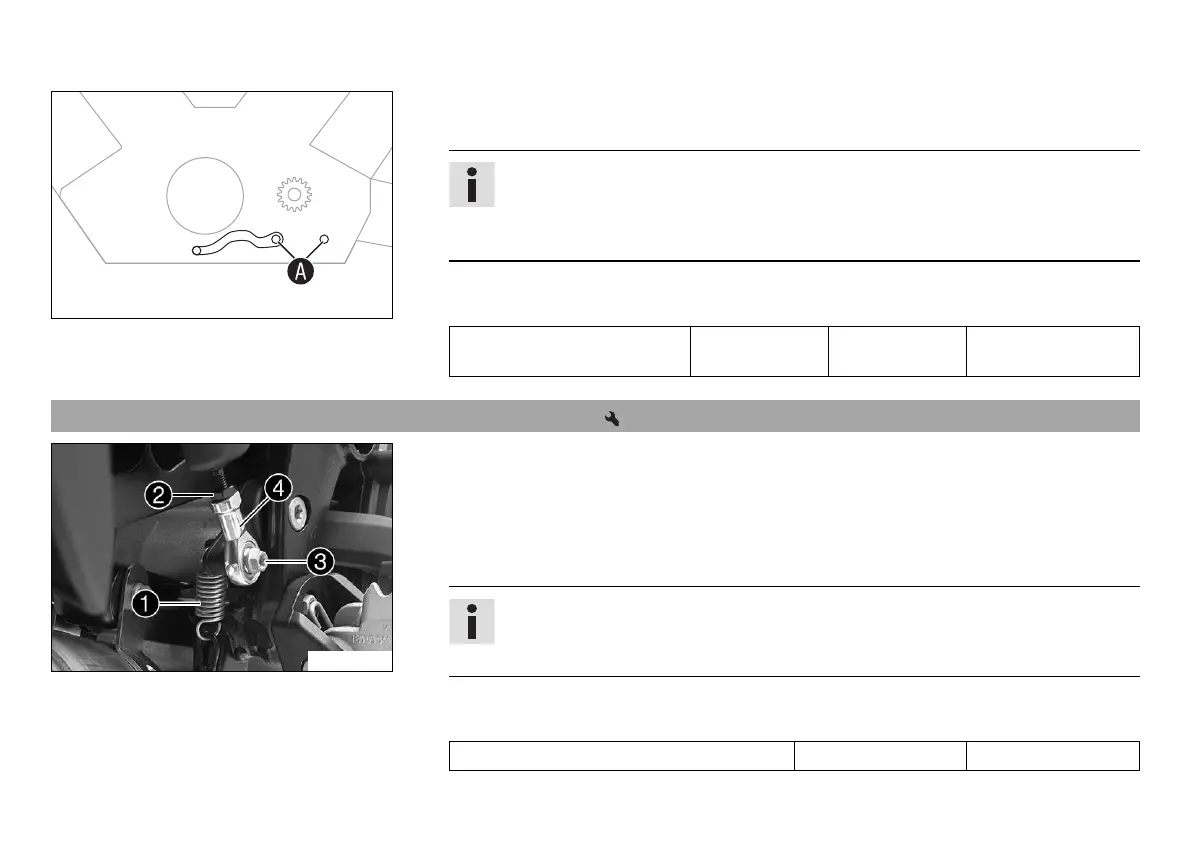

Clean gear teeth
A
of the shift lever and shift shaft.
– Mount the shift lever on the shift shaft in the required position and engage the gearing.
Info
The range of adjustment is limited.
The shift lever must not come into contact with any other vehicle components
during the shift procedure.
–
Mount and tighten screw
1
with the washers.
Guideline
Screw, shift lever M6 15 Nm
(11.1 lbf ft)
Loctite
®
243™
8.10 Adjusting the basic position of the foot brake lever
M00885-10
–
Disconnect spring
1
.
–
Loosen nut
2
.
–
Remove screw
3
.
– To adjust the basic position of the foot brake lever to individual requirements, turn ball
joint
4
accordingly.
Info
The range of adjustment is limited.
The screw must be screwed into the ball joint by at least 5 turns.
–
Hold ball joint
4
and tighten nut
2
.
Guideline
Remaining chassis nuts M6 10 Nm (7.4 lbf ft)

KTM 1090 ADVENTURE 2017 Specifications

General

Engine Type	2-cylinder, 4-stroke, V 75°
Displacement	1050 cc
Torque	109 Nm @ 6500 rpm
Transmission	6-speed
Fuel Tank Capacity	23 liters
Seat Height	850 mm
Dry Weight	205 kg
Front Suspension	WP USD Ø 48 mm
Fuel System	Electronic Fuel Injection
Bore x Stroke	103 mm x 63 mm
Compression Ratio	13.0:1
Starter	Electric starter
Power	92 kW (125 hp) @ 8500 rpm
Rear Suspension	WP monoshock
Front Brake	2 x Brembo 320 mm discs, 4-piston radial calipers
Rear Brake	Brembo 267 mm disc, 2-piston caliper
ABS	Bosch 9M+ two-channel ABS
Cooling	Liquid cooled
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Front Tire	120/70 R19
Rear Tire	150/70 R17
