KTM 1090 ADVENTURE 2017 User Manual

16 ELECTRICAL SYSTEM 172
Preparatory work
– Switch off all power consumers and switch off the engine.
– Remove the seat. ( p. 101)
– Remove the front side cover. ( p. 113)
– Remove the tank cover. ( p. 123)
– Remove the mask spoiler. ( p. 116)
– Remove the wind shield. ( p. 127)
– Remove the headlight mask with the headlight. ( p. 167)

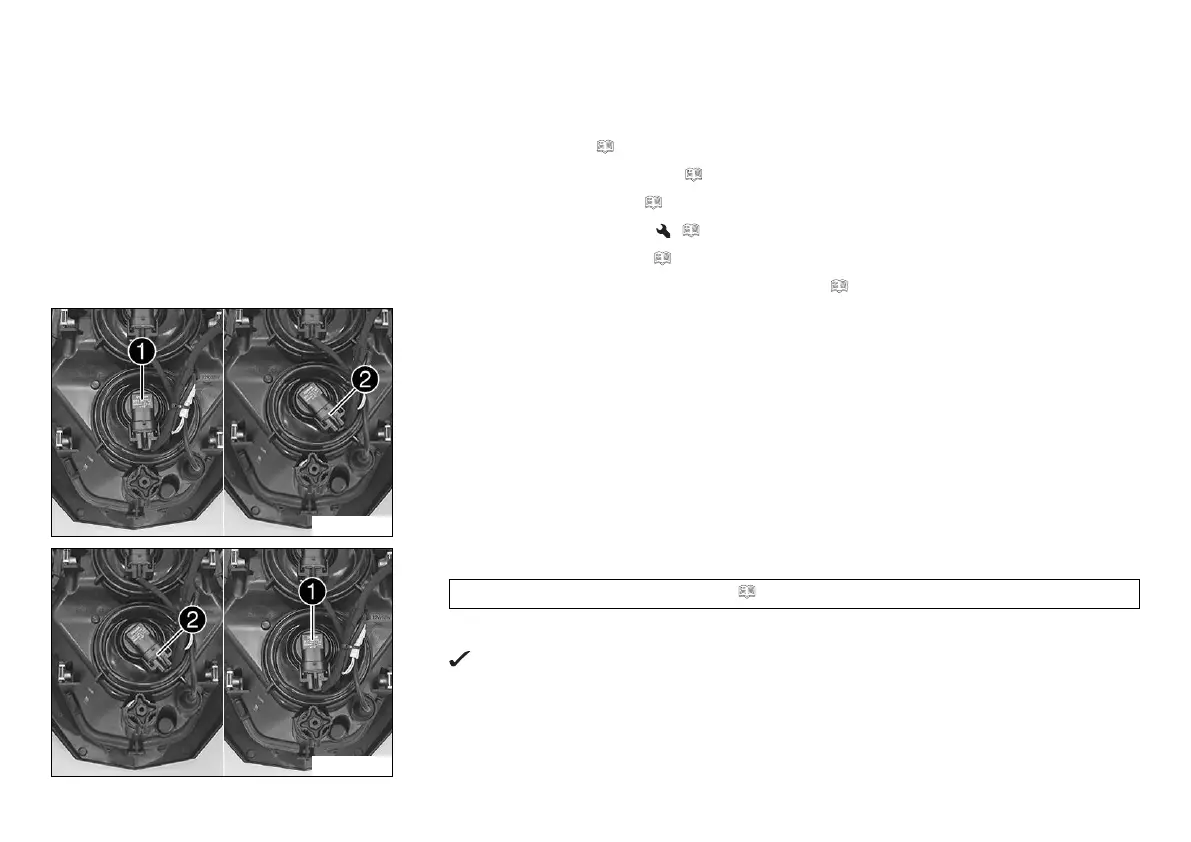

F00679-10
Main work
–
Push headlight bulb
1
lightly into the bulb socket, turn it all the way counterclock-
wise, and pull it out.
–
Unplug connector
2
.
F00680-10
–
Plug connector
2
into the new headlight bulb.
High beam (H11/socket PGJ19-2) ( p. 210)
–
Position headlight bulb
1
into the bulb socket and turn it all the way clockwise.
The headlight bulb is locked into the bulb socket.

KTM 1090 ADVENTURE 2017 Specifications

General

Engine Type	2-cylinder, 4-stroke, V 75°
Displacement	1050 cc
Torque	109 Nm @ 6500 rpm
Transmission	6-speed
Fuel Tank Capacity	23 liters
Seat Height	850 mm
Dry Weight	205 kg
Front Suspension	WP USD Ø 48 mm
Fuel System	Electronic Fuel Injection
Bore x Stroke	103 mm x 63 mm
Compression Ratio	13.0:1
Starter	Electric starter
Power	92 kW (125 hp) @ 8500 rpm
Rear Suspension	WP monoshock
Front Brake	2 x Brembo 320 mm discs, 4-piston radial calipers
Rear Brake	Brembo 267 mm disc, 2-piston caliper
ABS	Bosch 9M+ two-channel ABS
Cooling	Liquid cooled
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Front Tire	120/70 R19
Rear Tire	150/70 R17
