KTM 1190 ADVENTURE R User Manual

16 ELECTRICAL SYSTEM 163

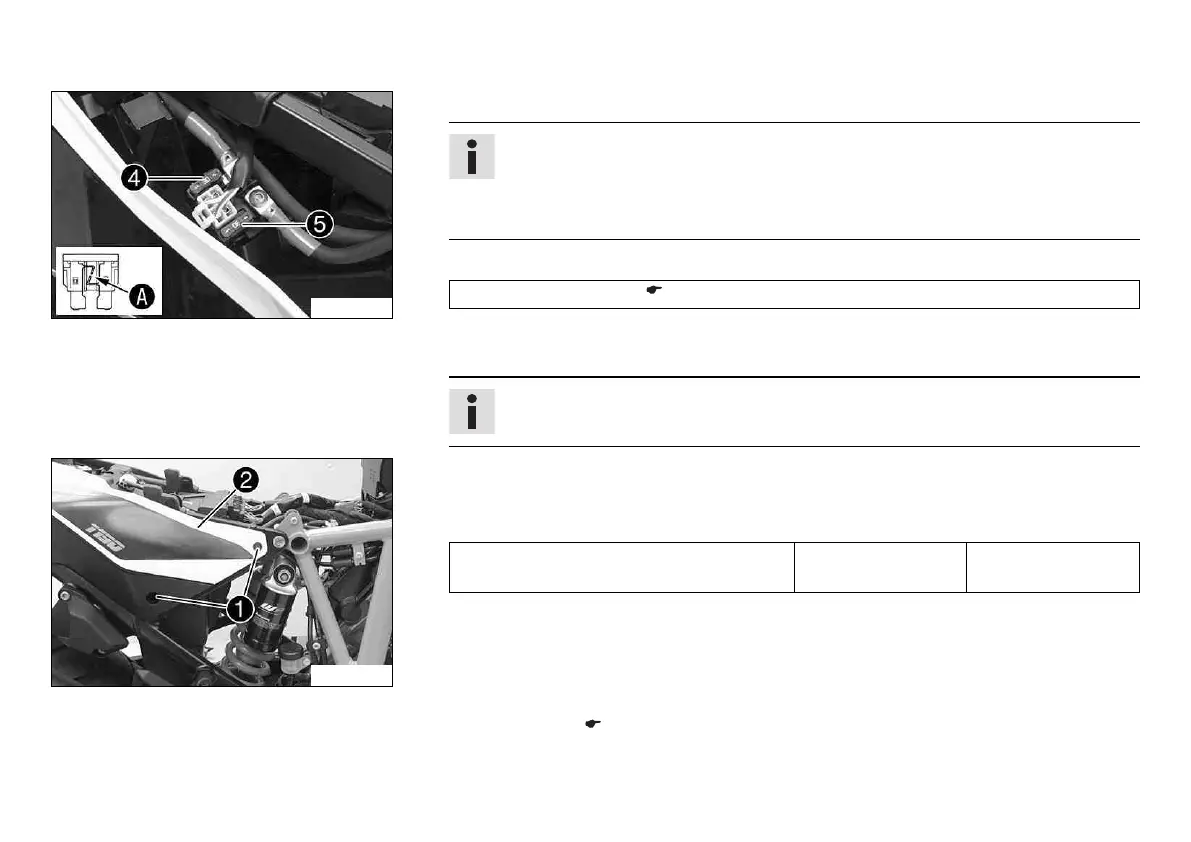

S00312-10
–
Remove the faulty main fuse
4
.
Info
A defective fuse is indicated by a burned-out fuse wire
A
.
A reserve fuse
5
is located in the starter relay.
The main fuse protects all power consumers of the vehicle.
– Install a new main fuse.
Fuse (58011109130) ( p. 207)
– Check that the electrical equipment is functioning properly.
– Mount protection covers.
Tip
Insert a new spare fuse into the starter relay to have it available when needed.
S00332-10
–
Position rear fairing
2
.
–
Mount and tighten screws
1
.
Guideline
Screw, cover part M5x12 3.5 Nm
(2.58 lbf ft)
Finishing work
– Mount the seat. ( p. 107)
– Set the time and date.

KTM 1190 ADVENTURE R Specifications

General

Engine Type	2-cylinder, 4-stroke, V 75°
Displacement	1195 cc
Bore x Stroke	105 mm x 69 mm
Transmission	6-speed
Fuel Capacity	23 liters
Dry Weight	217 kg
Front Suspension	WP USD Ø 48 mm
Wheelbase	1560 mm
Compression Ratio	12.5:1
Starter	Electric starter
Cooling	Liquid cooled
Lubrication	Forced oil lubrication with 3 oil pumps
Primary Drive	40:76
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Suspension Travel Front	220 mm
Suspension Travel Rear	220 mm
Ground Clearance	250 mm
Power	110 kW (150 hp)
Torque	125 Nm
Front Brake	2 x Brembo four-piston, radially mounted caliper, brake disc Ø 320 mm
Rear Brake	Brembo 2-piston caliper, 267 mm disc
ABS	Bosch 9ME Combined-ABS
Seat Height	890 mm (35 in)
Final Drive	Chain
Clutch	PASC (Power Assisted Slipper Clutch), hydraulically operated
