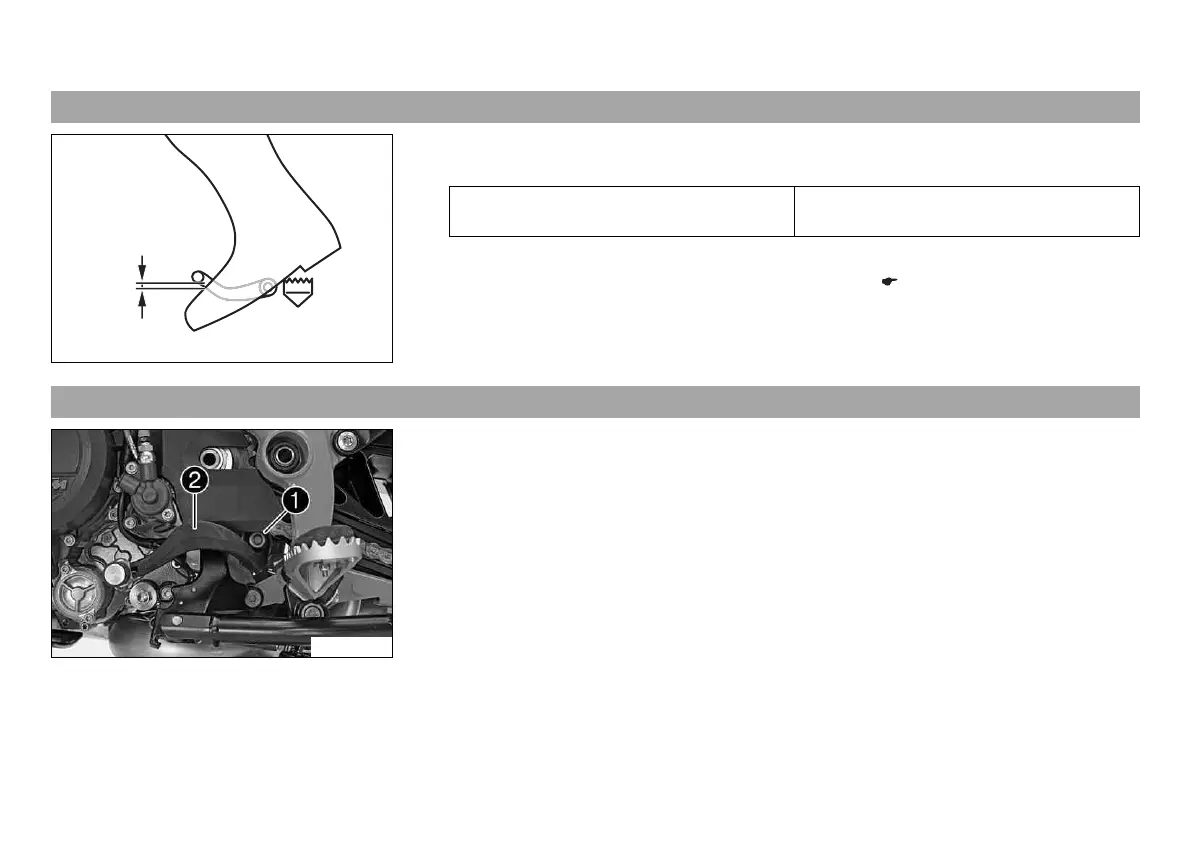

8 ERGONOMICS 75

8.10 Checking the basic position of the shift lever

400692-10

–

Sit on the vehicle in the riding position and determine distance

between the upper

edge of your boot and the shift lever.

Distance between shift lever and upper

edge of boot

10… 20 mm (0.39… 0.79 in)

» If the distance does not meet specifications:

–

Adjust the basic position of the shift lever. x ( p. 75)

8.11 Adjusting the basic position of the shift lever x

101873-10

–

Remove screw

and take off shift lever
