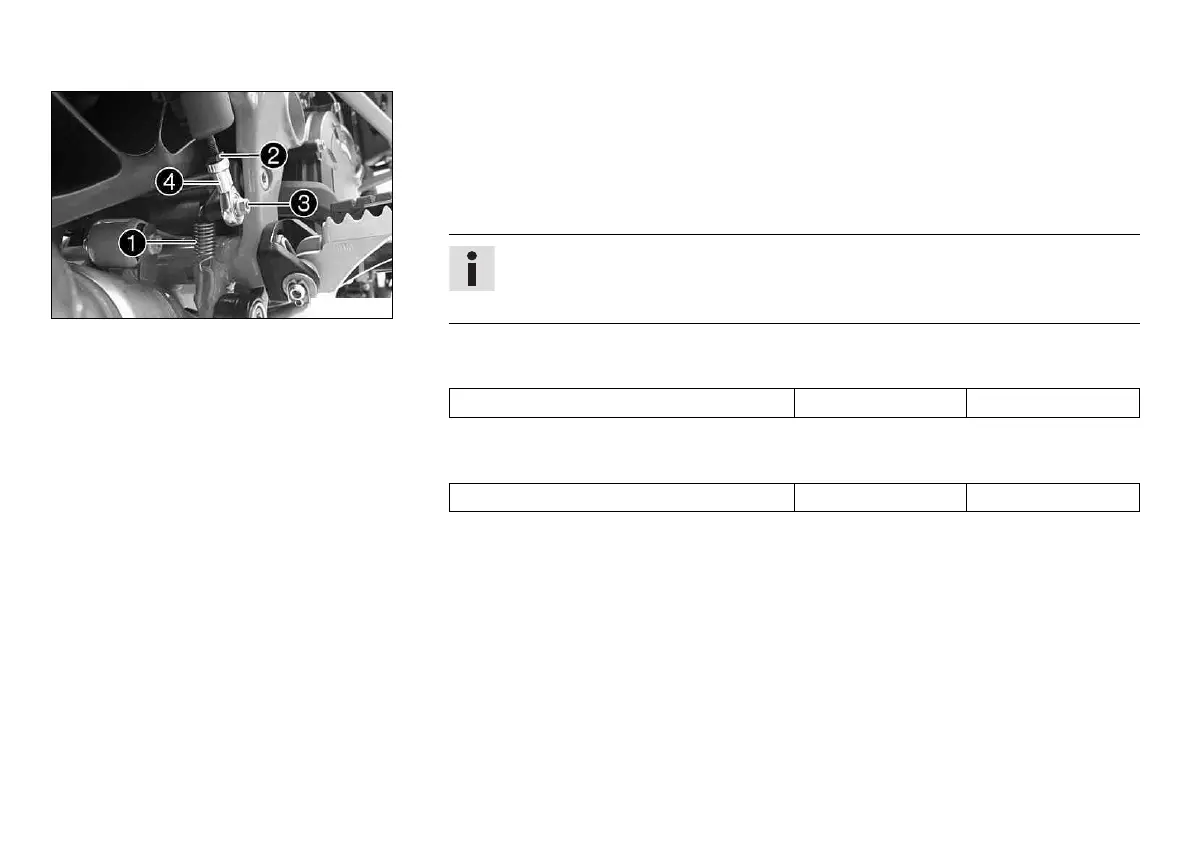

8 ERGONOMICS 74
S00283-10
–
Disconnect spring
1
.
–
Loosen nut
2
.
–
Remove screw
3
.
– To adjust the basic position of the foot brake lever to individual requirements, turn ball
joint
4
accordingly.
Info
The range of adjustment is limited.
The screw must be screwed into the ball joint by at least 5 turns.
–
Hold ball joint
4
and tighten nut
2
.
Guideline
Remaining chassis nuts M6 10 Nm (7.4 lbf ft)
–
Mount and tighten screw
3
.
Guideline
Remaining chassis nuts M6 10 Nm (7.4 lbf ft)
–
Attach spring
1
.

KTM 1190 ADVENTURE R Specifications

General

Engine Type	2-cylinder, 4-stroke, V 75°
Displacement	1195 cc
Bore x Stroke	105 mm x 69 mm
Transmission	6-speed
Fuel Capacity	23 liters
Dry Weight	217 kg
Front Suspension	WP USD Ø 48 mm
Wheelbase	1560 mm
Compression Ratio	12.5:1
Starter	Electric starter
Cooling	Liquid cooled
Lubrication	Forced oil lubrication with 3 oil pumps
Primary Drive	40:76
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Suspension Travel Front	220 mm
Suspension Travel Rear	220 mm
Ground Clearance	250 mm
Power	110 kW (150 hp)
Torque	125 Nm
Front Brake	2 x Brembo four-piston, radially mounted caliper, brake disc Ø 320 mm
Rear Brake	Brembo 2-piston caliper, 267 mm disc
ABS	Bosch 9ME Combined-ABS
Seat Height	890 mm (35 in)
Final Drive	Chain
Clutch	PASC (Power Assisted Slipper Clutch), hydraulically operated
