SERVICE WORK ON THE CHASSIS 12
49

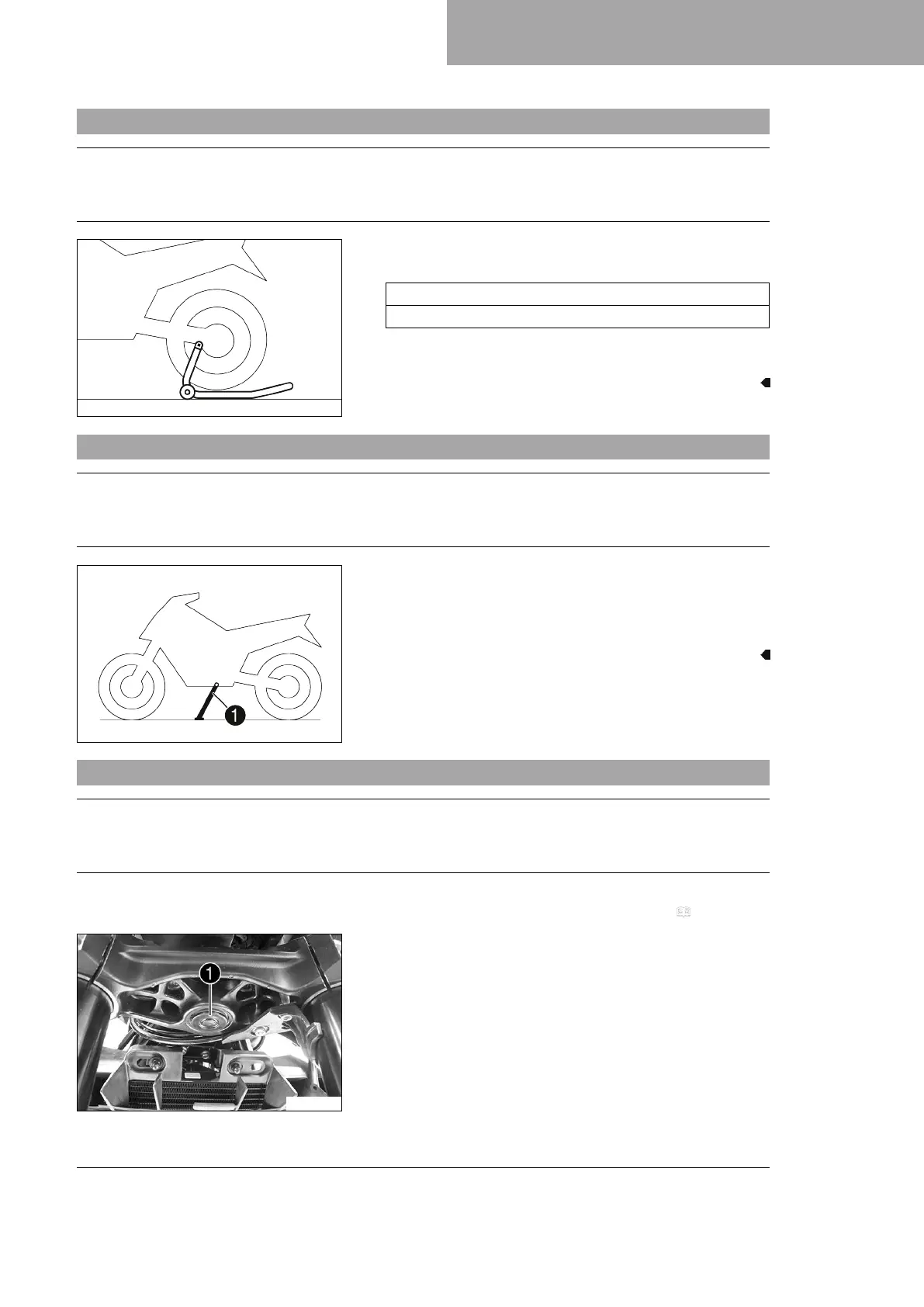

12.1 Raising the motorcycle with rear lifting gear
Note
Danger of damage The parked vehicle can roll away or fall over.
– Park the vehicle on a firm and level surface.
402346-01
– Mount the supports of the lifting gear.
– Insert the adapter in the rear lifting gear.
Retaining adapter (61029955244)
Rear wheel work stand (69329955000)
– Stand the motorcycle upright, align the lifting gear to the link
fork and the adapters, and raise the motorcycle.
12.2 Removing the rear of the motorcycle from the lifting gear
Note
Danger of damage The parked vehicle can roll away or fall over.
– Park the vehicle on a firm and level surface.
402029-10
– Secure the motorcycle against falling over.
– Remove the rear lifting gear and lean the vehicle on side
stand
1
.
– Remove bushings kit.
12.3 Lifting the motorcycle with the front lifting gear
Note
Danger of damage The parked vehicle can roll away or fall over.
– Park the vehicle on a firm and level surface.
Preparatory work
– Raise the motorcycle with the rear lifting gear. ( p. 49)
K00729-10
Condition
–
Remove protection cap
1
.

KTM 200 DUKE 2021 Specifications

General

Displacement	199.5 cc
Max Torque	19.5 Nm @ 8, 000 rpm
Transmission	6-speed
Rear Suspension	WP APEX Monoshock
Fuel Tank Capacity	13.5 liters
Bore x Stroke	72 mm x 49 mm
Compression Ratio	11.5:1
Frame	Steel trellis frame, powder coated
Front Tire	110/70 R17
Rear Tire	150/60 R17
Seat Height	822 mm
Instrumentation	Digital LCD display
Fuel System	Electronic Fuel Injection
Front Suspension	WP USD 43 mm
Front Brake	300 mm disc
Rear Brake	230 mm disc
Engine Type	Single-cylinder, 4-stroke, liquid-cooled
