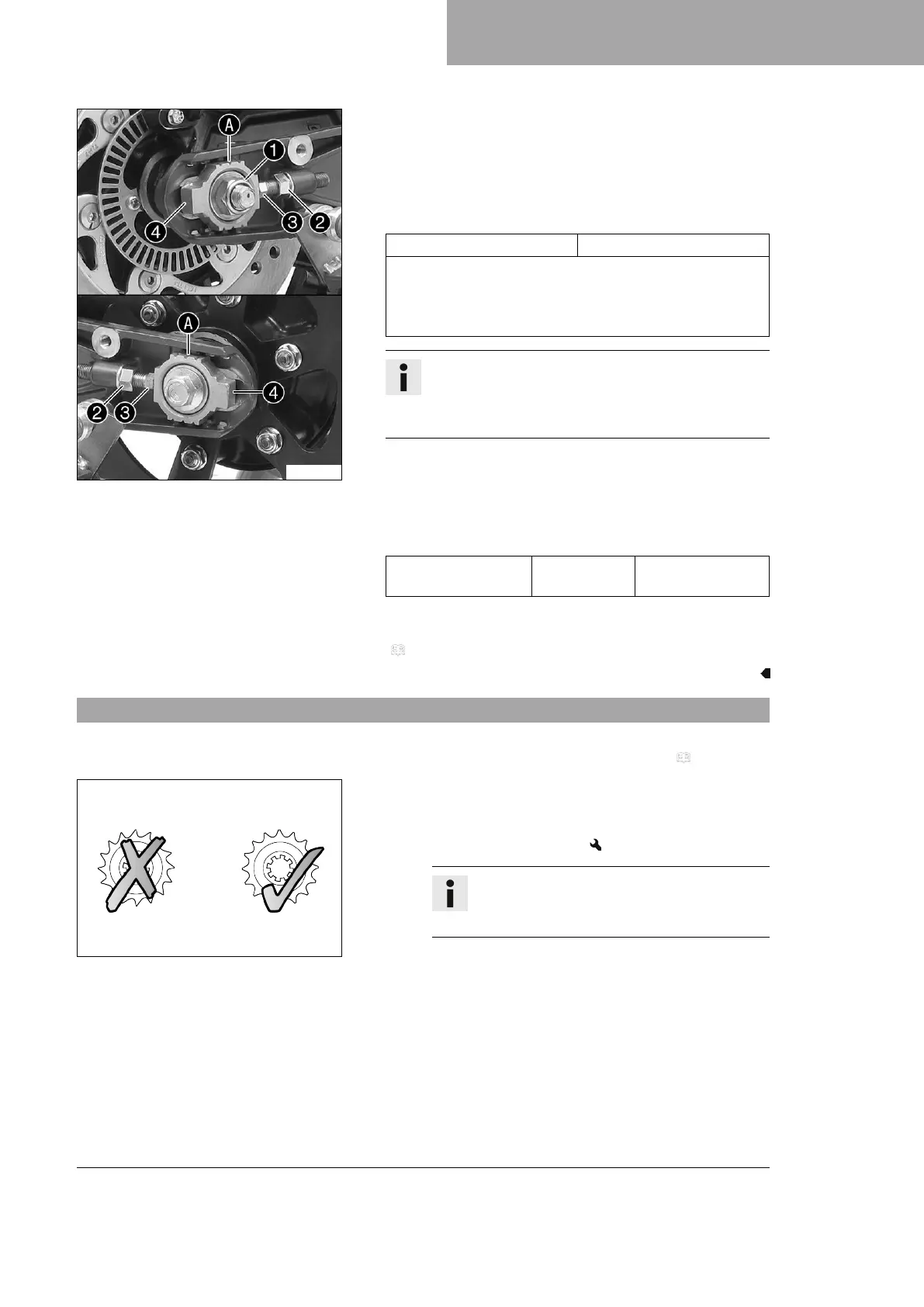

SERVICE WORK ON THE CHASSIS 12
55
S00669-10
Main work
–
Loosen nut
1
.
–
Loosen nuts
2
.
–
Adjust the chain tension by turning adjusting screws
3
left
and right.
Guideline
Chain tension 5 … 7 mm (0.2 … 0.28 in)
Turn the adjusting screws
3
on the left and right so that
the markings on the left and right chain adjusters
4
are in
the same position relative to the reference marks
A
. The
rear wheel is then correctly aligned.
Info
The top chain section must be taut.
Chain wear is not always even, so you should check the
setting at different chain positions.
–
Tighten nuts
2
.
–
Make sure that chain adjusters
4
are fitted correctly on
adjusting screws
3
.
–
Tighten nut
1
.
Guideline
Nut, rear wheel spin-
dle
M14x1.5 98 Nm (72.3 lbf ft)
Finishing work
– Remove the rear of the motorcycle from the lifting gear.
( p. 49)
12.14 Checking the chain, rear sprocket, and engine sprocket
Preparatory work
– Raise the motorcycle with the rear lifting gear. ( p. 49)
100132-10
Main work
– Check the rear sprocket and engine sprocket for wear.
» If the rear sprocket and engine sprocket are worn:
– Change the drivetrain kit.
Info
The engine sprocket, rear sprocket, and chain
should always be replaced together.
