KTM 200 DUKE 2021 User Manual

ELECTRICAL SYSTEM 15
77
15.5 Changing the fuses of individual electrical power consumers
Info
The fuse box with the main fuse and the fuses of the individual electrical power consumers is located
under the passenger seat.
Preparatory work
– Remove the passenger seat. ( p. 51)
S04219-10
Main work
–

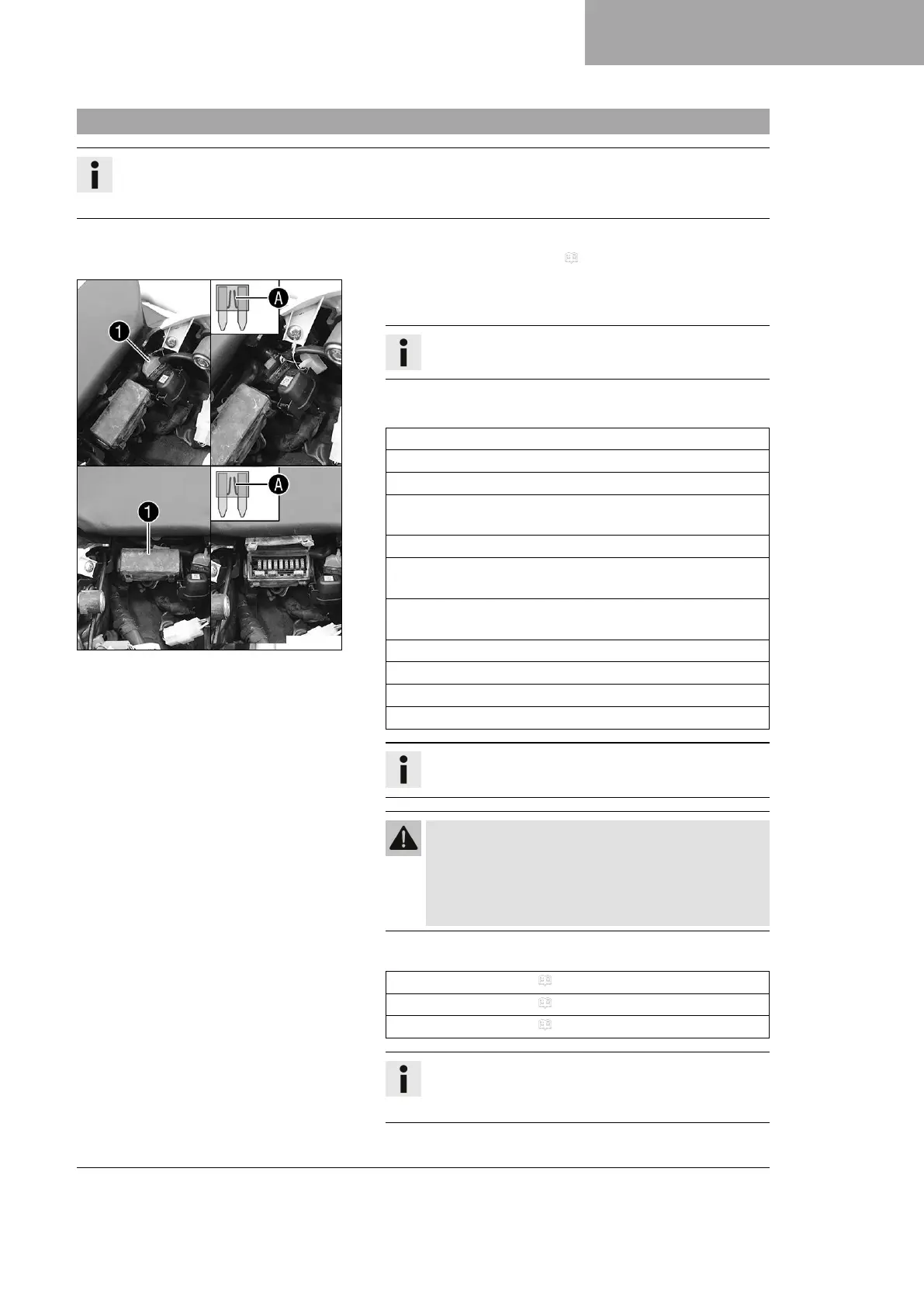

Open fuse box cover
1
.
Info
Fuse 1 (main fuse) is located in its own fuse box.
– Remove the faulty fuse.
Guideline
Fuse 1 - not assigned
Fuse 2 - 10 A - combination instrument
Fuse 3 - 10 A - power relay
Fuse 4 - 15 A - ignition coil, fuel pump relay, starter relay,
horn
Fuse 5 - 10 A - radiator fan
Fuse 6 - 15 A - brake light, turn signal, high beam, low
beam, position light, tail light, license plate lamp
Fuse 7 - 10 A - ABS control unit, CAN bus, combination
instrument
Fuse 8 - 10 A - emergency OFF switch
Fuse 9 - 10 A - ACC1
Fuse 10 - 10 A - ACC2
Fuse SPARE - 10 A/15 A/30 A - spare fuses
Info
A faulty fuse has a burned-out fuse wire
A
.
Warning
Fire hazard Incorrect fuses overload the electrical sys-
tem.
– Only use fuses with the required ampere value.
– Do not bypass or repair fuses.
– Insert the spare fuse with the correct rating.
Fuse (75011088010) ( p. 102)
Fuse (75011088015) ( p. 102)
Fuse (75011088030) ( p. 102)
Tip
Put a spare fuse in the fuse box so that it is available if
needed.

KTM 200 DUKE 2021 Specifications

General

Displacement	199.5 cc
Max Torque	19.5 Nm @ 8, 000 rpm
Transmission	6-speed
Rear Suspension	WP APEX Monoshock
Fuel Tank Capacity	13.5 liters
Bore x Stroke	72 mm x 49 mm
Compression Ratio	11.5:1
Frame	Steel trellis frame, powder coated
Front Tire	110/70 R17
Rear Tire	150/60 R17
Seat Height	822 mm
Instrumentation	Digital LCD display
Fuel System	Electronic Fuel Injection
Front Suspension	WP USD 43 mm
Front Brake	300 mm disc
Rear Brake	230 mm disc
Engine Type	Single-cylinder, 4-stroke, liquid-cooled
