KTM 350 EXC-F 2022 User Manual

ELECTRICAL SYSTEM 15
117

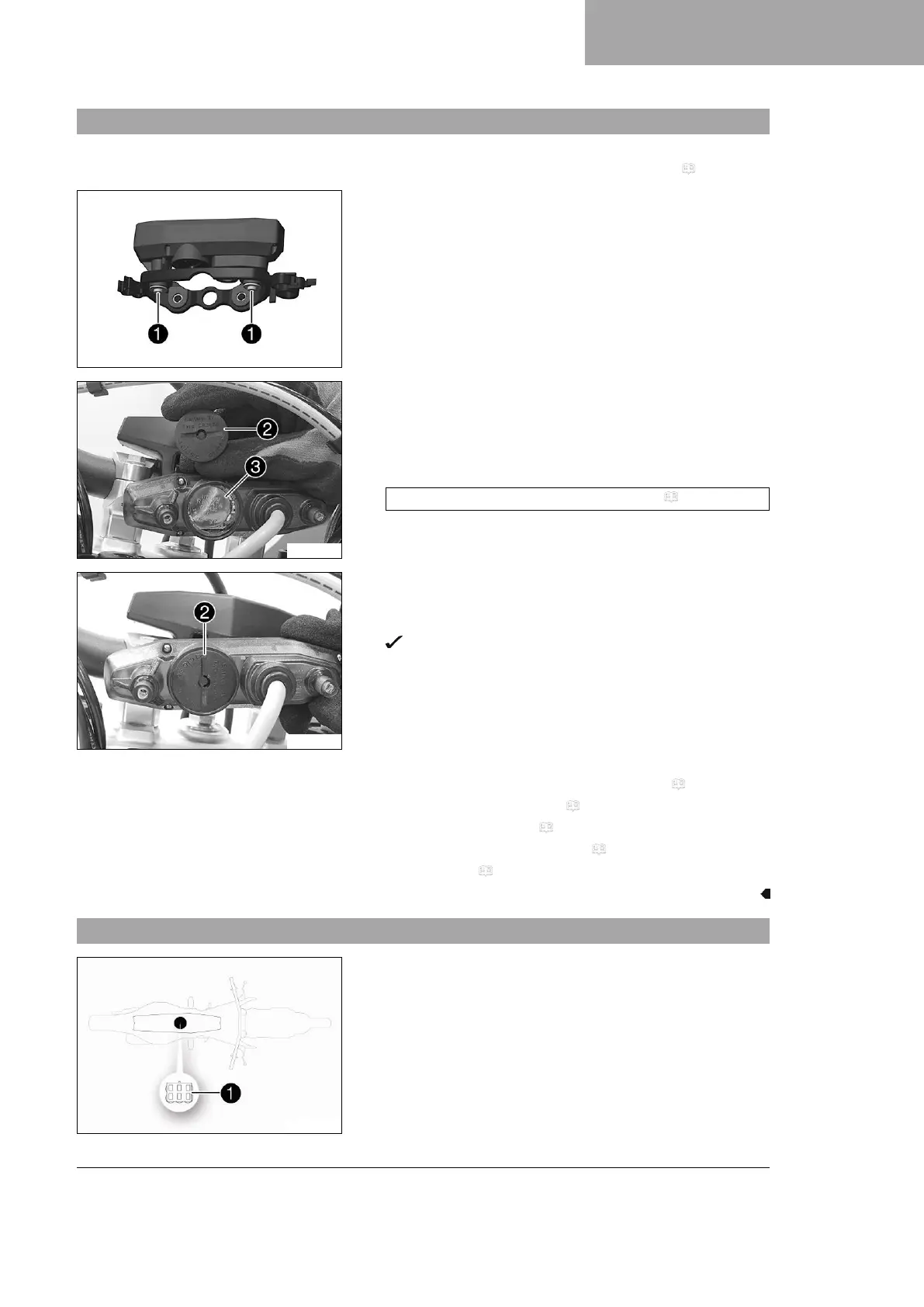

15.12 Changing the combination instrument battery
Preparatory work
– Remove the headlight mask with the headlight. ( p. 113)
V01807-10
Main work
–
Remove screws
1
with the washers.
– Pull the combination instrument upward out of the holder.
V00371-10
–
Using a coin, turn protection cap
2
all the way counterclock-
wise and take it off.
–
Remove combination instrument battery
3
.
– Insert the combination instrument with the label facing
upward.
Combination instrument battery (CR 2430) ( p. 143)
– Check the O-ring of the protection cap for correct seating.
V00372-10
–
Position protection cap
2
and turn all the way clockwise
using a coin.
– Press any button on the combination instrument.
The combination instrument is activated.
– Position the combination instrument in the holder.
– Mount and tighten the screws with washers.
Finishing work
– Install the headlight mask with the headlight. ( p. 114)
– Check the headlight setting. ( p. 115)
– Set kilometers or miles. ( p. 26)
– Set the combination instrument. ( p. 27)
– Set the clock. ( p. 28)
15.13 Diagnostics connector
H00933-12
Diagnostics connector
1
is located under the seat.
