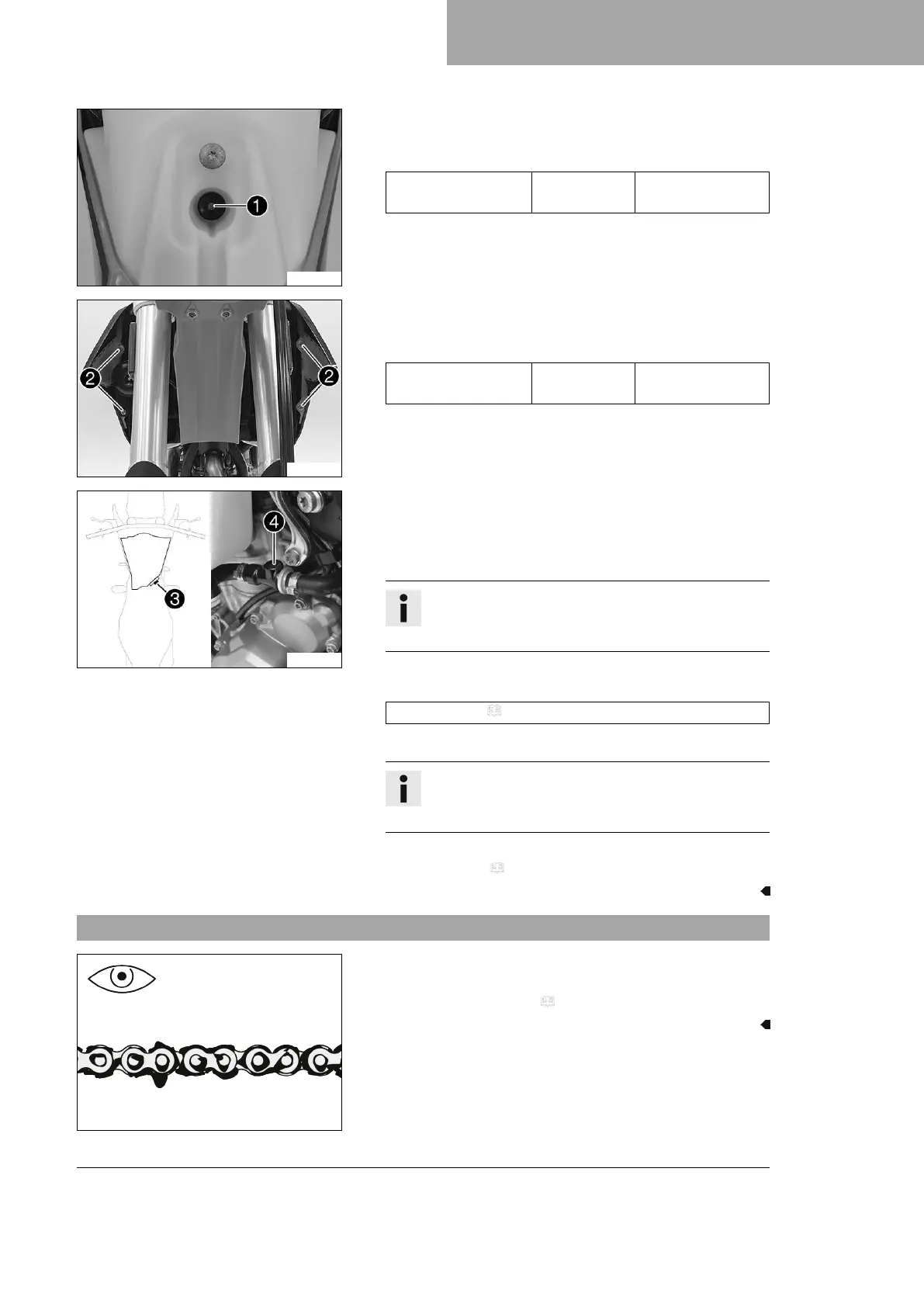

SERVICE WORK ON THE CHASSIS 12
79
V01766-11
– Attach the fuel tank breather hose.
–
Mount and tighten screw
1
with the rubber bushing.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
V01764-11
–
Position the horn with the horn bracket.
–
Mount and tighten screws
2
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
V01824-11
–
Plug in connector
3
for the fuel pump.
– Remove the wash cap set.
– Clean the quick release coupling thoroughly with compressed
air.
Info
Under no circumstances should dirt enter into the fuel
line. Dirt in the fuel line clogs the injection valve!
– Spray silicone spray onto a lint-free cleaning cloth and lightly
lubricate the O-ring of the quick-release coupling.
Silicone spray ( p. 150)
–
Join quick release coupling
4
.
Info
Route the cable and fuel line at a safe distance from
the exhaust system.
Finishing work
– Mount the seat. ( p. 70)
12.32 Checking for chain dirt accumulation
400678-01
– Check the chain for coarse dirt accumulation.
» If the chain is very dirty:
– Clean the chain. ( p. 80)

KTM 350 EXC-F 2022 Specifications

General

Displacement	349.7 cm³
Bore x Stroke	88 mm x 57.5 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Front Suspension	WP XPLOR-USD, Ø 48 mm
Seat Height	960 mm
Ground Clearance	370 mm
ABS	No
Engine Type	Single Cylinder, 4-Stroke Engine
Fuel System	Keihin EFI, 42 mm Throttle Body
Rear Suspension	WP XPLOR shock absorber
Front Brake	260 mm disc brake
Rear Brake	220 mm disc brake
Frame	Central double-cradle type 25CrMo4 steel
