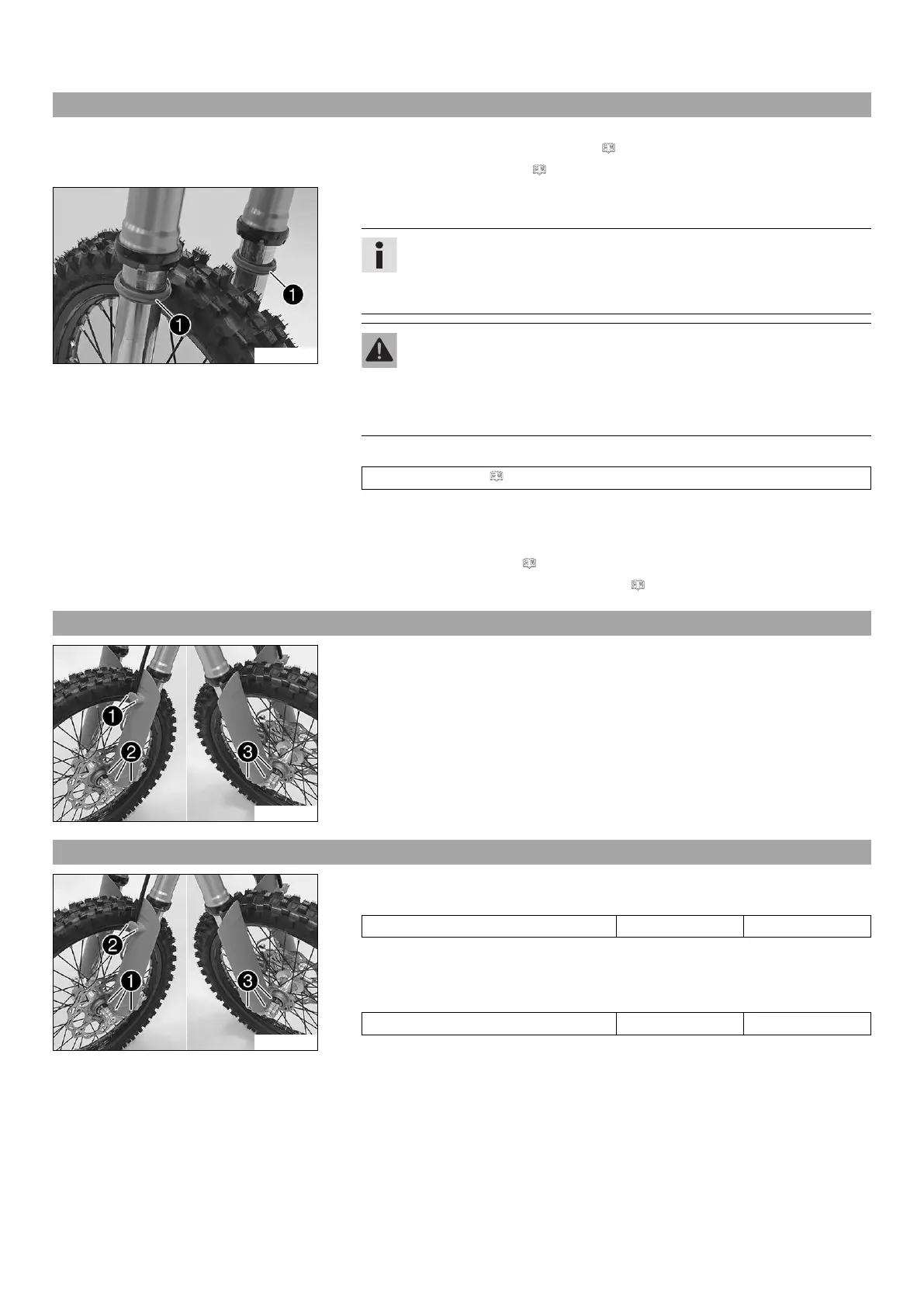

11 SERVICE WORK ON THE CHASSIS 39
11.4 Cleaning the dust boots of the fork legs
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 38)
– Remove the fork protector. ( p. 39)
S01207-10
Main work
–
Push dust boots
1
of both fork legs downward.
Info
The dust boots remove dust and coarse dirt particles from the inside fork
tubes. Over time, dirt can accumulate behind the dust boots. If this dirt is
not removed, the oil seals behind can start to leak.
Warning
Danger of accidents Oil or grease on the brake discs reduces the braking
effect.
– Always keep the brake discs free of oil and grease.
– Clean the brake discs with brake cleaner when necessary.
– Clean and oil the dust boots and inner fork tubes of both fork legs.
Universal oil spray ( p. 111)
– Press the dust boots back into their installation position.
– Remove excess oil.
Finishing work
– Install the fork protector. ( p. 39)
– Remove the motorcycle from the lift stand. ( p. 38)
11.5 Removing the fork protector
S01208-10
–
Remove screws
1
and take off the clamp.
–
Remove screws
2
and take off the left fork protector.
–
Remove screws
3
and take off the right fork protector.
11.6 Installing the fork protector
S01208-11
–
Position the fork protection on the left fork leg. Mount and tighten screws
1
.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
–
Position the brake line and clamp. Mount and tighten screws
2
.
–
Position the fork protector on the right fork leg. Mount and tighten screws
3
.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
