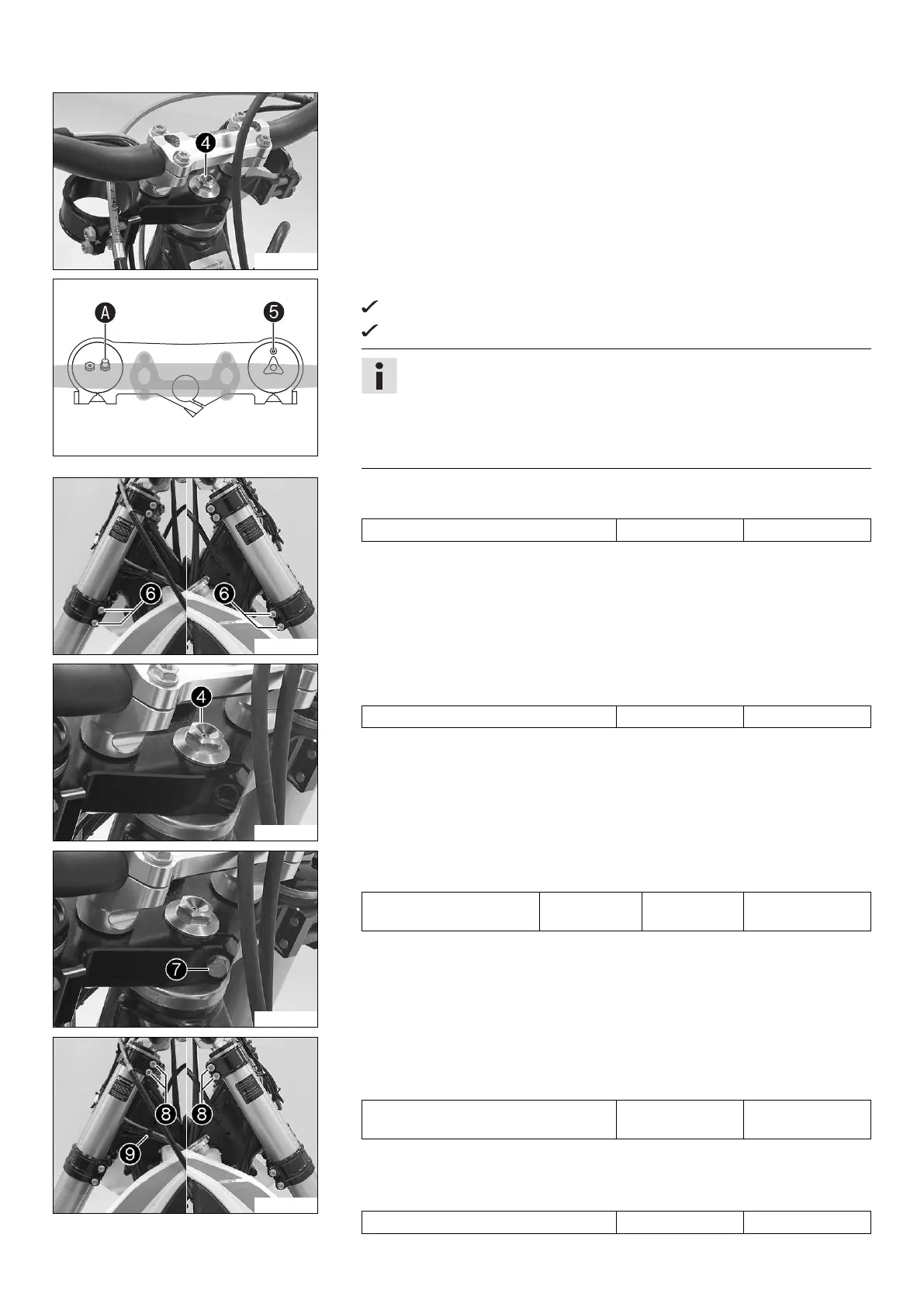

11 SERVICE WORK ON THE CHASSIS 42
S01213-10
– Position the upper triple clamp with the handlebar.
–
Mount screw
4
but do not tighten yet.
H01182-11
– Position the fork legs.
Bleeder screw
5
of the right fork leg is positioned to the front.
Valve
A
of the left fork leg faces the front.
Info
Grooves are milled into the side of the upper end of the fork legs. The sec-
ond milled groove (from the top) must be flush with the top edge of the
upper triple clamp.
The air suspension is located in the left fork leg. The pressure and rebound
damping is located in the right fork leg.
S01214-10
–
Tighten screws
6
.
Guideline
Screw, bottom triple clamp M8 12 Nm (8.9 lbf ft)
S01215-10
–
Tighten screw
4
.
Guideline
Screw, top steering head M20x1.5 12 Nm (8.9 lbf ft)
S01216-10
–
Mount and tighten screw
7
.
Guideline
Screw, top steering stem M8 20 Nm
(14.8 lbf ft)
Loctite
®
243™
S01214-11
– Using a plastic hammer, tap lightly on the upper triple clamp to avoid stresses.
–
Tighten screws
8
.
Guideline
Screw, top triple clamp M8 17 Nm
(12.5 lbf ft)
–
Secure the wiring harness with cable holder
9
on the left.
– Mount the holder with FI warning lamp.
Guideline
Remaining nuts, chassis M6 10 Nm (7.4 lbf ft)
