11 SERVICE WORK ON THE CHASSIS 63

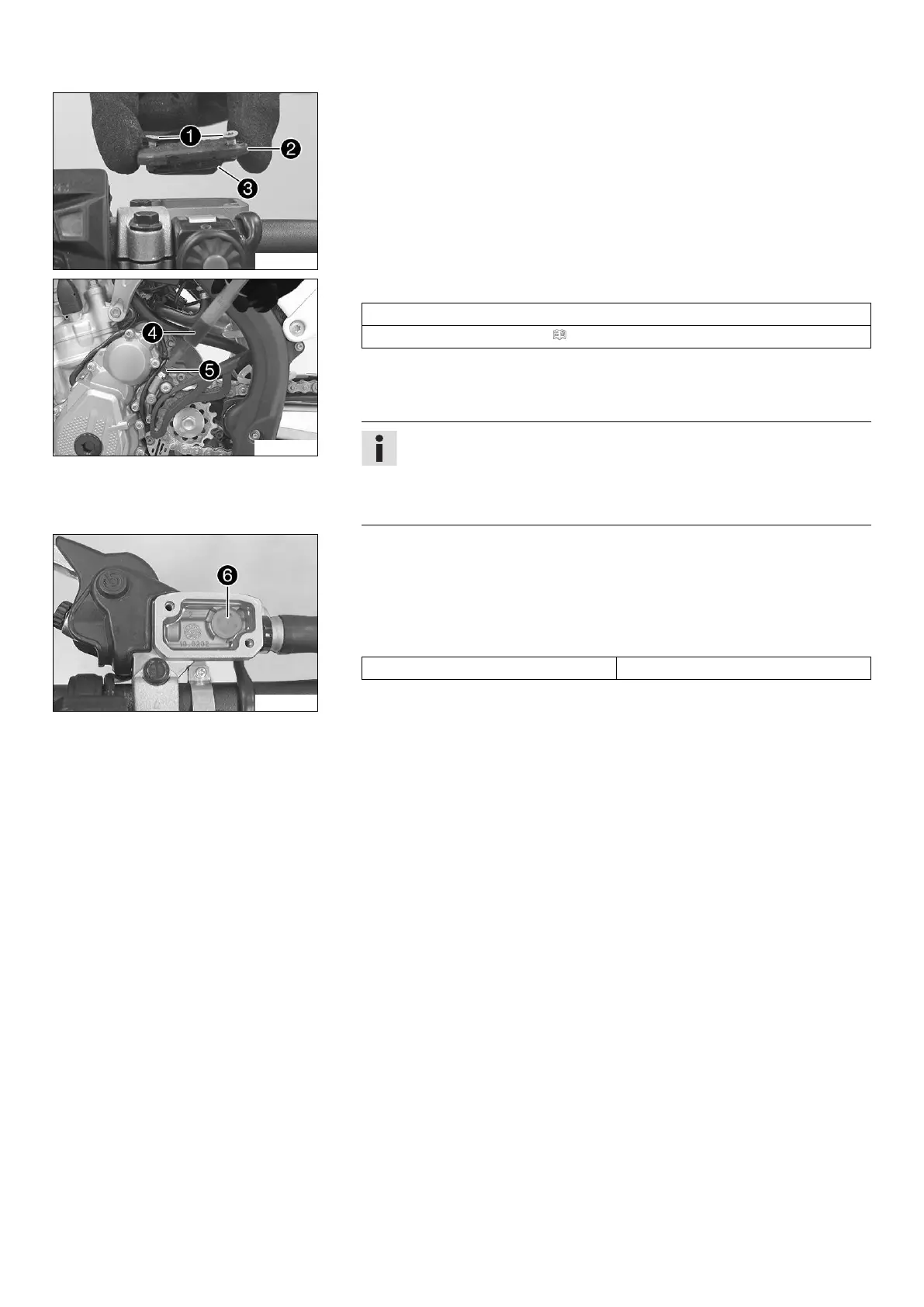

F00158-10
– Move the clutch fluid reservoir mounted on the handlebar to a horizontal position.
–
Remove screws
1
.
–
Remove cover
2
with membrane
3
.
S01270-10
–
Fill bleeding syringe
4
with the appropriate hydraulic fluid.
Bleed syringe (50329050000)
Brake fluid DOT 4 / DOT 5.1 ( p. 109)
–
Mount bleeding syringe
4
on bleeder screw
5
using a fitting section of hose.
–
Only loosen bleeder screw
5
on the clutch slave cylinder to the point where filling
is possible.
Info
Clean up overflowed or spilled brake fluid immediately with water.
Avoid contact between brake fluid and painted parts. Brake fluid attacks
paint.
Only use clean brake fluid from a sealed container.
F00166-10
–
Now inject the liquid into the system until it emerges from drill hole
6
of the
master cylinder without bubbles.
– Now and then, extract fluid from the master cylinder reservoir to prevent overflow.
– Tighten the bleeder screw and remove the bleeding syringe with the hose.
– Correct the fluid level of the hydraulic clutch.
Guideline
Fluid level below container rim 4 mm (0.16 in)
– Position the cover with the membrane. Mount and tighten the screws.
To Next Page
