11 SERVICE WORK ON THE CHASSIS 43
11.19 Installing the front fender

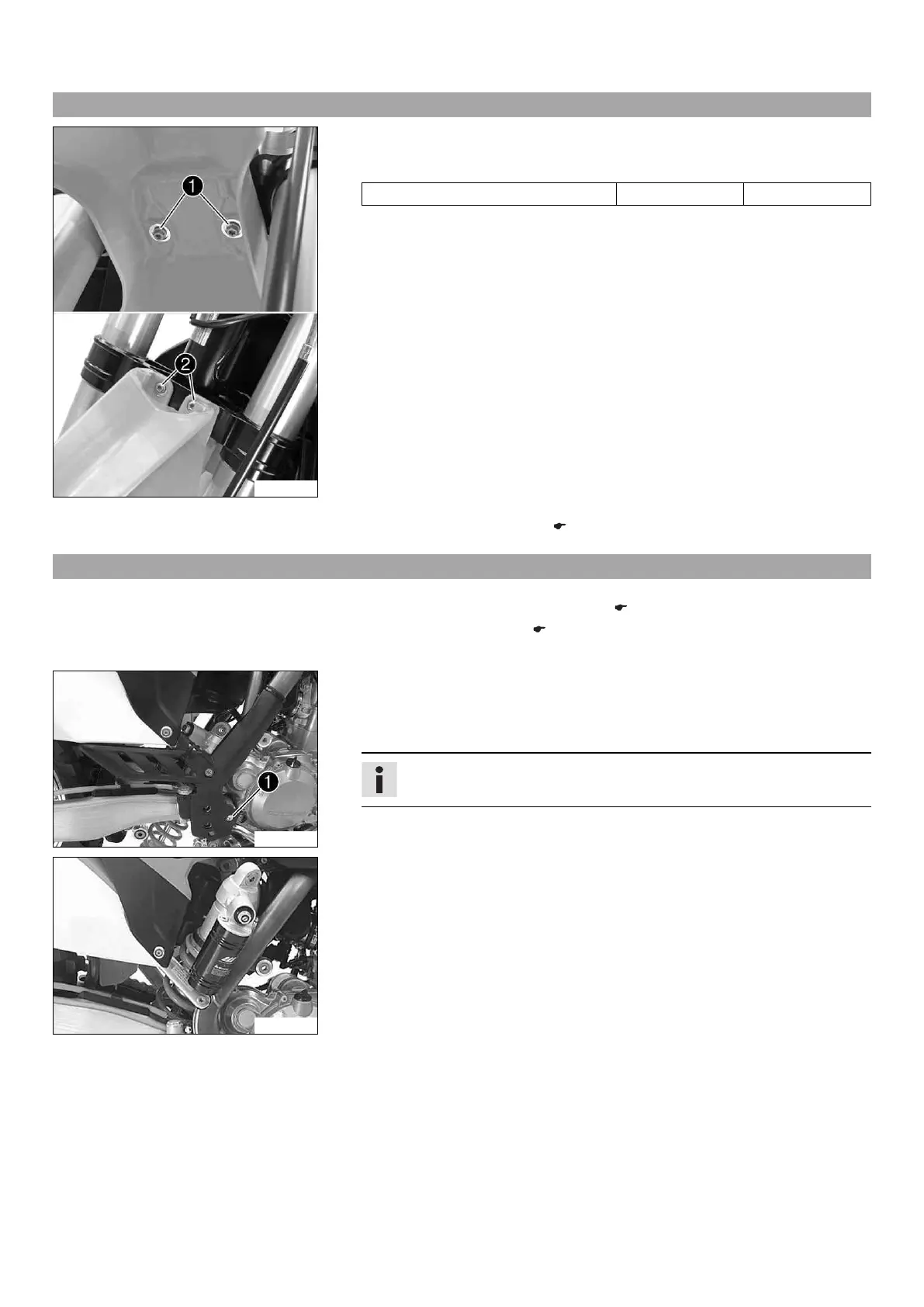

C00153-10
Main work
– Position the front fender. Mount and tighten screws 1 and 2.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
Finishing work
– Install the start number plate. ( p. 42)
11.20 Removing the shock absorber x
Preparatory work
– Raise the motorcycle with the lift stand. ( p. 35)
– Remove the main silencer. ( p. 47)
–
Remove the manifold. x
S00129-10
Main work
– Remove the cable binder of the frame protector.
– Remove screw 1.
– Take off the frame protector.
Info
Pay attention to the holding lugs.
S00127-10
– Carefully take the shock absorber upward out of the vehicle.
