KTM 50 SX 2019 User Manual

11 SERVICE WORK ON THE CHASSIS
62

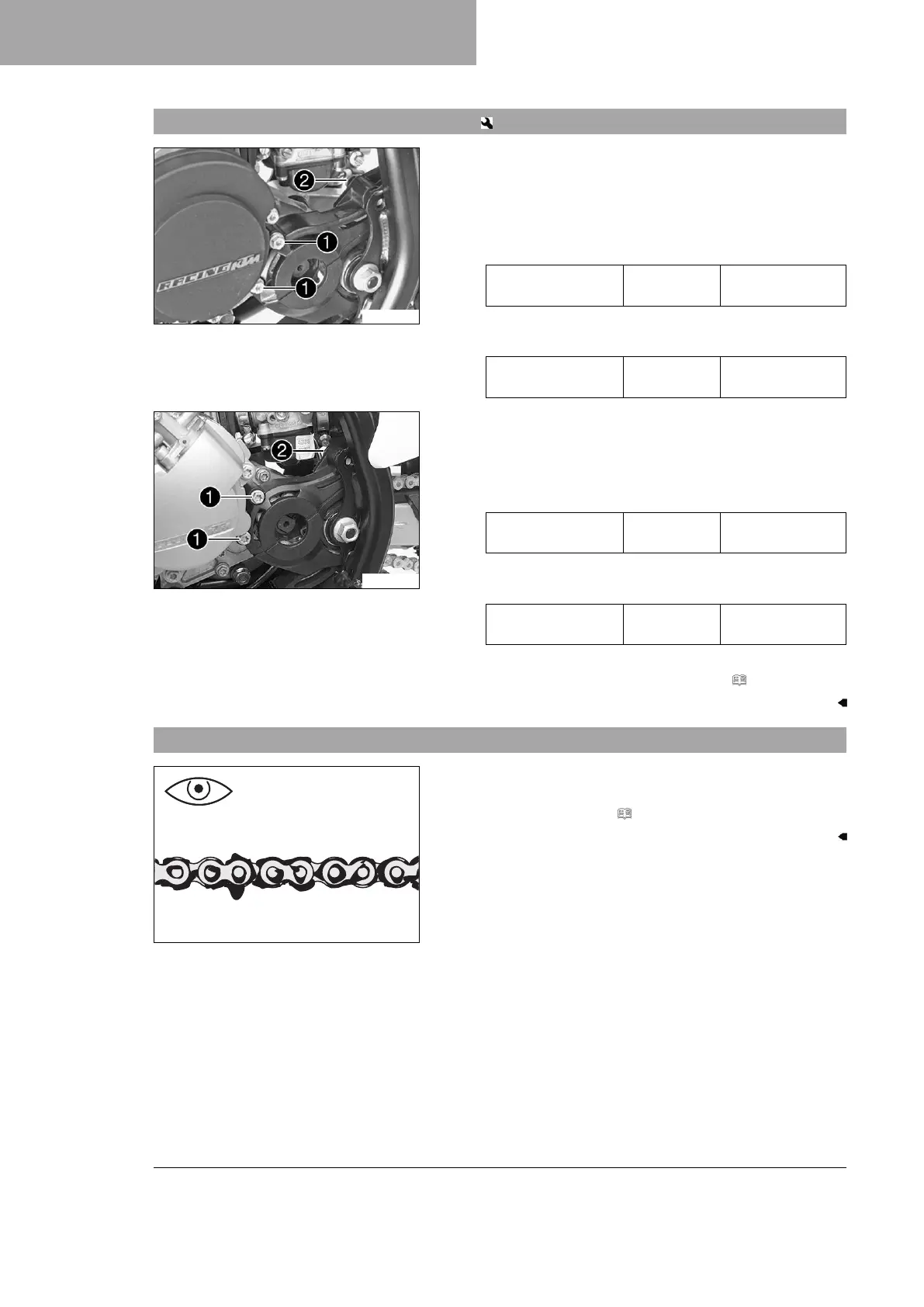

11.31 Installing the engine sprocket cover
H01437-10
Main work
(50 SX)
–
Position the engine sprocket cover. Mount screws
1
but
do not tighten yet.
–
Mount and tighten screw
2
.
Guideline
Screw, engine
sprocket cover
M8 12 Nm (8.9 lbf ft)
–
Tighten screws
1
.
Guideline
Screw, engine
sprocket cover
M6 10 Nm (7.4 lbf ft)
H01436-10
(50 SX Mini)
–
Position the engine sprocket cover. Mount screws
1
but
do not tighten yet.
–
Mount and tighten screw
2
.
Guideline
Screw, engine
sprocket cover
M8 12 Nm (8.9 lbf ft)
–
Tighten screws
1
.
Guideline
Screw, engine
sprocket cover
M6 10 Nm (7.4 lbf ft)
Finishing work
– Remove the motorcycle from the lift stand. ( p. 42)
11.32 Checking the chain for dirt
400678-01
–
Check the chain for coarse dirt accumulation.
» If the chain is very dirty:
– Clean the chain. ( p. 63)

KTM 50 SX 2019 Specifications

General

Displacement	49 cm³
Cooling System	Liquid cooled
Transmission	Single-speed automatic
Starter	Kickstarter
Rear Suspension	WP XACT Monoshock
Front Brake	Disc brake
Rear Brake	Disc brake
Weight (without fuel)	40 kg
Front Tire	60/100-12
Rear Tire	2.75-10
Seat Height	684 mm
Engine Type	Single cylinder, 2-stroke
Front Suspension	WP USD, 35 mm
Fuel Capacity	2.3 liters
Bore x Stroke	39.5 mm x 40 mm
