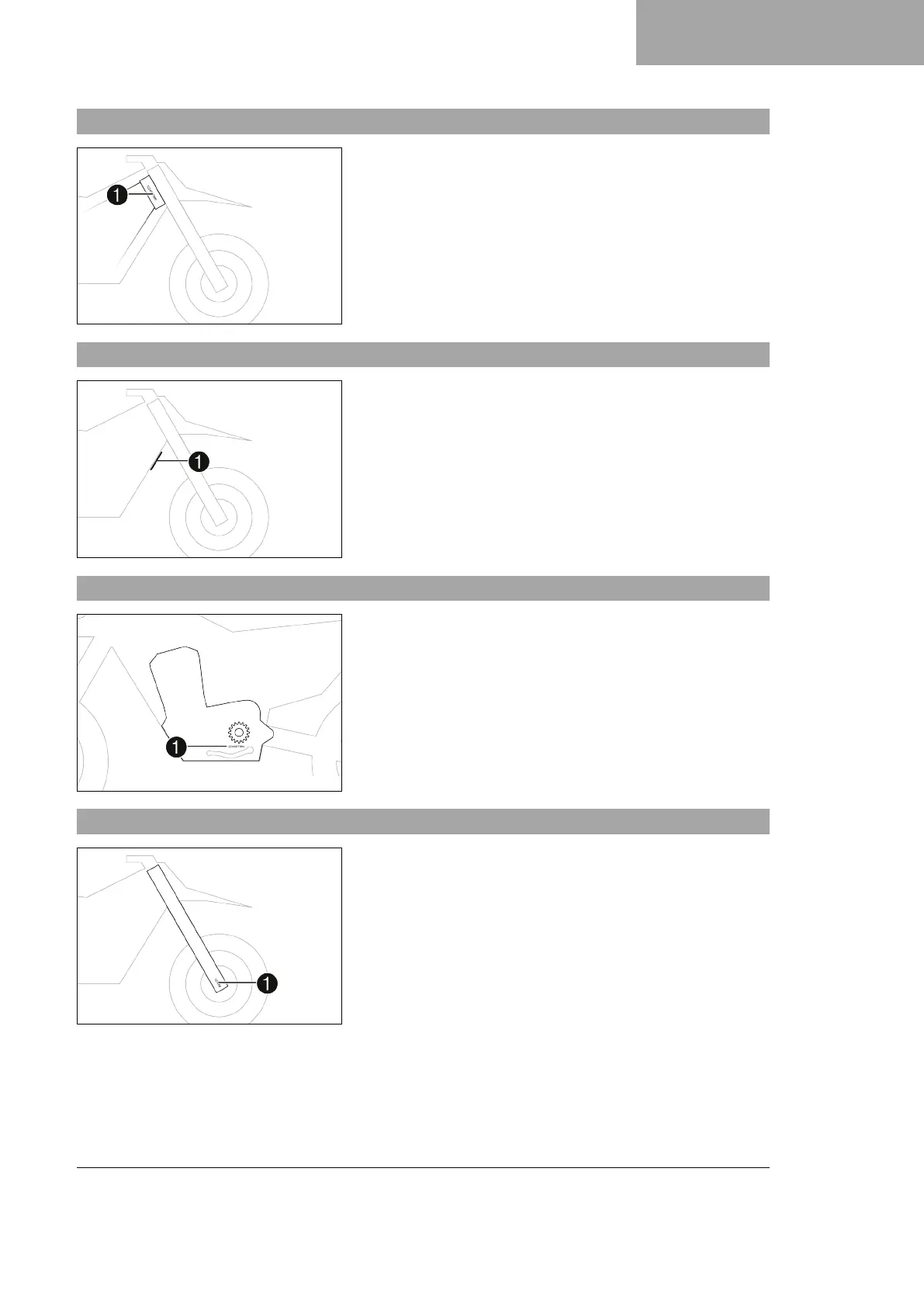

SERIAL NUMBERS 5

5.1 Vehicle identification number

401945-10

The vehicle identification number

is stamped on the right side

of the steering head.

5.2 Type label

402154-10

The type label

is located on the front frame tube.

5.3 Engine number

401949-10

The engine number

is located on the left side of the engine

under the engine sprocket.

5.4 Fork article number

401947-10

The fork article number

is stamped on the outside of the axle

clamp.

Default Chapter4
- Table of Contents4
1 Means of Representation 17
- Symbols Used7
- Formats Used7
2 Safety Advice8
- Use Definition - Intended Use8
- Misuse8
- Degrees of Risk and Symbols8
- Tampering Warning9
- Safe Operation9
- Protective Clothing10
- Work Rules10
- Environment10
- Owner's Manual10
3 Important Notes12
- Manufacturer and Implied Warranty12
- Fuel, Auxiliary Substances12
- Spare Parts, Accessories12
- Service12
- Figures12
- Customer Service12
4 View of Vehicle 413
- View of Vehicle, Front Left (Example)13
- View of Vehicle, Rear Right (Example)14
5 Serial Numbers 515
- Vehicle Identification Number15
- Type Label15
- Engine Number15
- Fork Article Number15
- Shock Absorber Article Number16
6 Controls 617
- Clutch Lever17
- Hand Brake Lever17
- Throttle Grip17
- Kill Switch17
- Opening the Fuel Tank Filler Cap18
- Closing the Fuel Tank Filler Cap18
- Fuel Tap19
- Choke19
- Shift Lever19
- Kick Starter Lever20
- Foot Brake Lever20
- Plug-In Stand20
- Service Hour Counter20
7 Preparing for Use 721
- Advice on Preparing for First Use21
- Running in the Engine23
8 Riding Instructions24
- Checks and Maintenance Measures When Preparing for Use24
- Starting the Vehicle24
- Starting off25
- Shifting, Riding25
- Applying the Brakes26
- Stopping, Parking26
- Transporting27
- Refueling27
9 Service Schedule 929
- Additional Information29
- Required Work29
- Recommended Work30
10 Tuning the Chassis 1031
- Checking the Basic Chassis Setting with Rider's Weight31
- Air Suspension XACT 523531
- Compression Damping of the Shock Absorber32
- Adjusting the Low-Speed Compression Damping of the Shock Absorber32
- Adjusting the High-Speed Compression Damping of the Shock Absorber33
- Adjusting the Rebound Damping of the Shock Absorber33
- Measuring the Dimension of the Unloaded Rear Wheel34
- Checking the Static Sag of the Shock Absorber35
- Checking the Riding Sag of the Shock Absorber35
- Adjusting the Spring Preload of the Shock Absorber36
- Adjusting the Riding Sag36
- Checking the Basic Setting of the Fork37
- Adjusting the Fork Air Pressure37
- Adjusting the Rebound Damping of the Fork39
- Handlebar Position39
- Adjusting the Handlebar Position39
11 Service Work on the Chassis41
- Service Work on the Chassis 1141
- Raising the Motorcycle with a Lift Stand41
- Removing the Motorcycle from the Lift Stand41
- Bleeding the Fork Legs41
- Cleaning the Dust Boots of the Fork Legs42
- Removing the Fork Protector42
- Installing the Fork Protector43
- Removing the Fork Legs43
- Installing the Fork Legs44
- Removing the Lower Triple Clamp45
- Installing the Lower Triple Clamp45
- Checking the Steering Head Bearing Play47
- Adjusting the Steering Head Bearing Play48
- Greasing the Steering Head Bearing49
- Removing the Start Number Plate49
- Installing the Start Number Plate49
- Removing Front Fender50
- Installing Front Fender50
- Removing the Shock Absorber50
- Installing the Shock Absorber51
- Removing the Seat51
- Mounting the Seat51
- Removing the Air Filter52
- Installing the Air Filter52
- Cleaning the Air Filter and Air Filter Box53
- Removing the Main Silencer53
- Installing the Main Silencer54
- Changing the Glass Fiber Yarn Filling of the Main Silencer54
- Removing the Fuel Tank55
- Installing the Fuel Tank56
- Checking the Chain for Dirt57
- Cleaning the Chain57
- Checking the Chain Tension58
- Adjusting the Chain Tension59
- Checking the Chain, Rear Sprocket, Engine Sprocket, and Chain Guide59
- Checking the Frame62
- Checking the Link Fork62
- Checking the Throttle Cable Routing62
- Checking the Rubber Grip63
- Additionally Securing the Rubber Grip63
- Adjusting the Basic Position of the Clutch Lever63
- Checking the Fluid Level of the Hydraulic Clutch63
- Correcting the Fluid Level of the Hydraulic Clutch64
- Changing the Hydraulic Clutch Fluid65
12 Brake System 1267
- Checking the Free Travel of the Hand Brake Lever67
- Adjusting the Basic Position of the Hand Brake Lever67
13 Wheels, Tires80
- Removing the Front Wheel80
- Installing the Front Wheel80
- Removing the Rear Wheel81
- Installing the Rear Wheel82
- Checking the Tire Condition83
- Checking Tire Pressure84
- Checking Spoke Tension85
14 Cooling System86
- Checking the Antifreeze and Coolant Level86
- Checking the Coolant Level87
- Draining the Coolant87
- Refilling with Coolant88
15 Tuning the Engine90
- Checking Throttle Cable Play90
- Adjusting the Throttle Cable Play90
- Carburettor - Idle Speed91
- Carburetor - Adjusting the Idle Speed91
- Emptying the Carburetor Float Chamber92
16 Service Work on the Engine94
- Checking the Gear Oil Level94
- Changing the Gear Oil94
- Adding the Gear Oil95
17 Cleaning, Care 1797
- Cleaning the Motorcycle97
18 Storage 1899
- Preparing for Use after Storage100
19 Troubleshooting 19101
20 Technical Data 20103
- Engine103
- Engine Tightening Torques103
- Carburetor105
- Carburetor Tuning105
- Capacities106
- Gear Oil106
- Coolant106
- Fuel106
- Fork106
- Shock Absorber106
- Chassis107
- Tires108
- Chassis Tightening Torques108
21 Substances110
22 Auxiliary Substances112
23 Standards114
24 List of Abbreviations 24115
- Index116
