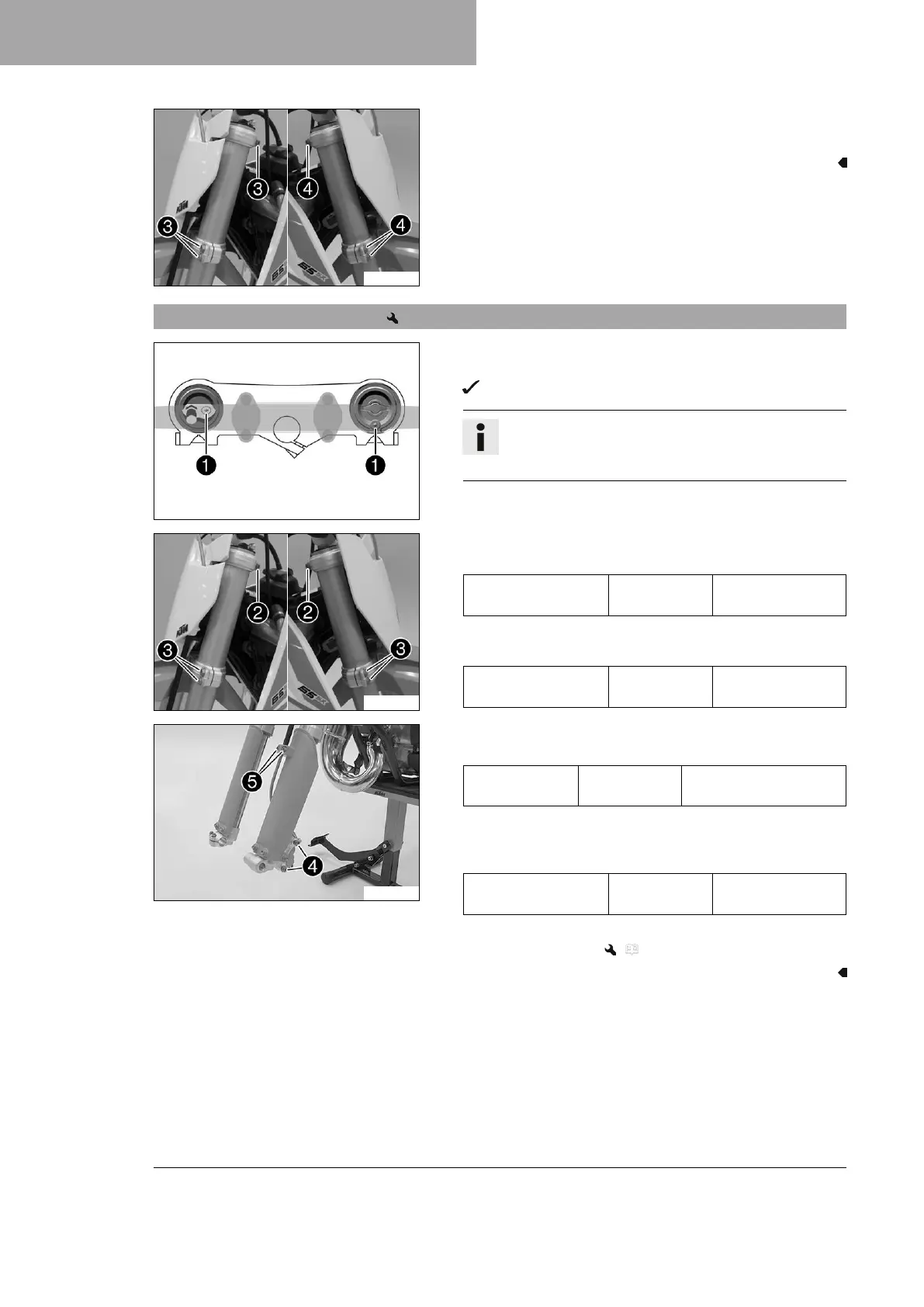

11 SERVICE WORK ON THE CHASSIS
42
V00202-10
–
Loosen screws
3
. Remove the left fork leg.
–
Loosen screws
4
. Remove the right fork leg.
11.8 Installing the fork legs
F02179-10
Main work
– Position the fork legs.
Bleeder screws
1
are positioned toward the rear.
Info
The second milled groove (from the top) must be flush
with the upper edge of the upper triple clamp.
V00202-11
–
Tighten screws
2
.
Guideline
Screw, top triple
clamp
M8 20 Nm (14.8 lbf ft)
–
Tighten screws
3
.
Guideline
Screw, bottom triple
clamp
M8 15 Nm (11.1 lbf ft)
V00227-11
–
Position the brake caliper, and mount and tighten screws
4
.
Guideline
Screw, front
brake caliper
M8 20 Nm (14.8 lbf ft)
Loctite
®
243™
– Position the brake line and the clamp. Mount and tighten
screws
5
.
Guideline
Screw, brake line
bracket
EJOT 1.7 Nm
(1.25 lbf ft)
Finishing work
– Install the front wheel. ( p. 78)
