KTM EXC User Manual

2-5C
Fig. Part no. Description
1 560.12.001.000 Universal engine work stand
3 546.29.003.000 Clutch holder
4 560.12.004.000 Gear wheel segment
5 546.29.009.044 Magneto extractor M 27x1 Kokusan
66 276 807 Magneto extractor M 26x1,5 SEM
7 510.12.011.000 Circlip plier
8 544.12.012.000 Holding spanner for flywheel SEM
9 584.29.037.040 Mounting tool inner ring NJ 207
9 584.29.037.043 Mounting tool inner ring NJ 207
10 510.12.016.000 Protection cap
11 546.29.012.100 Holding spanner for flywheel Kokusan
13 501.12.013.000 Dial gauge 0-10 mm
14 501.12.030.000 Dial gauge support
16 6 899 785 Loctite 243 blue 6 ccm
17 151.12.017.000 Bearing puller
18 151.12.018.100 Internal bearing puller 18-23 mm
18 151.12.018.000 Internal bearing puller 12-16 mm
18 151.12.018.200 Internal bearing puller 5-7 mm
19 546.29.027.000 Clutch rivetting tool
25 0276 179 000 Extractor primary gear
26 503.29.050.000 Vent springe for hydraulic clutch
13
14
16
7
17
18
6
5
10
4
25
3
19
1
26
8
11
9

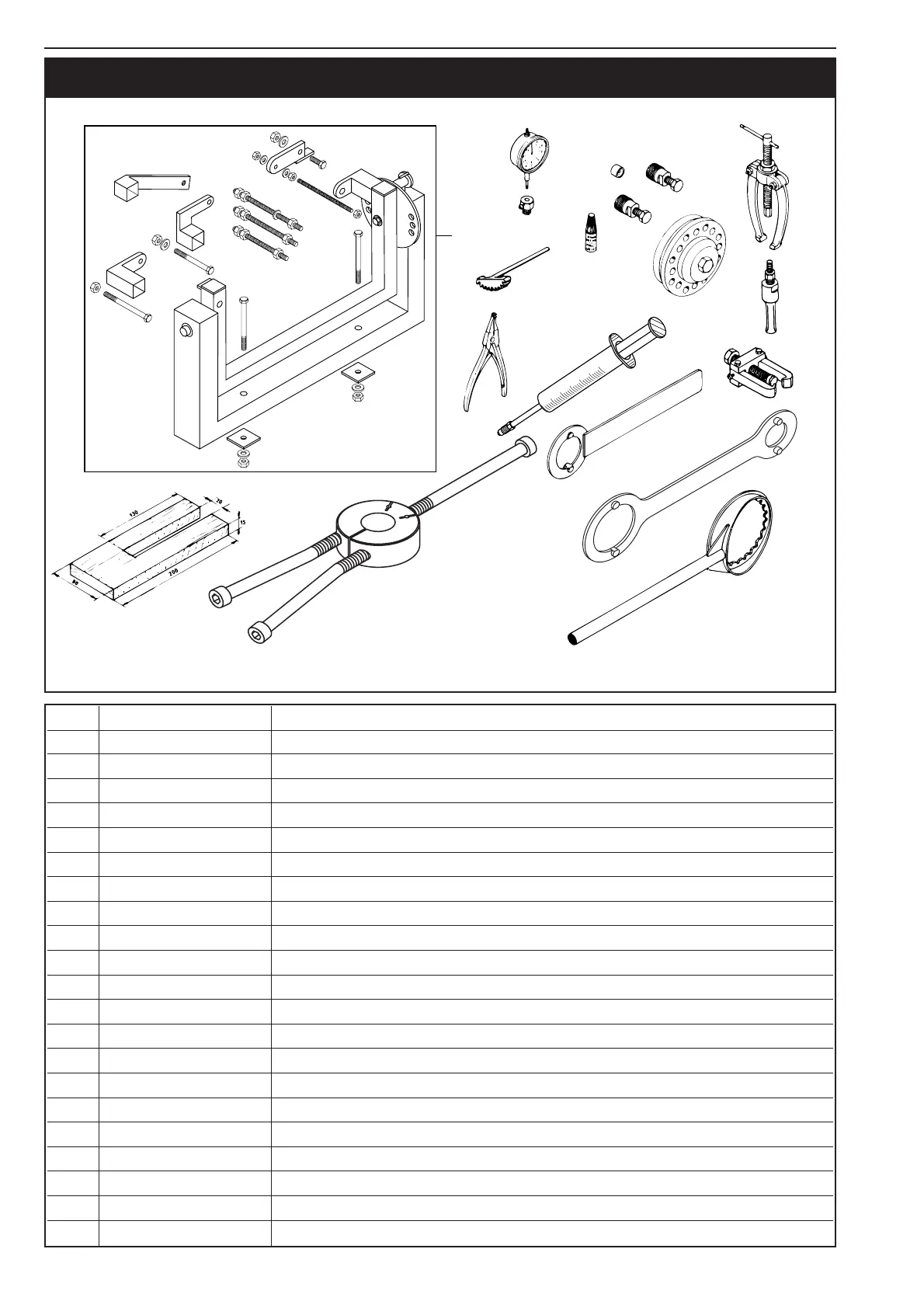

SPECIAL TOOLS – ENGINE 250 / 300 / 380

KTM EXC Specifications

General

Ignition	Kokusan
Starter	Kickstarter
Transmission	6-speed
Engine Type	Single Cylinder, 2-Stroke
Cooling	Liquid Cooled
Lubrication	Premix
