Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

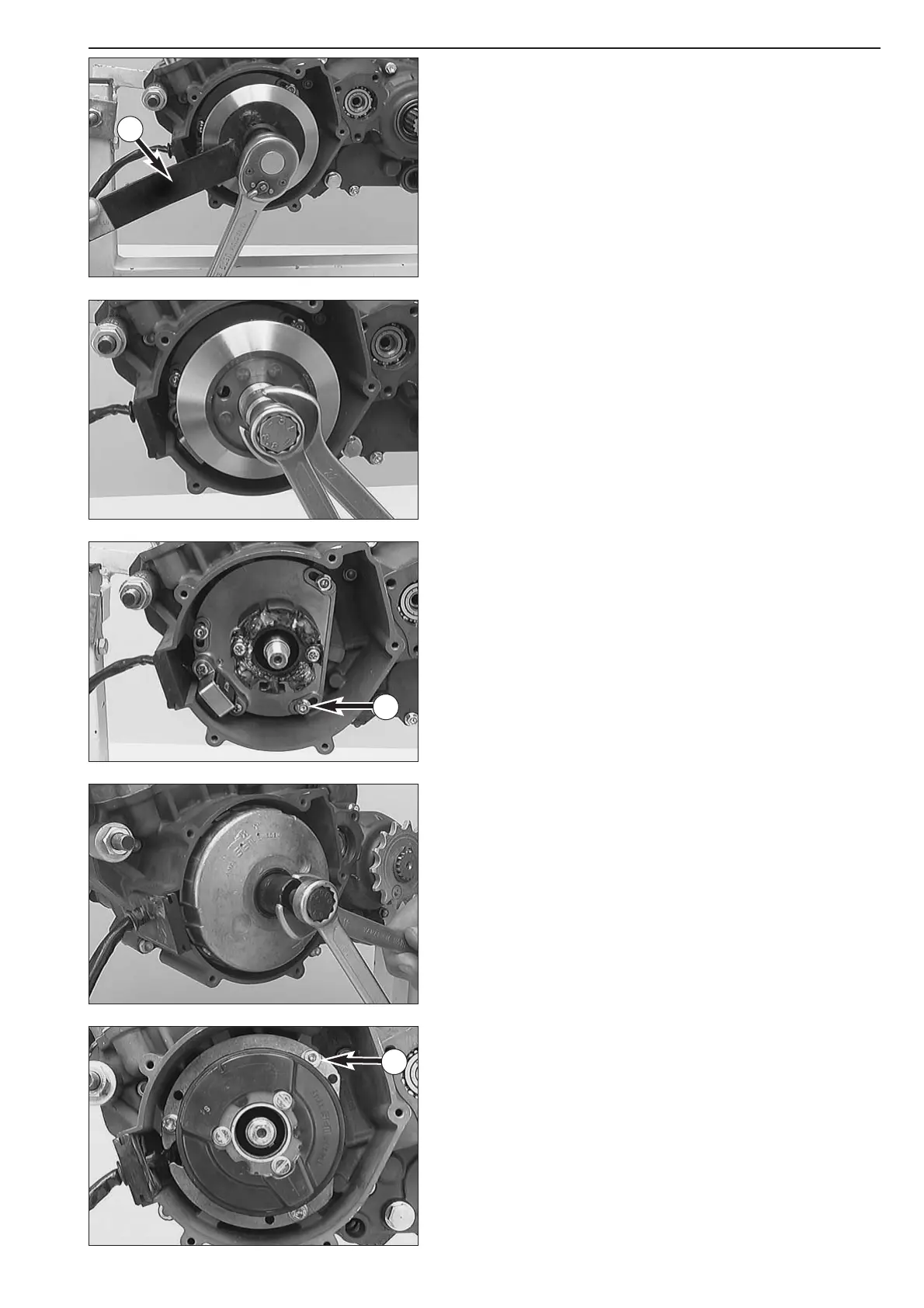

Dismounting of the ignition (Kokusan)
– Hold the flywheel with the holding spanner 1 and undo the collar nut.
– Put the protection cover on the crankshaft thread, twist in the flywheel
extractor and remove the flywheel.
– Undo the 3 screws
2 and remove the stator together with the base
plate.
Dismounting of the ignition (SEM)
– Hold the flywheel with the special tool and undo the collar nut.
– Place protective cap on crankshaft thread.
–Twist in the flywheel extractor and remove the flywheel.
– Loosen the 3 collar screws 3, and take base plate with stator out of
the casing.
1
2
3

KTM EXC Specifications

General

Ignition	Kokusan
Starter	Kickstarter
Transmission	6-speed
Engine Type	Single Cylinder, 2-Stroke
Cooling	Liquid Cooled
Lubrication	Premix
