Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

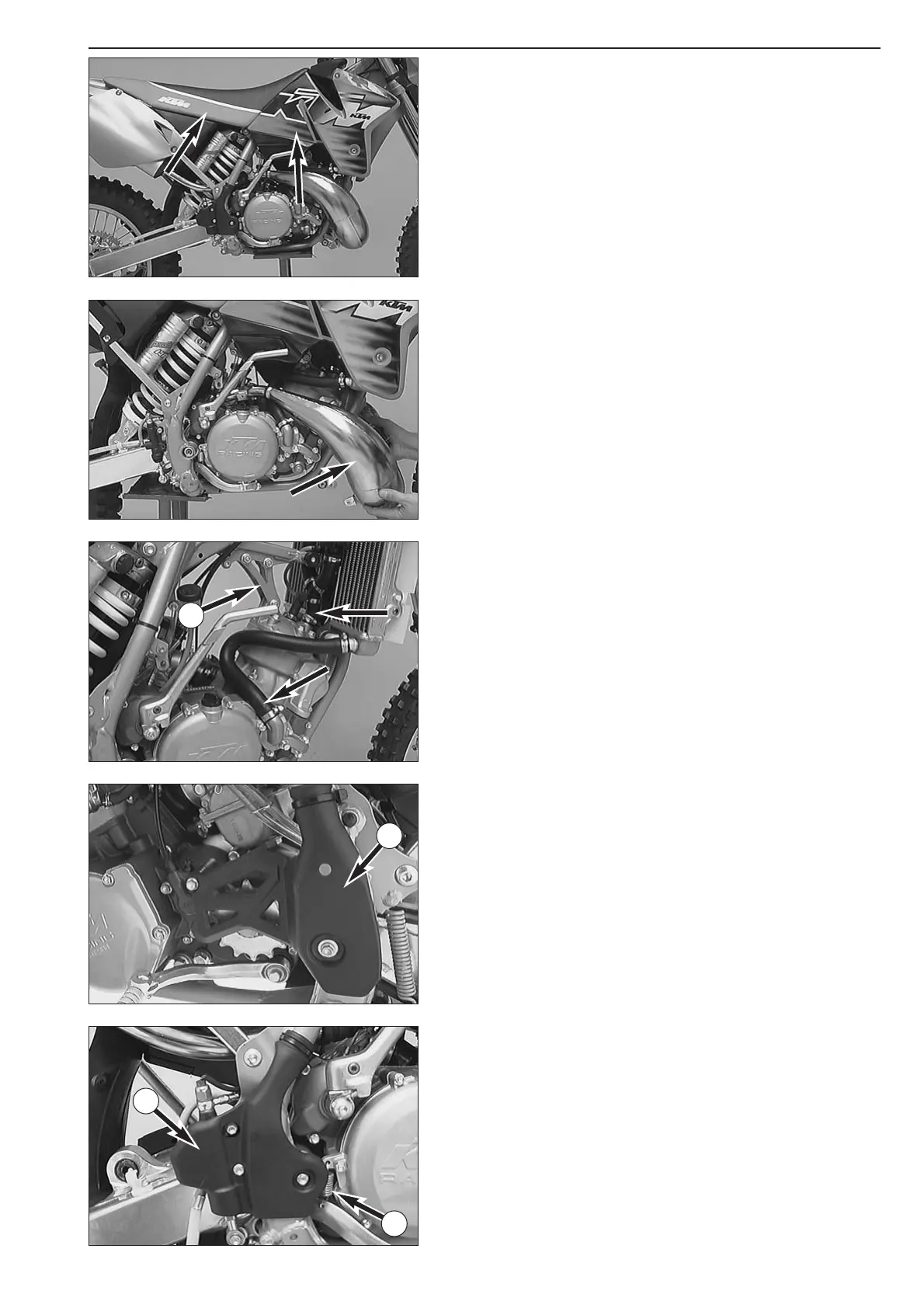

Dismounting the engine
– Clean motorcycle thoroughly.
–Prop up motorcycle on an appropriate stand.
– Remove seat, right side paneling, and tank with spoilers.
– Dismount exhaust system.
– Drain coolant, and disconnect radiator hoses from engine.
– Dismount engine strut
1.
– Disconnect plug-and-socket connector of ignition system and spark-
plug connector.
– Remove sprocket cover
2 and chain.
– Remove footbrake cylinder cover
3.
– Disengage and remove spring
4.
3-2C
1
2
3
4
