Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

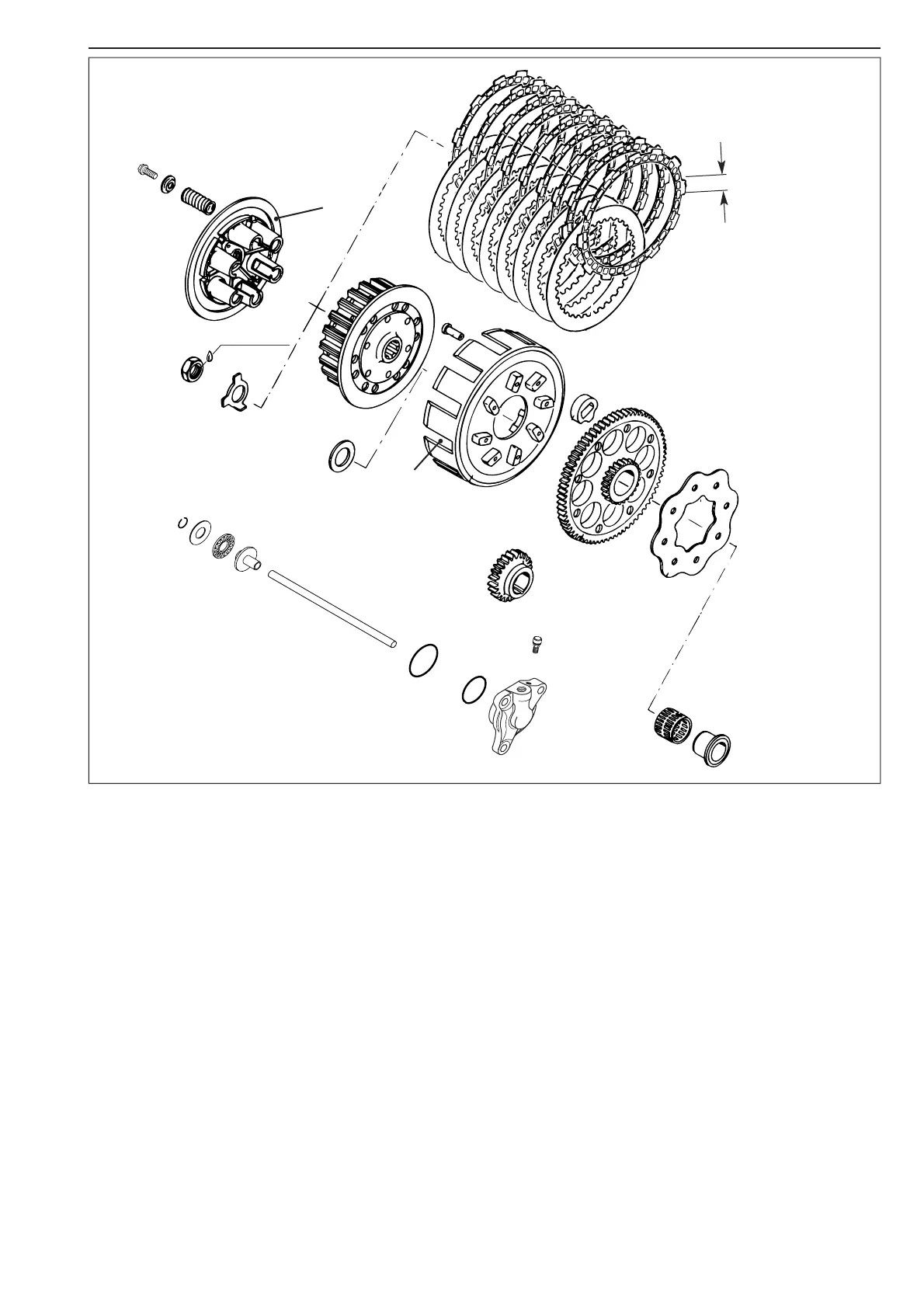

Clutch
Thrust bearing 1 check for wear
Push rod
2 Check for wear. Minimum length: 199 mm (new: 199.80 mm)
Clutch springs
3
New spring length 42,5 mm / 1.7 in (new 43 mm / 1.73 in). Replace all 6 springs if applicable.
9 Lining discs
4
Minimum thickness 2.60 mm (0.102 in) / new disc 2.70 mm (0.106 in). Discs must be plane; there must be minimum spacing of
13.50 mm (0.531 in) between starting surfaces.
8 Steel discs
5
Must be plane, check for mechanical damage.
Inner clutch hub
6
Check contact surfaces of steel discs on the inner clutch hub, maximum 0.50 mm (0.02 in) indentations.
Pressure cap
7
Check contact surfaces A between lining disc and pressure cap for signs of mechanical damage and score marks.
Outer clutch hub
8
Check start surfaces of clutch discs on for wear. If indentations exceed 0.50 mm (0.02 in), replace outer clutch hub (see below).
Check inner ring
9 and needle cage bk for wear.
5-10C
