4-5C

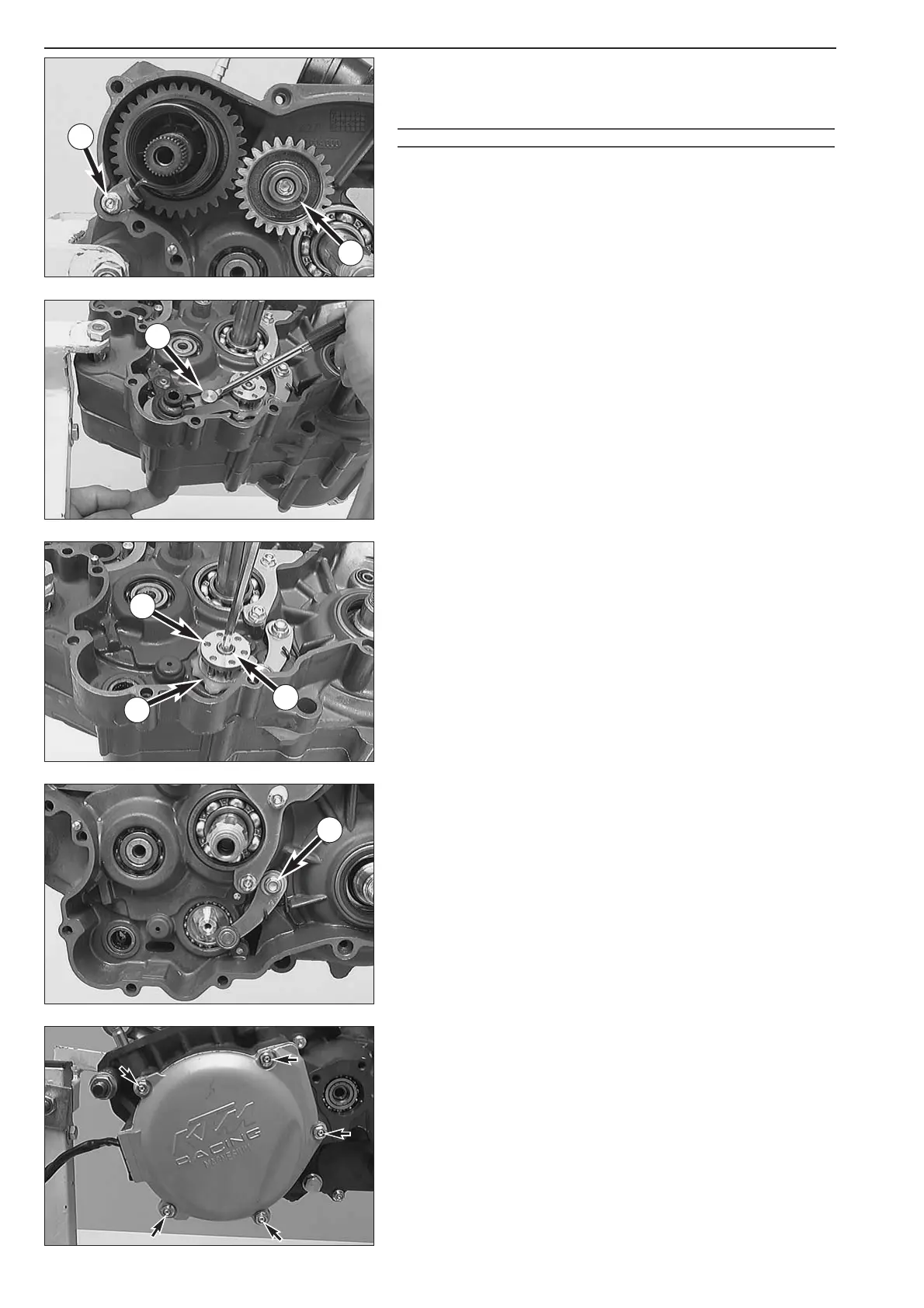

Dismounting of kickstarter
– Remove circlip 1 and kickstarter intermediate gear.
– Carefully release collar screw
2 kickstarter spring is tensioned, release
tension on kickstarter spring and unhook spring hanger.
!
CAUTION
!
C
AREFULLY RELEASE THE KICKSTARTER SPRING
! DANGER OF INJURY!
–Take the complete kickstarter shaft out of the housing.
–Take care of the stop disc, which could stay in the housing.
Dismounting of the shift lock
–Press the sliding plate 3 back with a screw driver so it no longer
engages with the driver for the shaft roller, at the same time remove
shift shaft from the housing.
NOTE: Watch the stop disc which remains in the housing.
– Remove allan head screw
4 and take driver for roller 5 and locking
piece
6 from the shift roller.
NOTE: From model 2002 driver for roller
5 and locking piece 6 are
made of aluminium.
NOTE: Disassemble locating lever only if the engine case must be
replaced.
– Remove screw
7 and locking lever with spring and bush.
Dismounting of ignition cover
– Undo the 5 screws and remove the ignition cover together with the
gasket.
1
2
3
4
5
6
7
