ELECTRICAL SYSTEM 15
163
15.2 Installing the 12-V battery
V00664-11

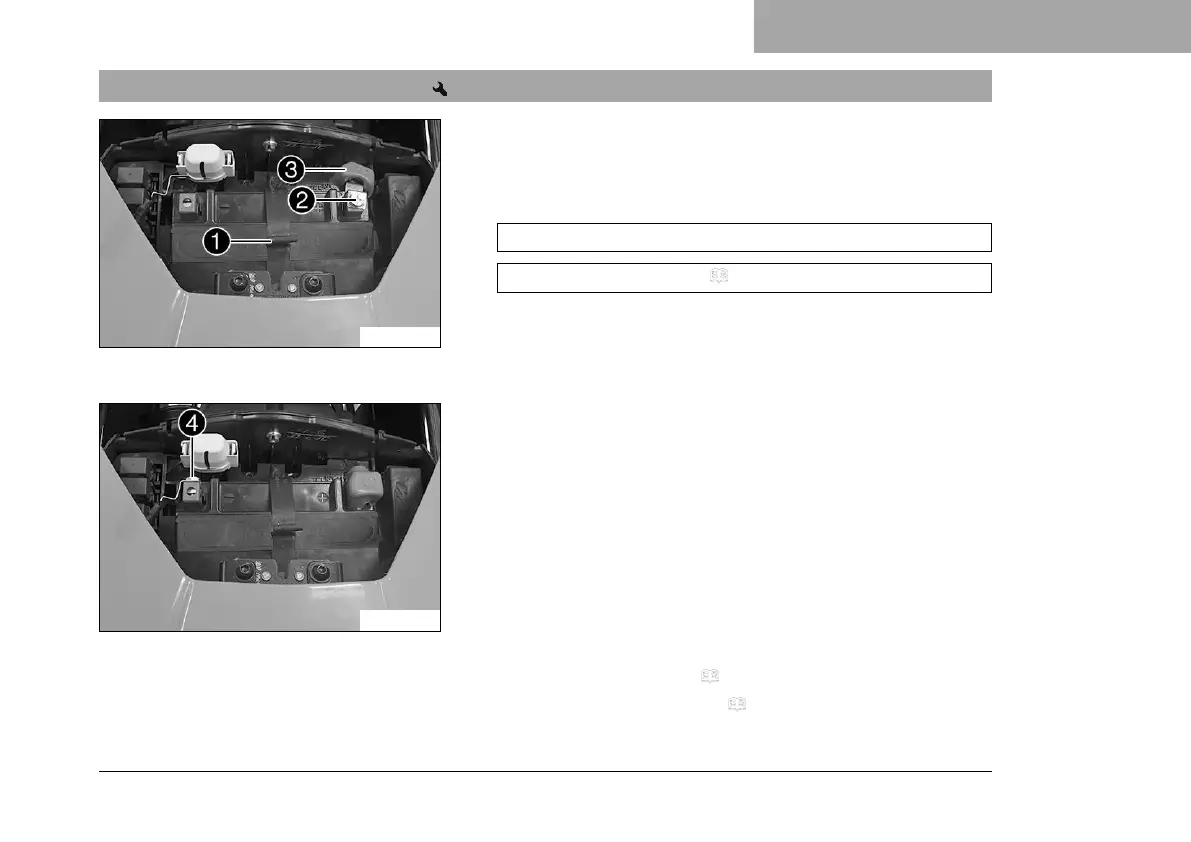

Main work
–
Mount rubber strap
1
on the battery compartment.
– Position the 12-V battery in the battery compartment.
Guideline
The terminals of the battery must face upwards.
12-V battery (ETZ-9-BS) ( p. 228)
–
Attach rubber strap
1
.
–
Position positive cable
2
and mount and tighten the screw.
–
Position positive terminal cover
3
.
V00663-11
–
Position negative cable
4
; mount and tighten the screw.
Finishing work
– Mount the battery cover. ( p. 120)
– Mount the front rider's seat. ( p. 107)
