15 ELECTRICAL SYSTEM 136
15.5 Changing the fuses of individual power consumers
Info

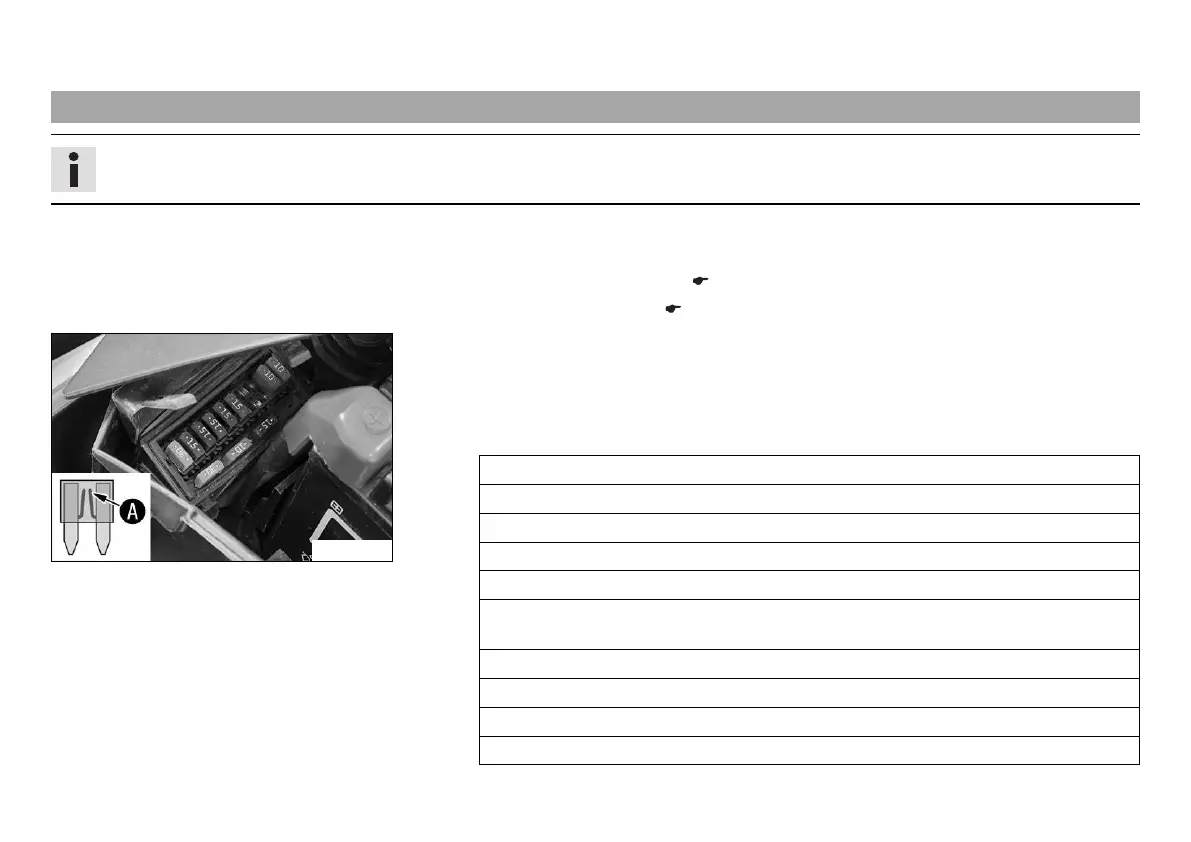

The fuse box with the main fuse and fuses of the individual power consumers is located next to the positive terminal of the battery.
Preparatory work
– Switch off all power consumers and switch off the engine.
– Remove the front rider's seat. ( p. 81)
– Remove the battery cover. ( p. 92)
L02202-10
Main work
(RC 200)
– Open fuse box cover.
– Remove the defective fuse.
Guideline
Fuse 1 - 30 A - main fuse
Fuse 2 - 15 A - start auxiliary relay, alarm system (OPTIONAL)
Fuse 3 - 15 A - control unit, power relay
Fuse 4 - 15 A - ignition coil
Fuse 5 - 15 A - radiator fan
Fuse 6 - 15 A - horn, brake light, turn signal, high beam, low beam, parking light,
tail light, license plate lamp
Fuse 7 - not used
Fuse 8 - not used
Fuse 9 - 10 A - auxiliary equipment
Fuse 10 - 10 A - auxiliary equipment
