15 ELECTRICAL SYSTEM 144

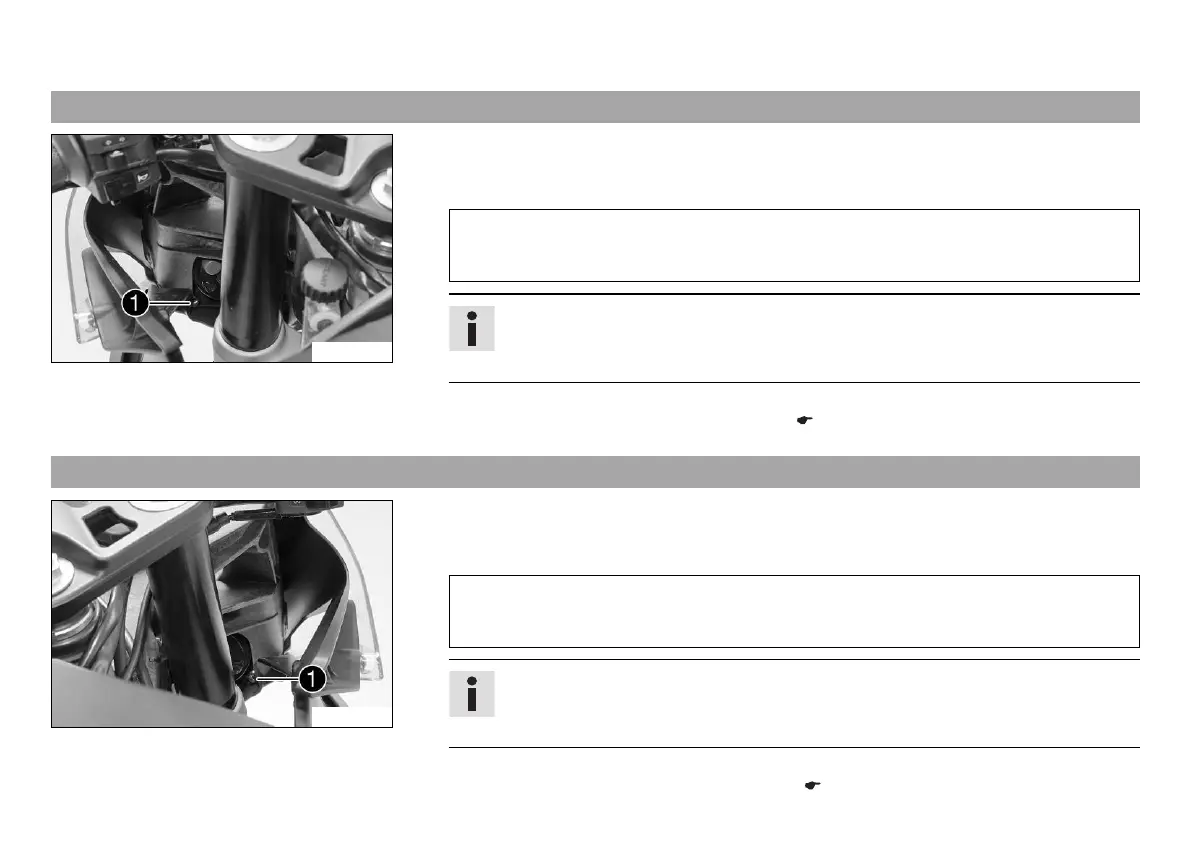

15.10 Adjusting the headlight range of the low beam
L02164-10
Main work
–
Adjust the beam range of the low beam by turning screw
.
Guideline
For a motorcycle with rider, and with luggage and a passenger if applicable, the
light/dark boundary must be exactly on the lower mark (applied in: Checking the low
beam headlight setting).
Info
Turn clockwise to increase the headlight range; turn counterclockwise to reduce
the headlight range.
Finishing work
– Check the low beam headlight adjustment. ( p. 142)
15.11 Adjusting the headlight range of the high beam
L02163-10
Main work
–
Adjust the beam distance of the high beam by turning screw
.
Guideline
For a motorcycle with rider, and with luggage and a passenger if applicable, the
light/dark boundary must be exactly on the lower mark (applied in: Checking the high
beam headlight setting).
Info
Turn clockwise to increase the headlight range; turn counterclockwise to reduce
the headlight range.
Finishing work
– Check the high beam headlight adjustment. ( p. 143)
