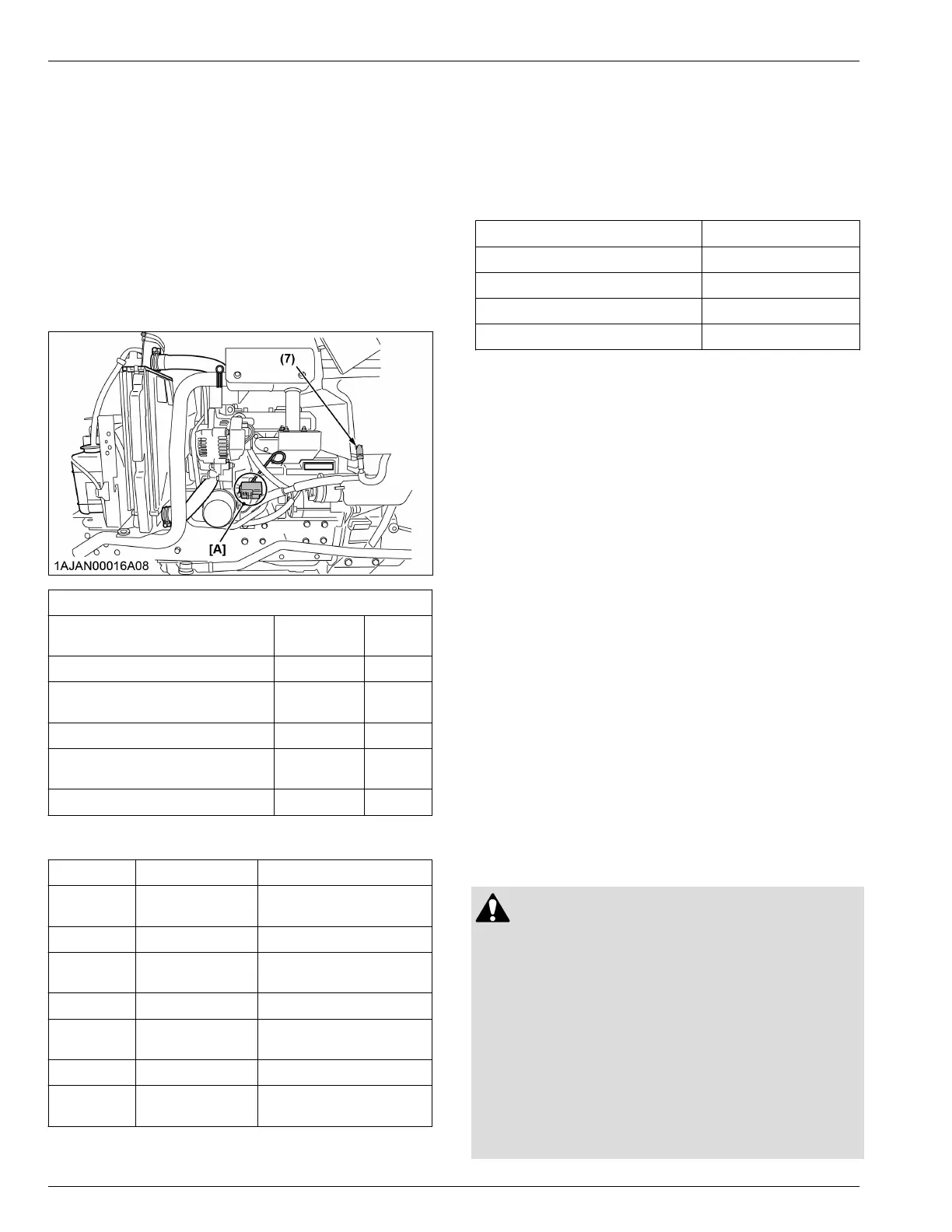

Page #88 background image
1. If any of the fuses should blow, replace with a new
one of the same capacity.
IMPORTANT :
Before replacing a blown fuse, determine
why the fuse blew and make any necessary
repairs. Failure to follow this procedure may
result in serious damage to the tractor
electrical system. Refer to the ENGINE
TROUBLESHOOTING on page 85 of this
manual or your local KUBOTA Dealer for
specific information dealing with electrical
problems.
[A]
ALTERNATOR
FLASHER
10 A (1)
HEAD LIGHT 20 A (2)
WORK LIGHT
OUTLET
15 A (3)
HAZARD 10 A (4)
LIGHT
ACC
30 A (5)
KEY STOP 30 A (6)
Protected circuit
Fuse No.
Capacity (A) Protected circuit
(1) 10
ALTERNATOR
FLASHER
(2) 20 HEAD LIGHT
(3) 15
WORK LIGHT
OUTLET
(4) 10 HAZARD
(5) 30
LIGHT
ACC
(6) 30 KEY STOP
(7)
Slow blow fuse
40
Check circuit against wrong
battery connection.
4. Replacing light bulb
Head light
1. Take the bulb out of the light body and replace with
a new one.
Other lights
1. Detach the lens and replace the bulb.
Light Capacity
Head light 12 V, 23 W
Tail / turn signal / hazard light 12 V, 21 / 5 W
Turn signal / hazard light 12 V, 23 W
Instrument panel light 12 V, 1.7 W
Replace the following parts if any deterioration (crack,
hardening, scar or deformation) or damage occurred.
However, must be replaced every 4 years regardless of
the condition.
5. Replacing radiator hose (water
pipes)
1. Replace the hoses and clamps.
(See Checking radiator hoses and clamps on page
80)
6. Replacing fuel lines
Consult your local KUBOTA Dealer for this service.
7. Replacing intake air line
Consult your local KUBOTA Dealer for this service.
8. Washing the tractor
Misuse of the high pressure washer may cause
personal injury or machine damage, as well as the
failure or malfunction of the machine. Follow the
instruction manual and the labels on the high pressure
washer, and use it properly.
CAUTION
To avoid personal injury:
To prevent the machine from being damaged,
set the washing nozzle to spreading water, and
keep the distance 2 m away from the machine to
clean it. When the water is directed at a pin
point area, or when the machine is washed from
too close a position with a high pressure flow:
The cover of the wirings may be damaged or
the wiring may be cut off, causing fire.
The hydraulic hose may be damaged,
causing a high pressure oil blow out. This
may cause injury.
 PERIODIC SERVICE SERVICE AS REQUIRED
82
B2401DT, B2401DTWO, B2401DTN
