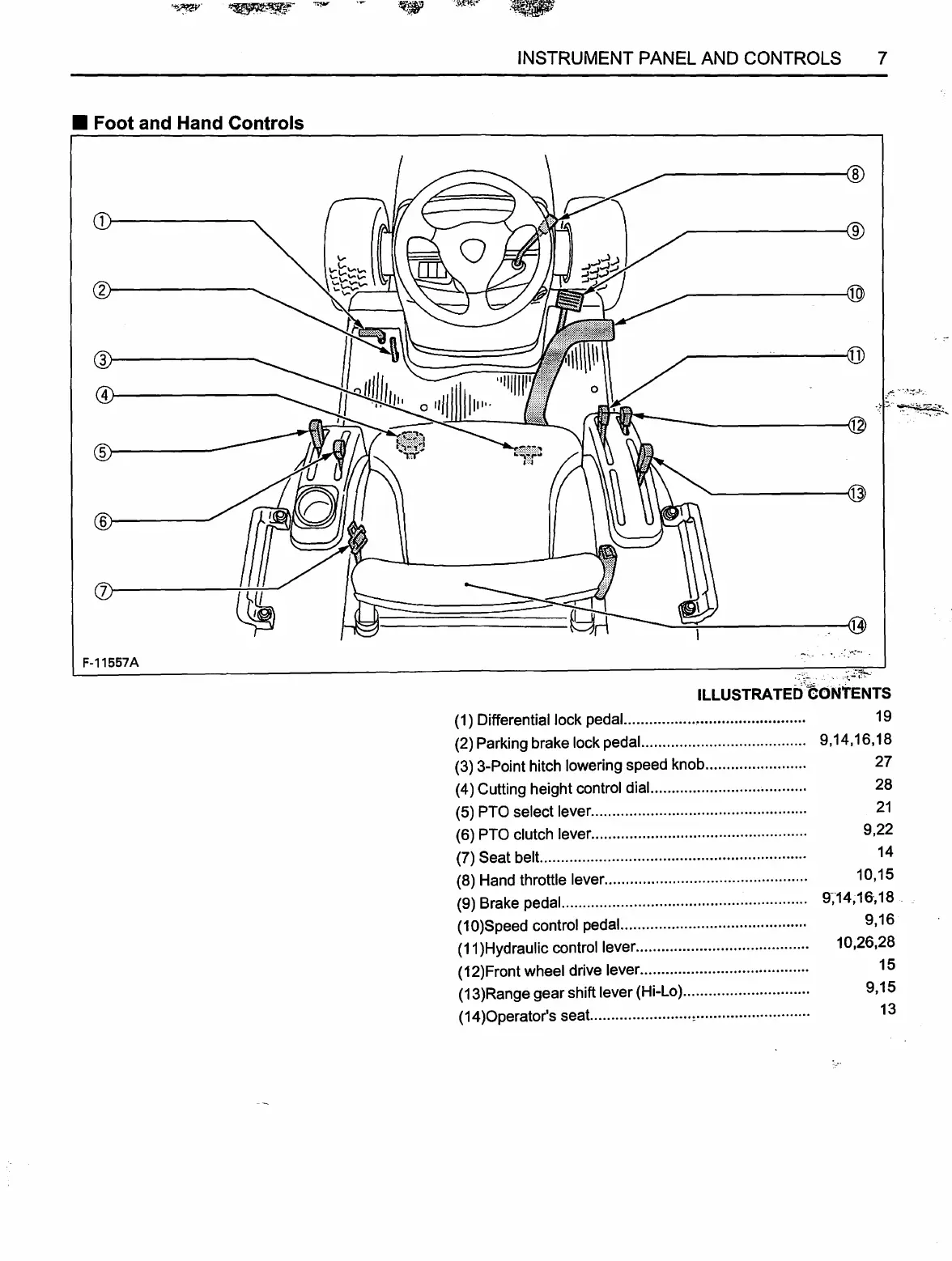

■ Foot and Hand Controls
2>--------
3 }--------
51-------
51-----_.,
F-11557A
INSTRUMENT PANEL AND CONTROLS 7
------------'8
-------......J9
-------~11
---------<13
•,s-. ·.· -:~...;~-
ILLUSTRA TEifcONTENTS
( 1) Differential lock pedal........................................... 19
(2) Parking brake lock pedal....................................... 9, 14, 16, 18
(3) 3-Point hitch lowering speed knob........................ 27
(4) Cutting height control dial..................................... 28
(5) PTO select lever................................................... 21
(6) PTO clutch lever................................................... 9,22
(7) Seat belt............................................................... 14
(8) Hand throttle lever................................................ 10, 15
(9) Brake pedal.......................................................... 9:14;16, 18
(10)Speed control pedal............................................ 9, 16
(11 )Hydraulic control lever......................................... 10,26,28
(12)Front wheel drive lever........................................ 15
( 13)Range gear shift lever (Hi-Lo).............................. 9, 15
(14)Operator's seat.. ......................
!........................... 13
