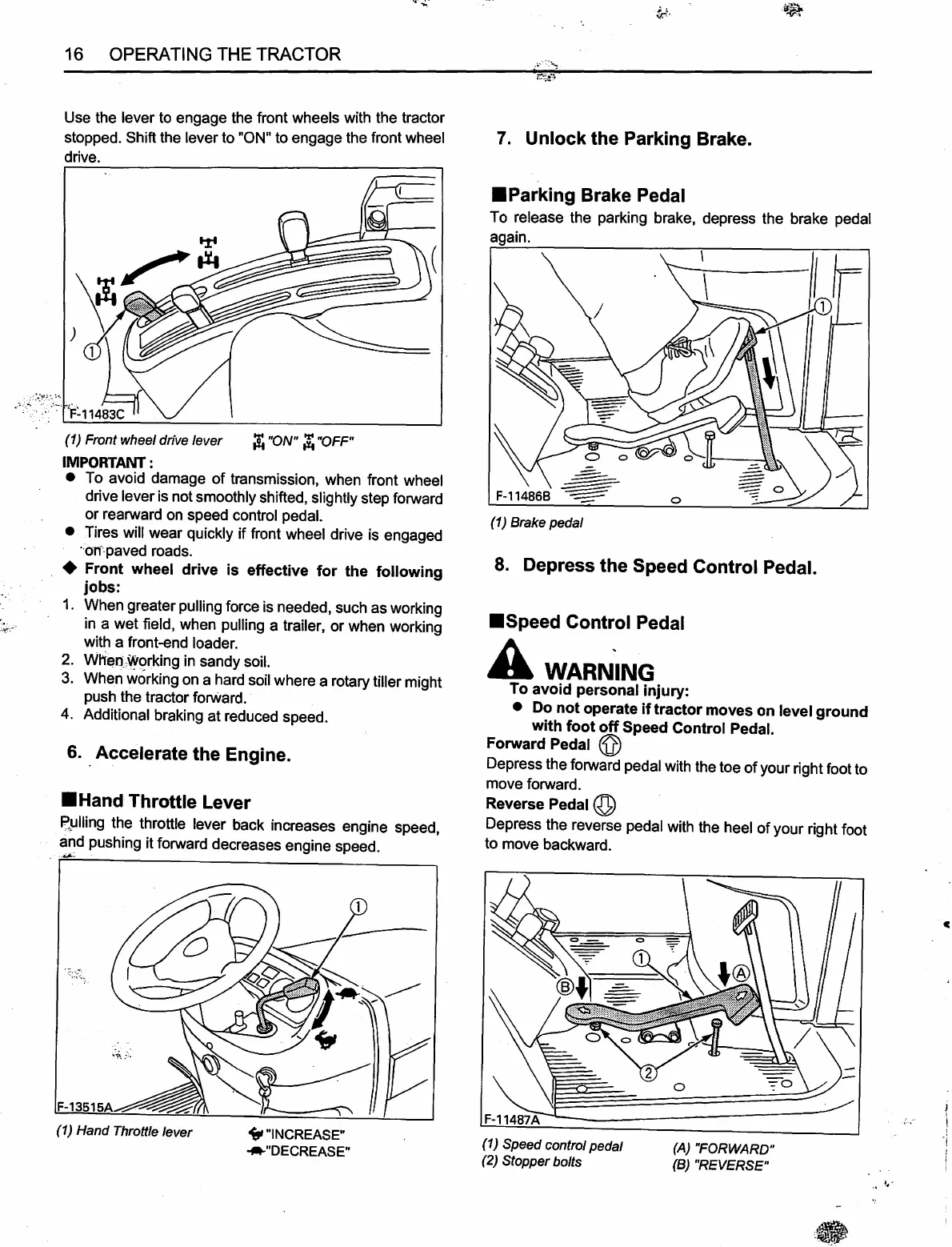

16 OPERATING THE TRACTOR
Use the lever to engage the front wheels with the tractor
stopped. Shift the lever to "ON" to engage the front wheel
drive.
t:tt
~~=
)
1
1=~11483C
(1) Front wheel drive lever ~"ON"~ "OFF"
IMPORTANT:
• To avoid damage of transmission, when front wheel
drive lever is not smoothly shifted, slightly step forward
or rearward on speed control pedal.
• Tires will wear quickly if front wheel drive is engaged
··arr.paved roads.
♦
Front wheel drive is effective for the following
jobs:
1. When greater pulling force is needed, such as working
in a wet field, when pulling a trailer, or when working
with a front-end loader.
2. When:Working in sandy soil.
3. When working on a hard soil where a rotary tiller might
push the tractor forward.
4. Additional braking at reduced speed.
6 . . Accelerate the Engine.
■
Hand Throttle Lever
l?,.µlling the throttle lever back increases engine speed,
and pushing it forward decreases engine speed.
........ .
(1) Hand Throttle lever
if, "INCREASE"
--."DECREASE"
7. Unlock the Parking Brake.
■
Parking
Brake Pedal
To release the parking brake, depress the brake pedal
again.
0
(1) Brake pedal
8. Depress the Speed Control Pedal.
■
Speed
Control Pedal
AwARN.ING
To avoid personal injury:
• Do not operate if tractor moves on level ground
with foot off Speed Control Pedal.
Forward Pedal
@
Depress the forward pedal with the toe of your right foot to
move forward.
Reverse Pedal @
Depress the reverse pedal with the heel of your right foot
to move backward .
(1) Speed control pedal
(2) Stopper bolts
(A) "FORWARD"
(BJ "REVERSE"
C
To Next Page
