PERIODIC SERVICE OF THE TRACTOR88
BAdjusting Brake Pedal
To avoid personal injury:
A Stop the engine, remove the key, lower the
implement to the ground, and chock the wheels
before checking brake pedal.
A Even if the brake pedal free travel is within the
limitation, adjust the brake pedal following the
procedure below.
A If you are not able to adjust, consult your local
KUBOTA Dealer.
1. Release the parking brake.
2. Loosen the lock nut and turn the turnbuckle to adjust
the rod length so that the brake pedal free travel is 10
mm.
3. Extend the turnbuckle one additional turn.
4. Retighten the lock nut.
5. Depress the brake pedal several times and make sure
the brake pedal free travel is from 25 to 35 mm.

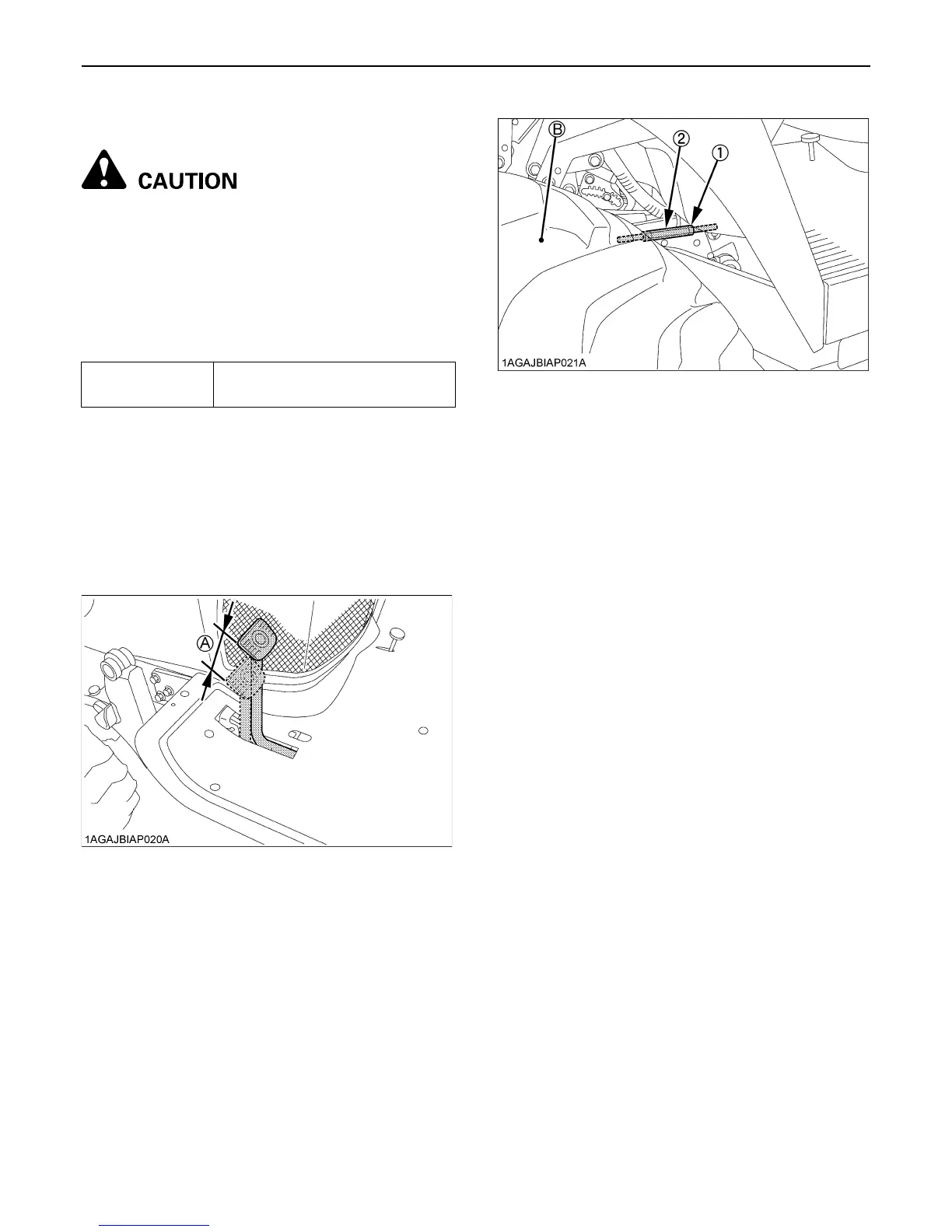

Proper brake
pedal free travel
25 to 35 mm on the pedal
(1) Lock nut
(2) Turnbuckle
(A) Free travel
(B) Right rear tire
