6 SPECIFICATIONS OF THE LOADER

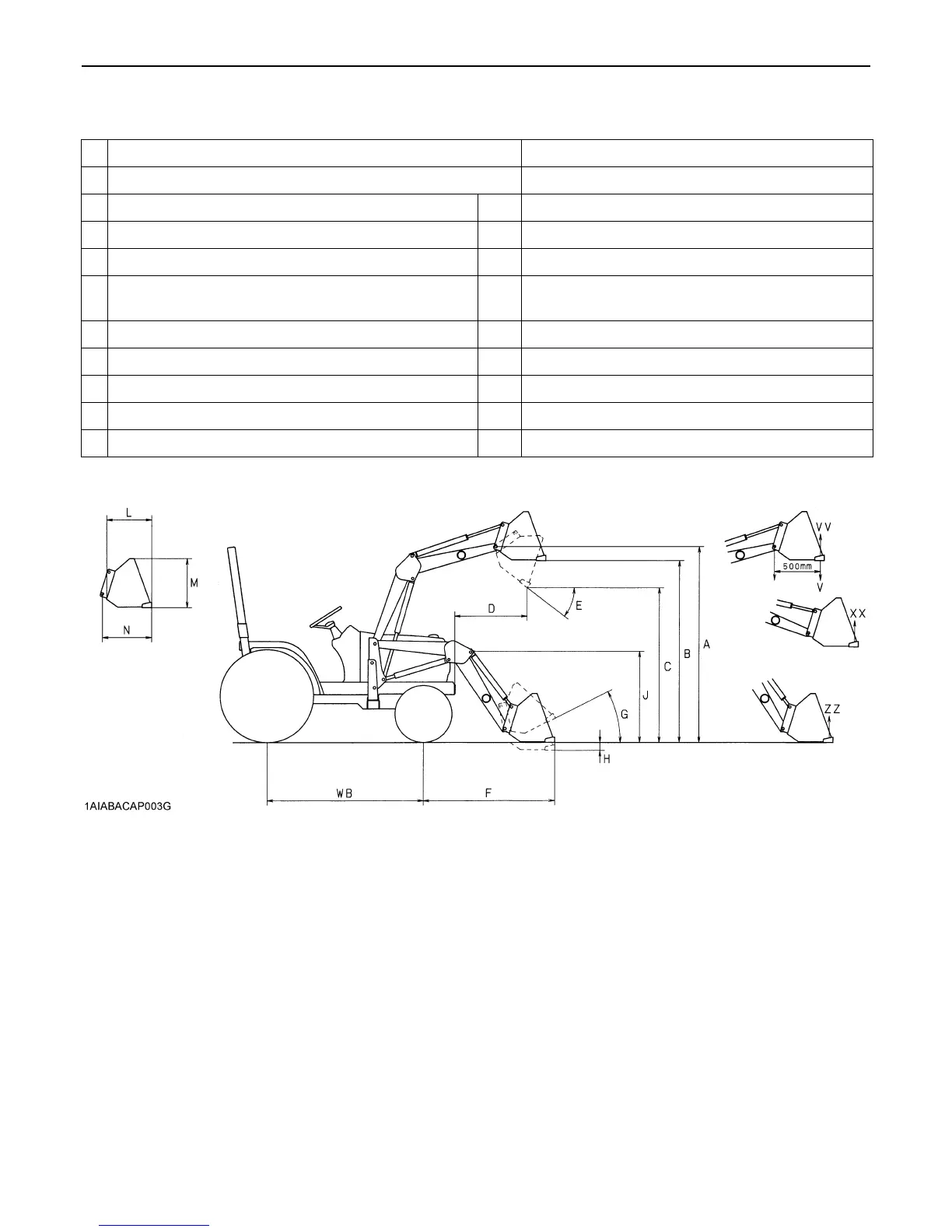

DIMENSIONAL SPECIFICATIONS
LOADER MODEL LA240A / LA240A AU-SG
TRACTOR MODEL BX25DLB-AU
A MAX. LIFT HEIGHT (TO BUCKET PIVOT PIN) mm 1810
B MAX. LIFT HEIGHT UNDER LEVEL BUCKET mm 1680
C CLEARANCE WITH BUCKET DUMPED mm 1330
D
REACH AT MAX. LIFT HEIGHT
(DUMPING REACH)
mm 660
E MAX. DUMP ANGLE deg. 45
F REACH WITH BUCKET ON GROUND mm 1390
G BUCKET ROLL-BACK ANGLE deg. 29
H DIGGING DEPTH mm 120
J OVERALL HEIGHT IN CARRYING POSITION mm 990
