OPERATING THE LOADER64

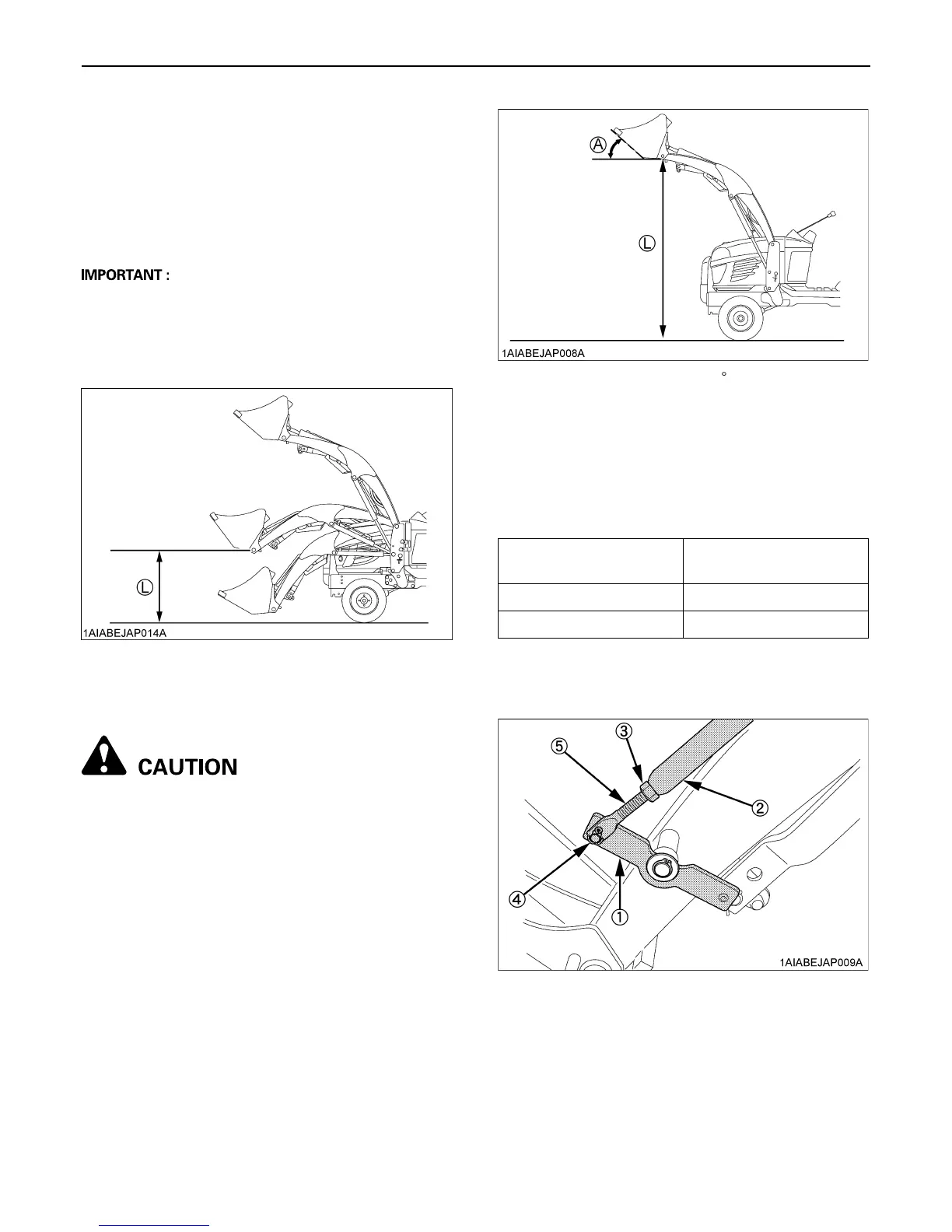

SPILL GUARD (SPILL GUARD MODEL
ONLY)
The spill guard system prevents the object in the bucket
from falling to the operator’s space.
When the operator operates the control lever to the roll
back position at the upper most boom position, this
system restricts the bucket roll back movement.
A Check the motion of spill guard function, before
operating the loader.
During operation, the spill guard will operate from the
point equal to or higher than height (L).
BAdjustment of spill guard link
To avoid personal injury:
A Keep your hand away from links or boom when
operating the loader.
1. Start engine and lift the boom to appointed height (L).
2. Rolled back the bucket fully and check the rollback
angle (A).
3. If the rollback angle is not the same as following
illustration, adjust the length of connecting rod.
C Adjustment of spill guard link
1. Remove the cotter pin.
2. Remove the rod from the link.
3. Unfasten the lock nut and adjust the length of
connecting rod by turning rod.
4. Tighten the lock nut and set the rod to the link with the
cotter pin.
(L) 700 mm
(A) 45
(L) Highest position
Condition of the bucket at
appointed height
Adjustment
Bucket rolled back too far Shorten connecting rod
Bucket dumped too far Lengthen connecting rod
(1) Link
(2) Connecting rod
(3) Lock nut
(4) Cotter pin
(5) Rod
