HYDRAULIC UNIT50
AUXILIARY HYDRAULICS
On the tractor hydraulic outlet is provided.
To avoid serious personal injury:
A Escaping hydraulic fluid under pressure can
have sufficient force to penetrate skin, causing
serious personal injury.
Before disconnecting lines, be sure to relieve
all pressure.
Before applying pressure to system, be sure all
connections are tight and that lines, tubes and
hoses are not damaged.
Fluid escaping from a very small hole can be
almost invisible. Use a piece of cardboard or
wood, rather than hands to search for
suspected leaks.
If injured by escaping fluid, see a doctor at
once. Serious infection or allergic reaction will
develop if proper medical treatment is not
administered immediately.

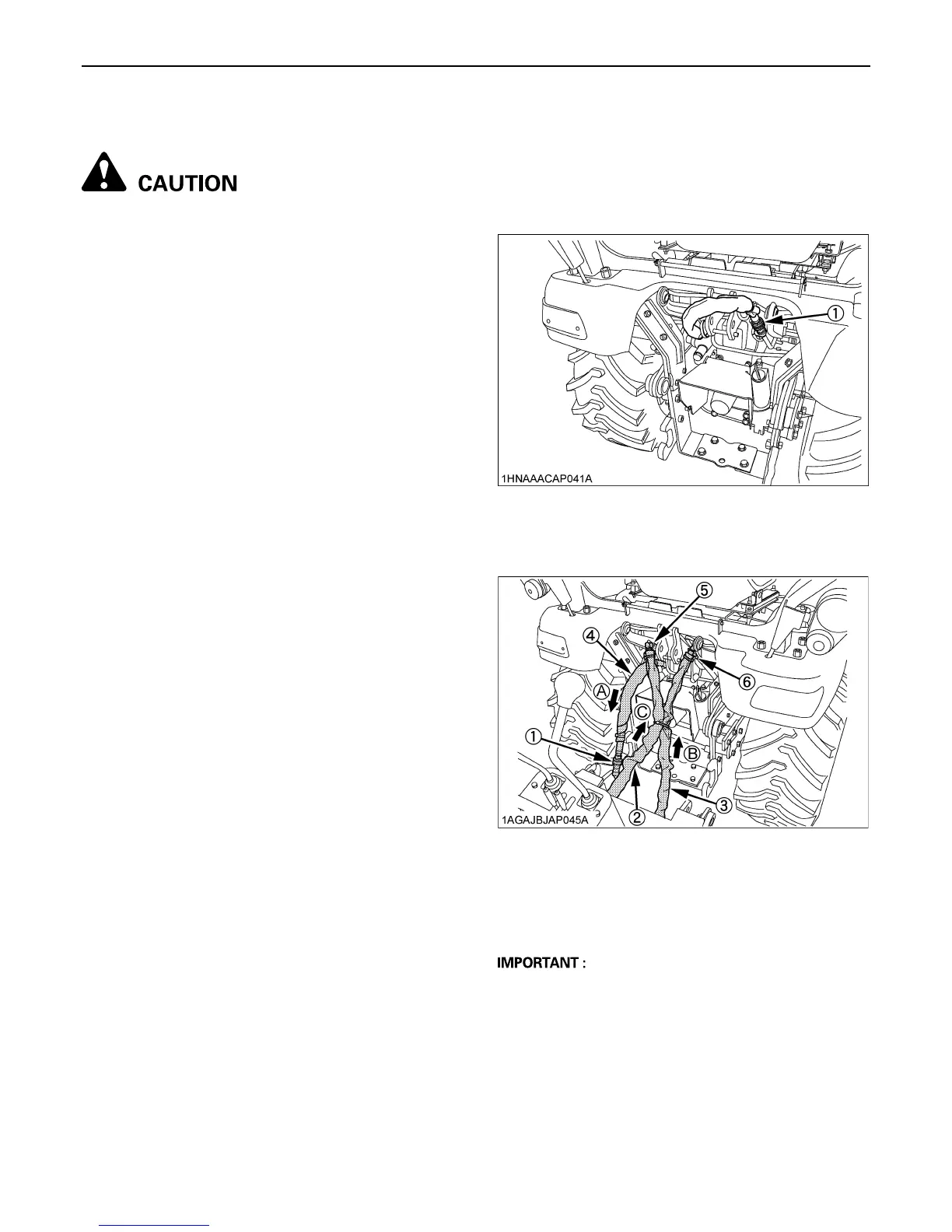

BHydraulic Outlet
It can be used with the BT602 Backhoe.
When mounting the backhoe.
1. Disconnect the coupler.
2. Route the implement inlet, outlet, and power beyond
hose as shown in the illustration.
A For hydraulic outlet, be sure to use the control valve of
the "Power beyond type" (with relief valve) and third
line return to tank for the operation of hydraulic block.
(1) Coupler
(1) Inlet hose (backhoe)
(2) Outlet hose (backhoe)
(3) Power beyond hose (backhoe)
(4) Outlet hose (tractor)
(5) Return pipe (tractor)
(6) Power beyond pipe (tractor)
(A) To Backhoe (outlet)
Max. flow
14 L/min.
(B) From Backhoe (inlet)
(C) Return to tank
