1-S40
GL6000, GL7000, GL9000, GL11000, WSM
ENGINE

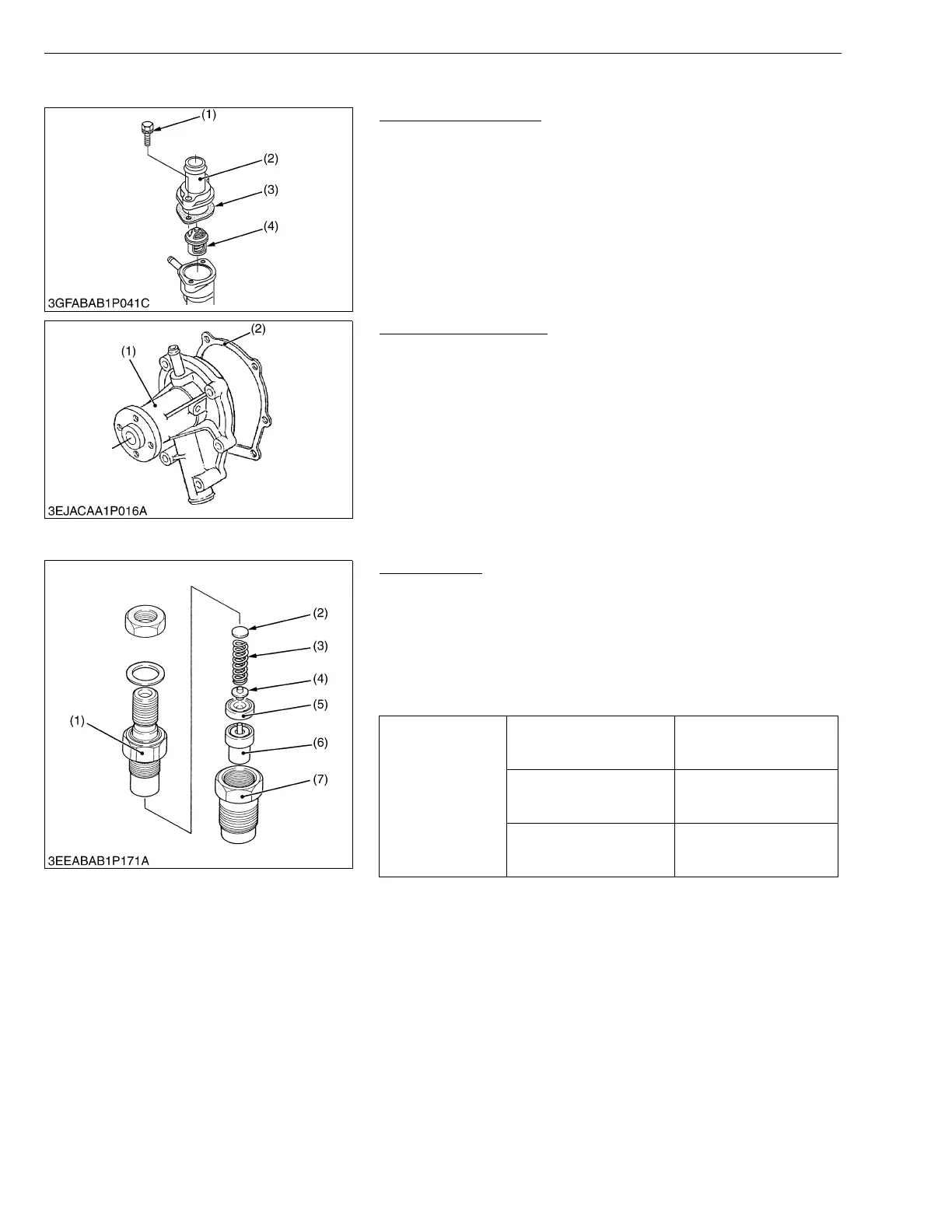

(5) Water Pump
Thermostat Assembly
1. Remove the thermostat cover mounting screws (1), and remove
the thermostat cover (2).
2. Remove the thermostat assembly (4).
(When reassembling)
• Apply a liquid gasket (Three Bond 1215 or equivalent) to both
side of the gasket (3).
W10393690
Water Pump Assembly
1. Loosen the tension adjustment screw, and remove the fan belt.
2. Remove the fan and fan pulley.
3. Remove the water pump assembly (1) from the gear case cover.
4. Remove the water pump flange.
(When reassembling)
• Apply a liquid gasket (Three Bond 1215 or equivalent) to the both
sides of gasket (2).
W10395040
(6) Injection Nozzle
Nozzle Holder
1. Secure the nozzle retaining nut (7) with a vise.
2. Remove the nozzle holder (1), and take out parts inside.
(When reassembling)
• Assemble the nozzle in clean fuel oil.
• Install the push rod (4), noting its direction.
• After assembling the nozzle, be sure to adjust the fuel injection
pressure.
W1062045
(1) Thermostat Cover Mounting Screw
(2) Thermostat Cover
(3) Thermostat Cover Gasket
(4) Thermostat Assembly
(1) Water Pump Assembly (2) Water Pump Gasket
Tightening torque
Nozzle holder
34.3 to 39.2 N·m
3.5 to 4.0 kgf·m
25.3 to 28.9 lbf·ft
Overflow pipe nut
19.6 to 24.5 N·m
2.0 to 2.5 kgf·m
14.5 to 18.1 lbf·ft
Nozzle holder assembly
49.0 to 68.6 N·m
5.0 to 7.0 kgf·m
36.2 to 50.6 lbf·ft
(1) Nozzle Holder
(2) Adjusting Washer
(3) Nozzle Spring
(4) Push Rod
(5) Distance Piece
(6) Nozzle Piece
(7) Nozzle Retaining Nut
KiSC issued 05, 2015 A

Kubota GL11000 Specifications

General

Model	GL11000
Type	Portable Generator
Fuel Type	Diesel
Fuel Tank Capacity	28 liters
Frequency	50 Hz
Voltage	230 V
Starting System	Electric Start
Phase	Single Phase
Engine	Kubota D722
Noise Level at 7 m	72 dBA
