Kubota L245 User Manual

Wiring Diagrams
KUBOTA
Head lamp
12V35/35W
Head lamp
12V 35/35W
Wire harness 3
Starter
Wire harness 2
Alternator
3R
Oil pressure switch
WG
WB
0B5R
WB
WG
Or
0.85R
2BW
Color of Wire Harness
B
W
R
G
Or
Y
Br
L
WB
BW
WR
WG
RB
RW
GB
GW
LW
Black
White
Red
Green
Orange
Yellow
Brown
Blue
White/Black
Black/White
White/Red
White/Green
Red/Black
Red/White
Green/Black
Green/Whiie
Blue/White
0 ,
Safety
switch
^ r-—I
"•*" ,1 I Horn switch
LW c ac 3 L f " I (Optional)
Glow plug
WB
Horn
(Optional)
WG
WR
Battery charge
lamp 12V 3.4W
BW
3BW
Fuse box
\
Regulator
Glow plug
indicator
Hazard unit
GB
Wire harness 1
RB
GB
Wire harness 7
Wire harness 5
0--
Wire
harness 6 [
0--.
Hazard lamp
(Optional)
12V 32 cp.
Tail lamp
(Optional)
12V 8W
Working lamp
(Optional)
12V 35W
Tail lamp
(Optional)
12V 8W
Hazard lamp
(Optional)
12V 32 cp.

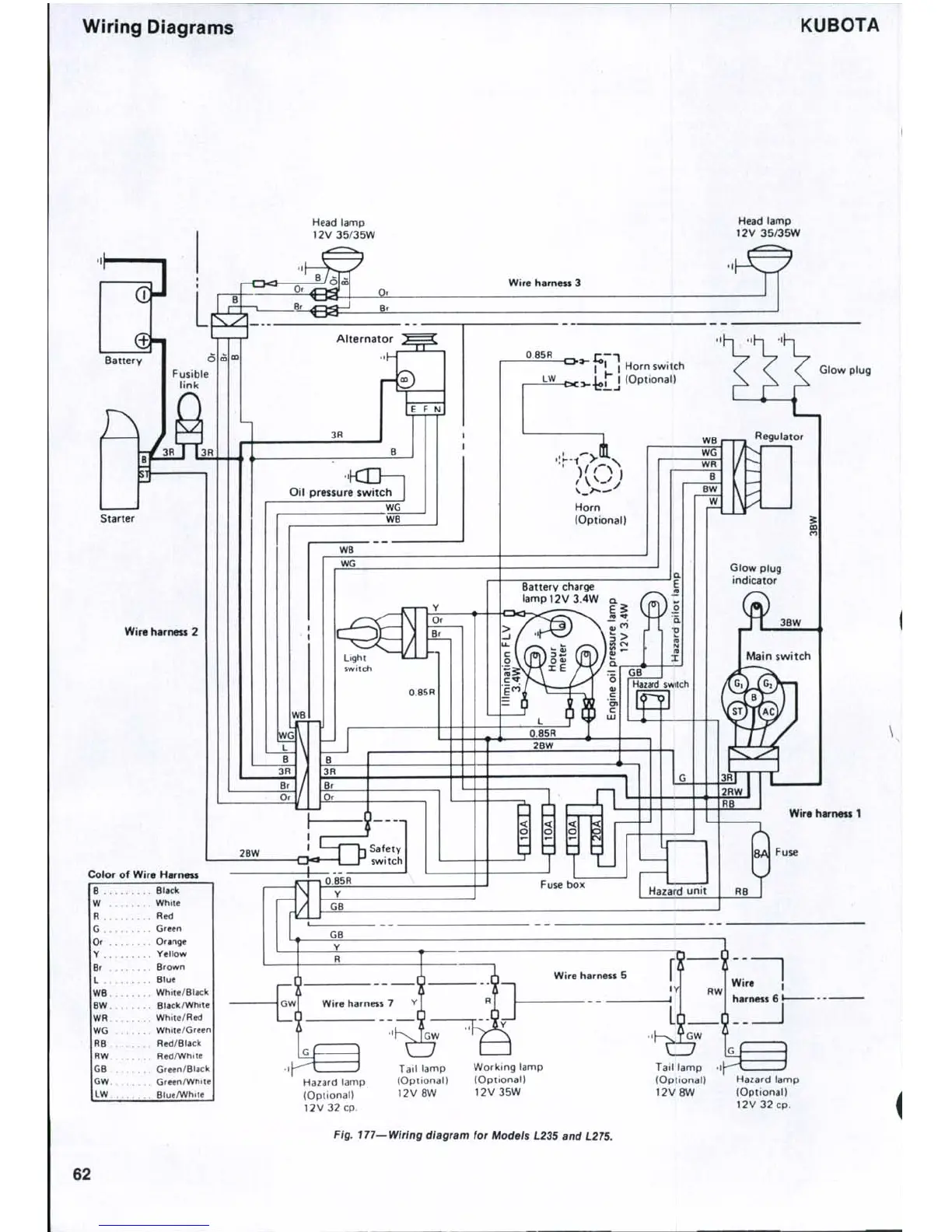

Fig. 177—Wiring diagram for Models L23S and L275.
62

Kubota L245 Specifications

General

Engine Type	Diesel
Engine Power	24 hp
Cylinders	3
Type	Compact utility tractor
Horsepower	24 hp
Gears	8 forward and 2 reverse
Height	77.2 inches
Ground Clearance	13.8 inches
Fuel Capacity	6.6 gal
Transmission	8-speed
PTO Horsepower	21 hp
Hydraulic System Capacity	4.5 gal
3-Point Hitch	Category I
Lift Capacity	600 kg
Width	127 cm
