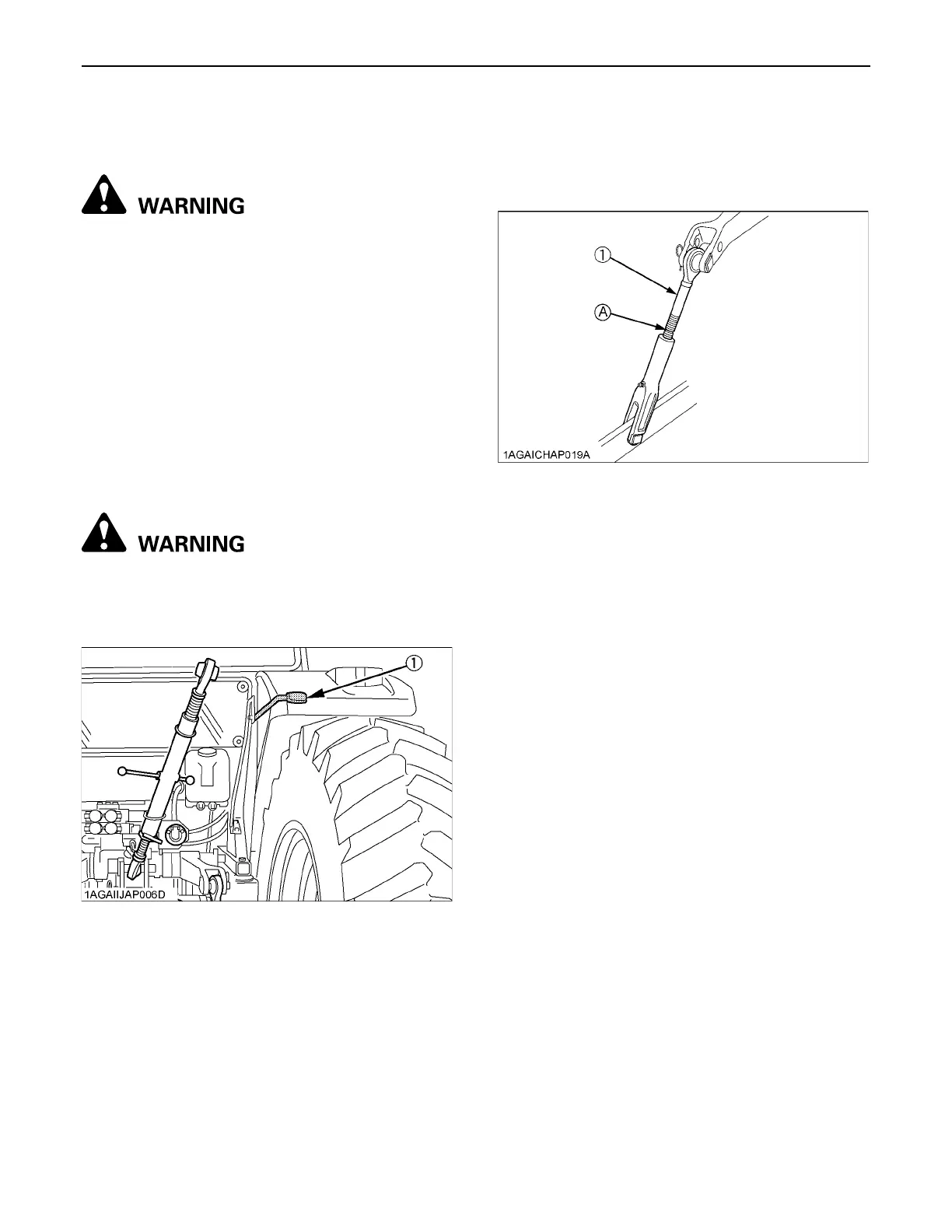

3-POINT HITCH & DRAWBAR40
To avoid personal injury or death:
A Be sure to stop the engine.
A Do not stand between tractor and implement
unless parking brake is applied.
A Before attaching or detaching implement,
locate the tractor and implement on a firm level
surface.
A Whenever an implement or other attachment is
connected to the tractor 3-point hitch, check
full range of operation for interference, binding
or PTO separation.
A Do not exceed maximum allowable length of
either lifting rod, or the lifting rod will come
apart and the 3-point equipment may fall.
BRemote Hitch UP / DOWN Lever
A Do not use the Remote hitch up / down lever when
the implement is attached on the 3-point hitch.
This lever is used to raise and lower the 3-point hitch for
aligning the arm with the implement only.
BLifting Rod (Left)
By turning the rod itself, the lifting rod varies its length.
When extending the rod, do not exceed the groove on the
rod thread.
2. Attaching and detaching implements
(1) Remote hitch up / down lever
(1) Lifting rod (A) "GROOVE"
